Juice and milk plate sterilizer and pasteurizer
- 20 Set / Sets per Month
- NINGBO
- T/T
- 350m3/h New Air Volume Bidirectional full heat exchange fresh air machine with Full touch LCD
- Ship Engine High Viscosity Oil Duplex Oil Cooler
- Marine Engine Oil Condenser
- Stainless Steel Horizontal Marine Engine Oil Cooler
- Marine Engine Pressure Vessel Lube Oil Cooler
- Marine Engine Lube Oil High Pressure Tube Oil Cooler
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Dafo |
Model Number: | plate pasteurizer | Processing Types: | Juice | Voltage: | 380V |
Power(W): | 2.5-22.5KW | Weight: | 1220kg | Dimension(L*W*H): | 1640*630*1794mm |
Certification: | ISO9001:2008 | Warranty: | 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

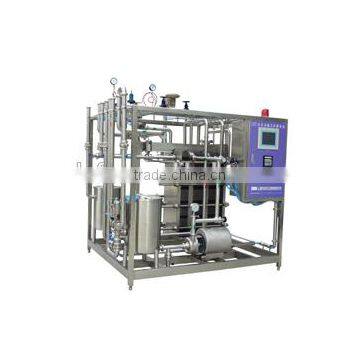

Plate pasteurizer
1.used for sterilization for milk, juice and ice cream etc.
2.the temperature can be set by .
Technical Parameter of plate pasteurizer:
5→65(homogenization)→85(15S) →5
Production capacity: 500L-20T/H
This unit can be connected with separator, homogenizer, flash evaporator & degasser etc. This unit is used as Pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream etc.), and also pre-sterilize material when producing Pasteurized milk (long life milk).
This machine has features of high heat recovery, lower energy cost, strict design on the construction and easy operation, simple maintenance.
We have Control types of full-automatic control (PLC with touch screen) and semi automatic PID
Standard attachments:
A. plate heat exchanger; B. material-balance bucket;
C. hot water-balance drum; D. hot water pump; E. product pump;
F. steam & water mixer; G. electricity box;
H. stainless steel pipes and valves etc. I.PLC and color touch screen or PID

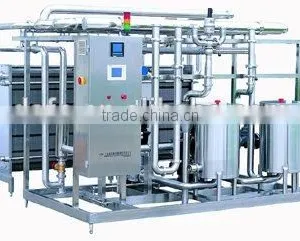

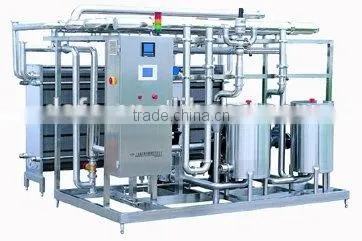

juice and milk plate pasteurizer and sterilizer
plate pasteurizer is mainly applicable for processing (sterilizing, insulating and cooling) heat sensitive liquids, such as fruit juice, tea, milk and some wine products.
It has features of high heat efficiency, compact structure, convenient in operation and maintenance. pasterizer
This sterilizer equips with sanitary pumps, buffer tank, hot water system, temperature controller/recorder and electric control system.juice and milk plate pasteurizer/sterilizer .plate sterilizer,milk plate sterilizer,plate type pasteurizer
Working condition | |||||||||||||
Material capacity | 1t/h | Temperature of material in | 5°C | Temperature of ice water in | 2°C |
|
| ||||||
Designing requirements | |||||||||||||
Sterilizing temperature | 90°C | Heat preservation period | 30s | Temperature of material outlet | 5°C | ||||||||
| |||||||||||||
Main technical parameter | |||||||||||||
Name | Technical parameter | Name | Technical parameter | ||||||||||
Equipment model | BR16-1T | Steam consumption | 40KGS/hour | ||||||||||
Heat exchanging area | 8square meter | Diameter of material inlet and outlet | 38 | ||||||||||
Plates material | 304 | Diameter of ice water inlet and outlet | 32 | ||||||||||
Sterilizing temperature | Automatic controlling and recording | Ice water consumption | 3t/h | ||||||||||
Returning valve working state | High temperature alarm, low temperature returning(automatic ) | Controlling precision | Within ±1°C | ||||||||||
Pressure of compressed air | Over 6bars | electric power | 3.6KW | ||||||||||
weight | 1.2t | Outline dimension | 1600(length)×1400(width)×1800(height ) |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
