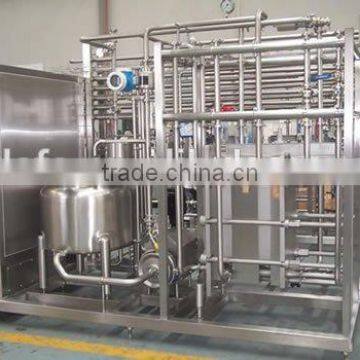

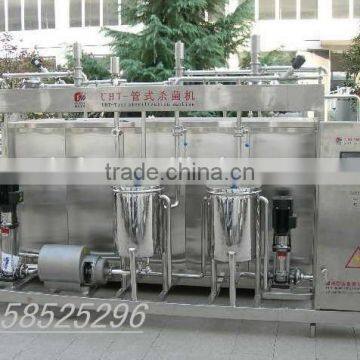

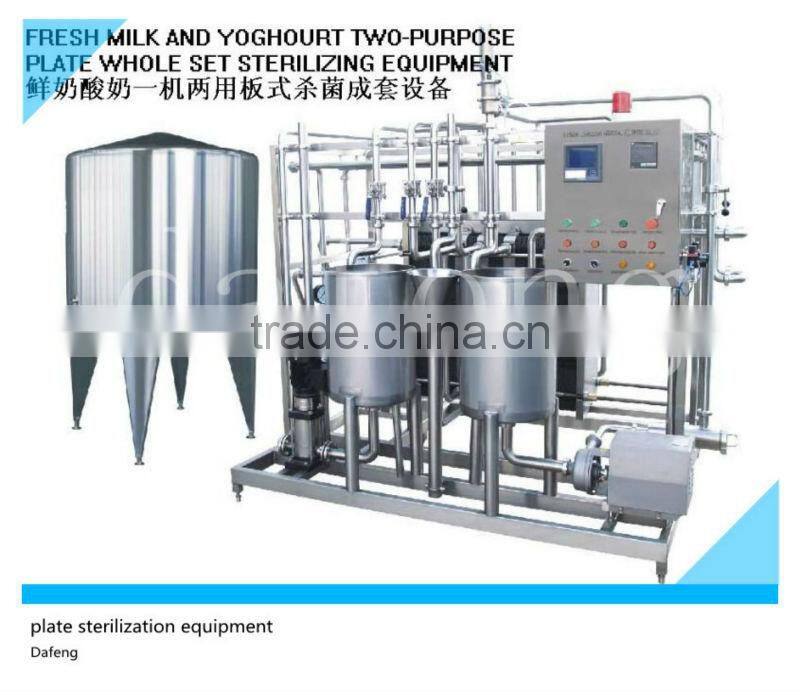

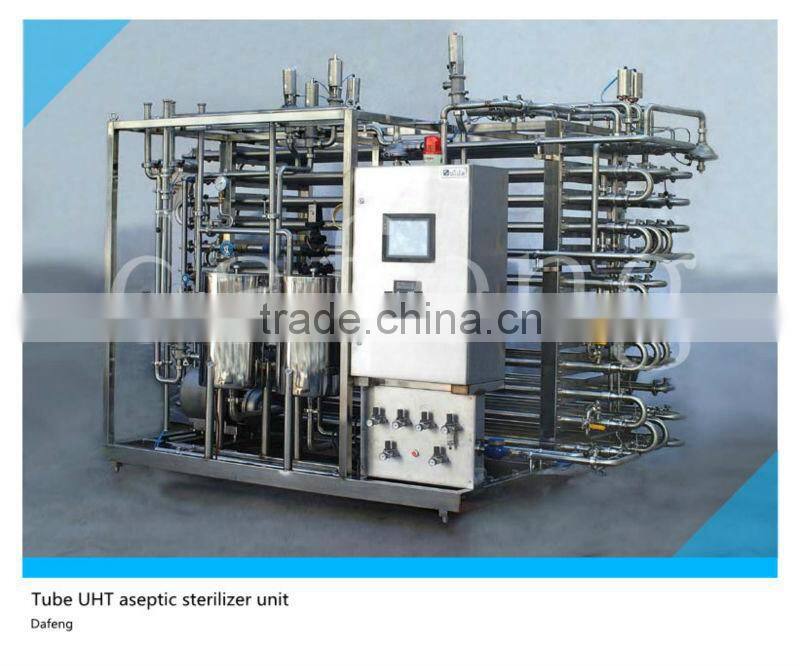

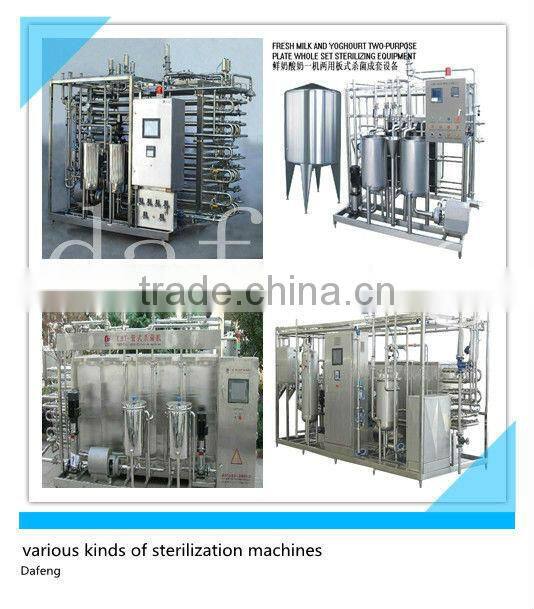

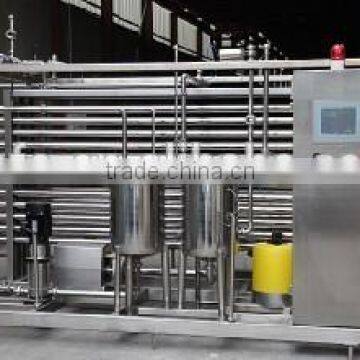

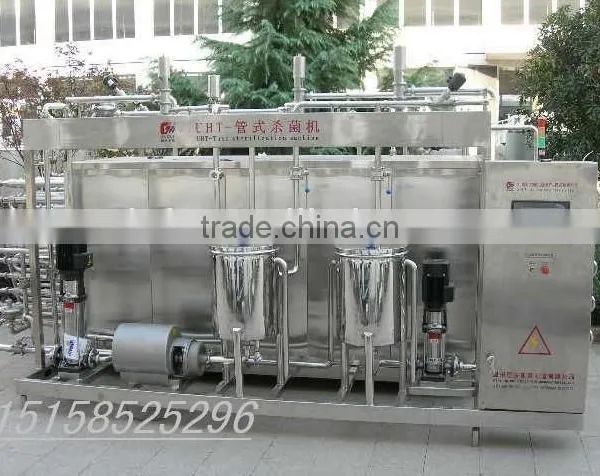

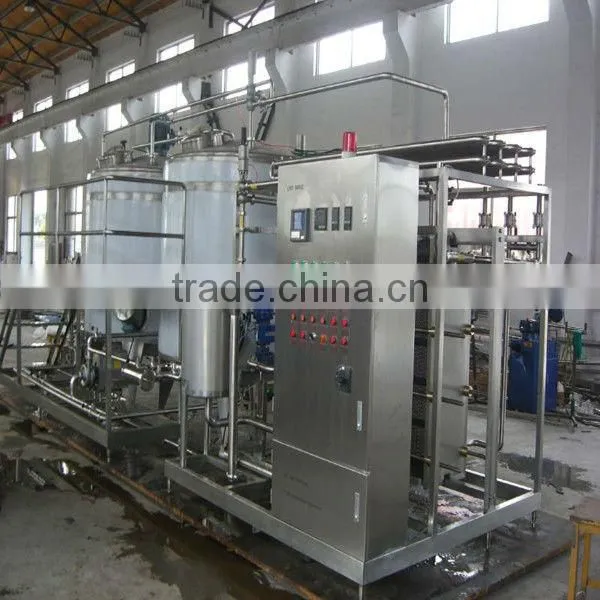

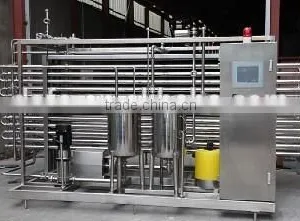

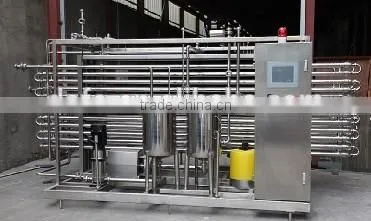

Tube type mini milk pasteurizer machine
This Sterilizer is the ideal equipment for liquid food sterilization, such as milk, yoghurt, juice etc.
Main Configuration:
This unit is mainly composed of material system, high temperature hot water system, degassing system (optional), high pressure homogenization system(optional),CIP system, self-sterilizing aseptic system(optional) and control system and other system components.
Features:
1.The equipment is automatically controlled by computer with LCD touch screen operation.
2. Instantaneous processing maintain the original flavor of the products.
3. PID temperature control system, sterilization temperature recorded continuously in real time.
4. The products produced by UHT sterilization system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain.
5.It is suitable for sterile production of fresh milk, pasteurized milk, yogurt, colored milk, juice, tea drinks, wine, ice cream, soy milk, beverage, jam, butter and other products.
6.The huge viscosity range.
7.The use environment PH value is 1-14.
Model | Capacity (t/h) | Steam consumption (kg/h) | Steam pressure (bar) | Electric power (kw) | Body size (L×W×H) | Weight (kg) | Tube diameter(Φ) | ||
Material | Steam | Medium | |||||||
DF-UHT-NN-1 | 1 | 40 | 6.0 | 4.0 | 3.3×1.6×1.8 | 1960 | 25 | DN25 | 25 |
DF-UHT-NN-1.5 | 1.5 | 60 | 6.0 | 4.0 | 3.3×1.6×1.8 | 1960 | 25 | DN25 | 25 |
DF-UHT-NN-2 | 2 | 80 | 6.0 | 6.0 | 3.5×1.8×2.0 | 2160 | 38 | DN25 | 38 |
DF-UHT-NN-3 | 3 | 120 | 6.0 | 6.0 | 4.5×1.8×2.0 | 2420 | 38 | DN25 | 38 |
DF-UHT-NN-4 | 4 | 160 | 6.0 | 7.0 | 4.5×2.0×2.0 | 2570 | 38 | DN32 | 38 |
DF-UHT-NN-5 | 5 | 200 | 6.0 | 7.0 | 4.5×2.0×2.0 | 2940 | 38 | DN32 | 38 |
DF-UHT-NN-6 | 6 | 240 | 6.0 | 7.0 | 4.5×2.0×2.2 | 3300 | 51 | DN40 | 51 |
DF-UHT-NN-8 | 8 | 320 | 6.0 | 11.0 | 6.5×2.0×2.2 | 3700 | 51 | DN50 | 51 |
DF-UHT-NN-10 | 10 | 400 | 6.0 | 11.0 | 6.5×2.0×2.2 | 4200 | 51 | DN50 | 51 |
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
