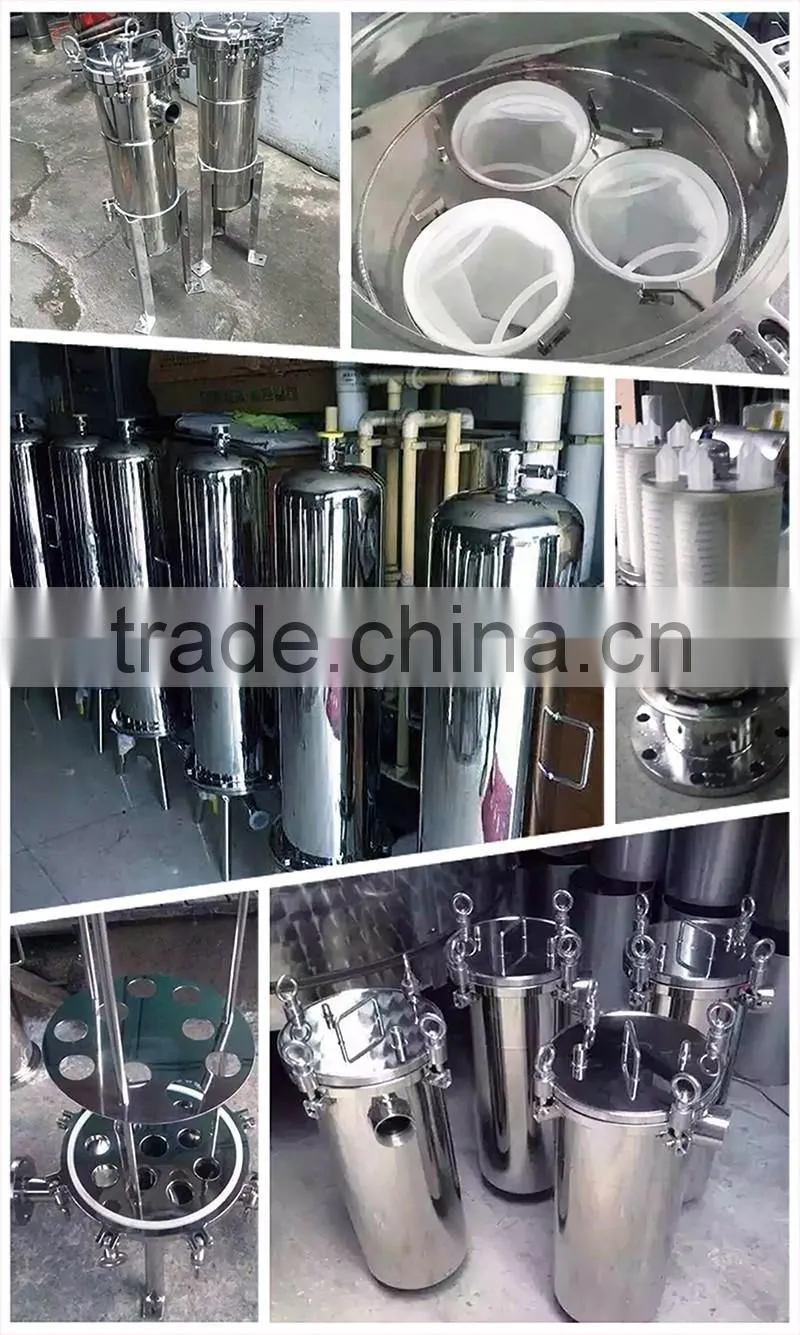

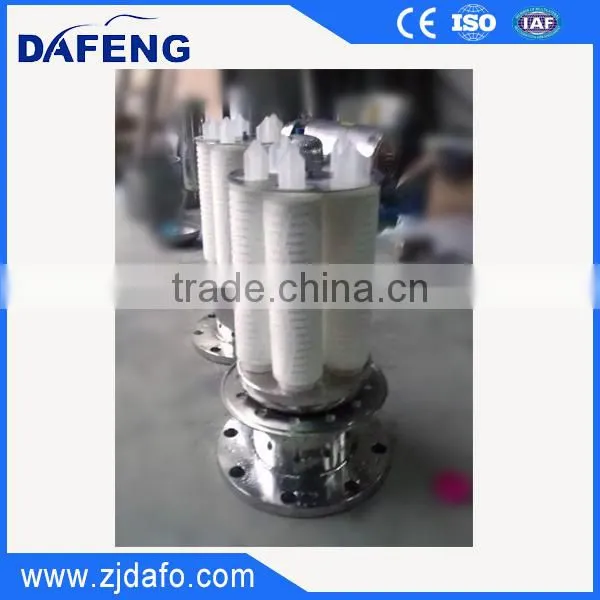

1.High quality stainless steel multi and single ss liquid bag filter housing
Description >>

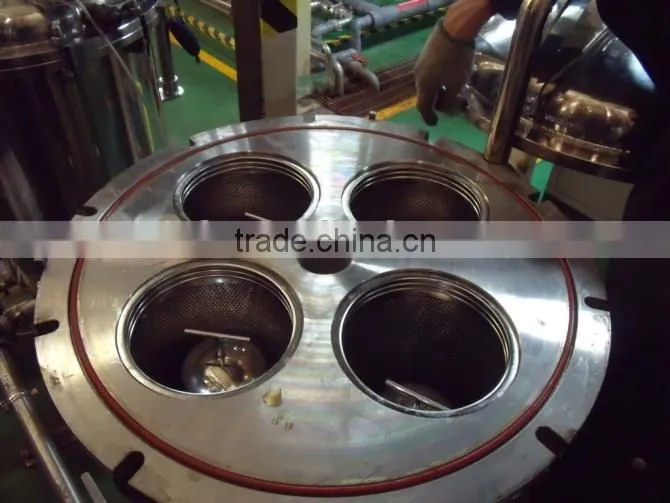

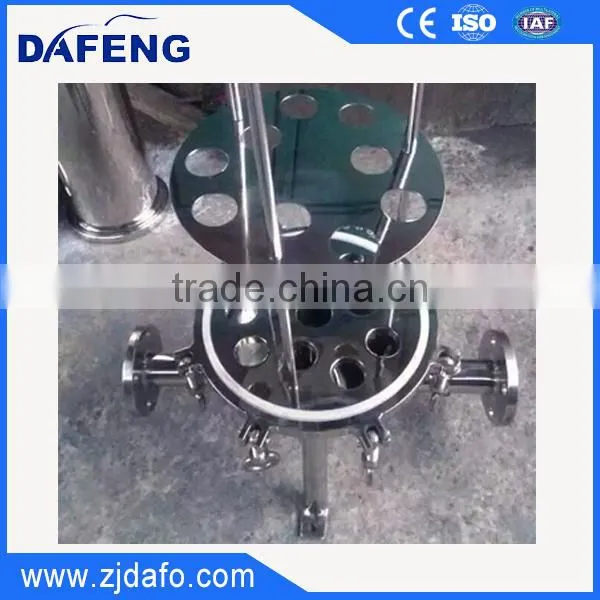

DFseries multi-bag filter housing features a cost effective, handwheel operated, davit cover. Loosen the swing bolts, turn the davit handwheel and swing the cover aside.
Standard GB150 ,”CS ” or ASME.

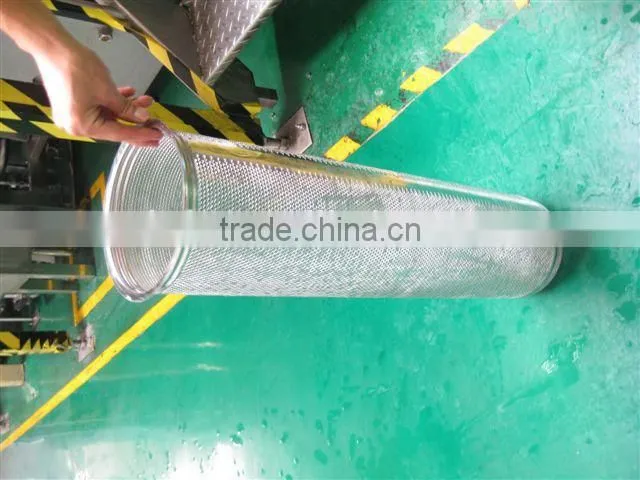

Tapered, electro-polished stainless steel perforated baskets.
Unique 3-point hold-down ensure high quality of seal between each filter bag and housing body. Simple design ,ensures simple, effective operation.
Rugged, simple handwheel-operated davit cover makes the HD perfect for cost sensitive applications.
Hydraulic-assist davit cover is available as an option.
Positive O-ring sealing provides easy, reliable operation.
Available PP,rubber ,PTFE etc. lining ,carbon steel and 304,316L stainless steel for high corrosion resistance.
standard sizes with 2 through to 24 bag housings are available for size 02 filter bags.
Features >>
Hand wheel operated davit cover
Positive bag hold downs
Up to 24 bags per housing
Positive O ring seal
Benefits >>
Rugged, reliable and very cost effective.
Perfect bag to housing sealing for no by-pass
Can handle very high flow rate / high dirt load applications
No external leakage
Technical Specification
| Name | Inner surface |
| max operate pressure | 1.0 |
| max operate temp | 110 |
| pressure tolerance on weld | 0.85 |
| corrosion by acid | 0 |
Main Parameters
| Item |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
| DS-4P2S | 1950 | 1000 | 550 | 250 |
| DS-6P2S | 2140 | 1000 | 700 | 250 |
| DS-8P2S | 2560 | 1000 | 800 | 250 |
| DS-10P2S | 2600 | 1000 | 1000 | 250 |
| DS-12P2S | 2650 | 1000 | 1100 | 250 |
| BM-4P2S | 1700 | 750 | 600 | 200 |
| BM-6P2S | 1900 | 750 | 750 | 200 |
| BM-8P2S | 2450 | 750 | 1150 | 200 |
2.Multi bag filter specification
| DS-S2 | DS-S3 | DS-S4 | DS-S5 | DS-S6 | DS-S8 | DS-S9 | DS-S10 | |
| DN | 65 | 80 | 100 | 125 | 150 | 150 | 200 | 200 |
| FLOW RANGE m3/hr | 50 | 75 | 100 | 125 | 150 | 200 | 225 | 250 |
| FILTRATION AREA m2 | 0.9 | 1.35 | 1.8 | 2.25 | 2.7 | 3.6 | 4.05 | 4.5 |
| φD mm | 450 | 500 | 550 | 600 | 700 | 750 | 800 | 900 |
| H1 mm | 450 | 460 | 480 | 500 | 650 | 640 | 670 | 800 |
| H2 mm | 940 | 930 | 920 | 915 | 910 | 925 | 900 | 115 |
| H3 mm | 1090 | 1045 | 1125 | 1140 | 1215 | 1225 | 1240 | 1400 |
| H4 mm | 1265 | 1300 | 1325 | 1340 | 1445 | 1470 | 1505 | 1685 |
| L1 mm | 325 | 350 | 375 | 415 | 470 | 500 | 550 | 630 |
3.Multi bag filter Application
Food&beverage wine industry and meet sanitary grade requirement
Petrochemical,chemical industry
Biopharmaceutical industry/Environmental
Printing,furniture industry

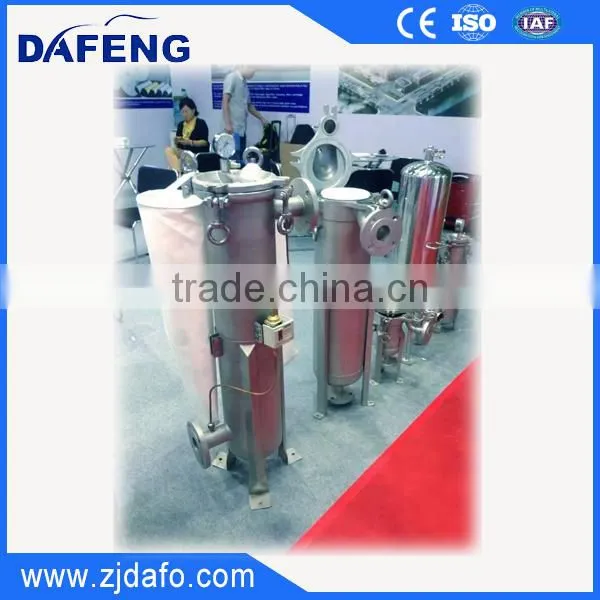

4.Single bag filter housing
Description >>

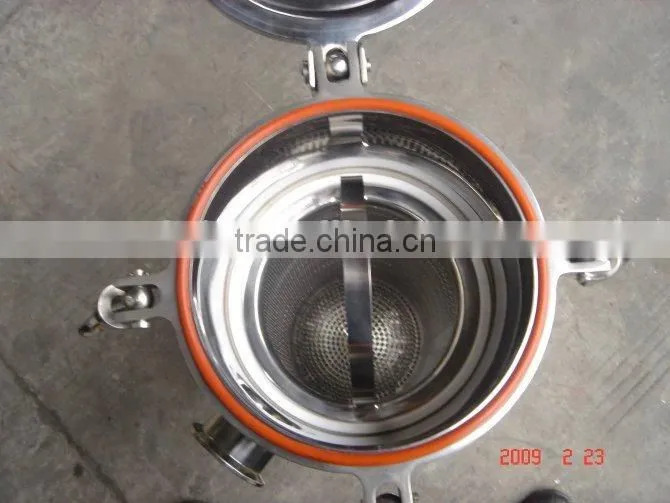

Bag filter is often characteristic of high flow rate and long service life. It consists of stainless steel housing, bag holder and filters.
The bag filter housing is made of SS304 or 316L. With different sizes, it is capable of holding 1 to 8 bags. The opening can be flange type or screw type.
Bags filter housing with capacities of up to 24 bags.
The cover flange adopt handwheel and swing bolts ,open and close easily ,fast bag changeouts.
Positive o-ring sealing offers easy and safe operation.
Liquid bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,#3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Model selection >>
5.Single bag filter housing Specification
DF-1series Clamp single bag filter >>
Clamp single bag filter is suitable for low pessure condition, which is an economic choice.
| Model | A(mm) | B(mm) | C(mm) | D(mm) | F(mm) | In/Out |
| DF-I-1 | 500 | 380 | 700 | φ200 | φ170 | 1"-4" |
| DF-I-2 | 700 | 720 | 1050 | φ200 | φ170 | 1"-4" |
| DF-I-3 | 350 | 190 | 400 | φ114 | φ97 | 3/4"-2" |
| DF-I-4 | 500 | 340 | 540 | φ114 | φ97 | 3/4"-2" |
DF II series Side-in single bag filter >>
Side-in single bag filter is the standard type filter of Inoco, with easy open type, which is commenly used in filtration field.
| DF-II | |
| L1 mm | 190 |
| ΦD mm | 219 |
| H1 mm | 1035 |
| H2 mm | 1500 |
| DN | 50 |
| FLOW RANGE m3/hr | 25 |
| FILTRATION AREA m2 | 0.45 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
