Specifications
small bottled water production line1.capacity:3000bph~15000bph
2.filling size:250ml~2500ml
3.drinking water filtration
Turn-key mineral water production line
The complete mineral water production line start from raw water analysis to treatment, sterilization and packaging.
This is a turnkey project for drinking water treatment.
We can offer you a whole solution from raw water treatment, through sterilization to packaging.
they are specilized for surface water treatment such as sea, lake and river water as well as undergroung water.
Our company can design customized mineral water production lines in accordance to the customers' requirements,capacity
varies from 1000L/h to 10000L/h according to customer's need.

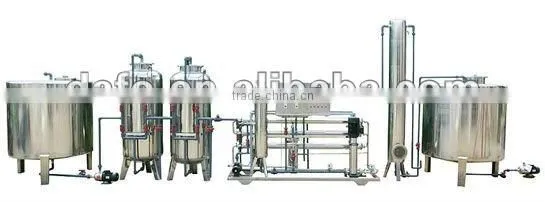

The system is used for mineral water bottling line. It consists of pre-treatment filtration, RO system, Ozone sterilization system etc. If for bottling line, filling system, packing system also will be included.
The production line can be adjusted according to different raw water quality, to make much nice taste of product water, to meet the different requirement of bottle water market.
2.The process production line contains main equipment as below
WATER RESOURCE
PUMP
FERROMANGANESE FILTER
ATMOLYZER FILTER
HOLLOW SUPER-FILTER
ATMORTIZE TANK
PUMP
ULTRIVOLE RAYS STERILIZER
TERMINAL FILTER ASEPSTS
WATER CONTAINER
BOTTLE WASHER FILLER
SEALER
MARKS SPRAYER
CONVEYOR
HEAT SHRINK FILM CONTRACTOR

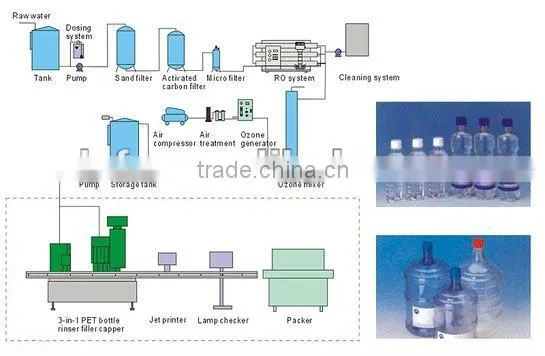

Diagram reference
3.Technical paramters reference
Model |
For Bottle Size |
Output (as per 0.5L bottle) |
Intake Water Flow |
Rinsing Water Flow |
Power Spec. |
Power Rate (KW) |
Working Area required (m2) |
M-3000 |
200ml to 2000ml |
3000b/h |
4000L/H |
1000L/H |
220V/380V 50/60Hz 3Phase |
13 |
20 |
M-5000 |
5000b/h |
6000L/H |
1500L/H |
15 |
30 |
||
M-9000 |
9000b/h |
10000L/H |
2500L/H |
20 |
40 |
||
M-12000 |
12000b/h |
13000L/H |
3000L/H |
28 |
55 |
||
M-60B |
5gallon bucket |
60b/h |
3000L/H |
400L/H |
14 |
20 |
|
M-100B |
100b/h |
4000L/H |
800L/H |
15 |
25 |
||
M-250B |
250b/h |
10000L/H |
2500L/H |
22 |
40 |
||
M-450B |
450b/h |
16000L/H |
3000L/H |
30 |
60 |
4.Package machines
offer best water bottling plant OEM, ODM,service.
Washer-filler-capper-3in 1
