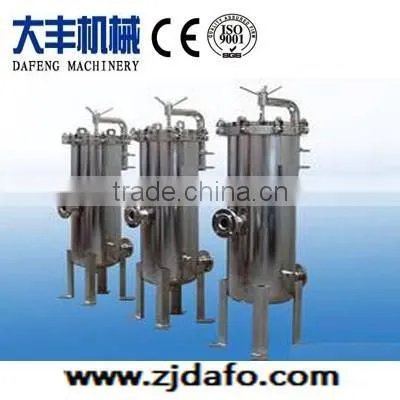

Help CenterIndustrial Cartridge Filter Housing
Related Products
-
Big Flow Filter Multi Bags Filter HousingNegotiableMOQ: 1 Set -
High Flow Multi Bags Filter,multi Bags Filter Housing,US$ 200 - 900MOQ: 1 Set
-
Bag Filter for JuiceUS$ 500 - 900MOQ: 1 Set
-
One Clamp Bag Filtrate HousingsUS$ 100 - 5,000MOQ: 1 Set
-
Big Flow Filter /4bags /multi Bags Filter HousingUS$ 200 - 900MOQ: 1 Set
Our Company,Zhejiang DAFENG LIGHT MACHINERY,licensed by both Pressure vessels(class D),Product CE cerfticate and ISO9001:2000 international quality system certificate.
Seves the International community primarily in the export of stainless steel Fluid equipment,tanks,filters etc.We understand the Chinese market,many Customs requirements and Chinese government regulations for import.We give each customer exclusive rights to their own taste,label,we create for them and offer assistance in sales and marketing strategies to build their business.
Product Description
Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as waterbeverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags
or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature

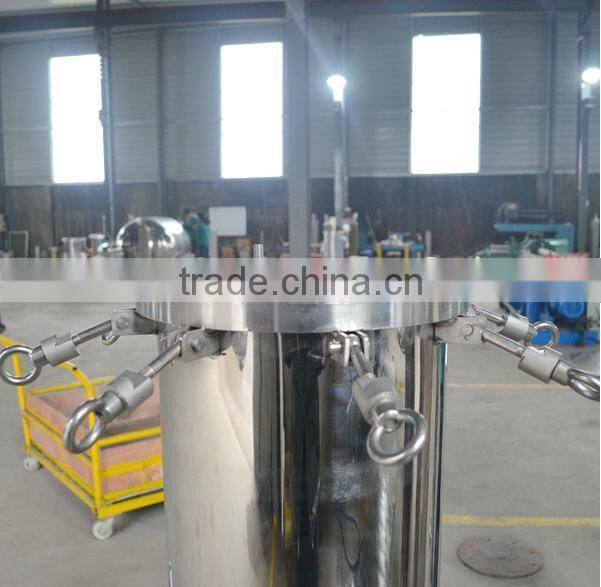

effective filtering area is rather big,achieving more efficient filtering result;Eye Bolt Closure System-The user friendly,cost effective bag filter housing for high volume,multiple applications and processes.The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Technical specification
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry, Electronic Industry and
So On.
Bag filter characteristics
1. A unique filter design techniques, to be effective in preventing filter bag filter trap into the basket, ensure
100% without spills.
2. Basket laid by the computer, the high-intensity laser drilling stainless steel plate, with rarely fixtures
material s after moldingm polishing,
3. Compact size and reasonable. Installation and operation is simple and convenient , the site is smaller.
4. Filtration with high precision, it applies to any suspension or fine particulate material, the filters range from
1~800 micron;
5. Dealing with a larger flow filtration unit area, the smaller filtration resistance, high filtration efficiency. Function
of one filter bag is 5-10 times than filter core of the same type, which can greatly reduce costs.
Flow design can meet the requirements of 1~500m3/h, down low the manufacture cost;
6. A wide range of uses, can be used for coarse filtration, middle Filter or accuracy filter; It comes to lower
investment cost, long life and low cost when achieve the same results in the circumstances compared with
Pre-filter water filtration and precision machines and other equipment
7. In the same rational structure and operation of low-cost, effectiveness and capacity of the filter, Bag filters takes lower price than foreign imports.
