Help CenterStainless Steel Multi Bags Filter for Water Treatment
Related Products
Specifications
1,Type:stainless steel multi-bags filter for water treatment
2,No.:2-24 bags.
3,material: CS, SUS 304 or 316L
1,Multi-bags filter
Description >>

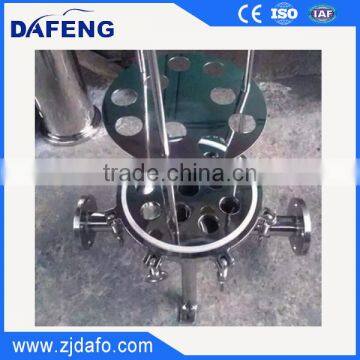

DF multi-bag filter housing features a cost effective, handwheel operated, davit cover. Loosen the swing bolts, turn the davit handwheel and swing the cover aside.
Standard GB150 ,”CS ” or ASME.
Tapered, electro-polished stainless steel perforated baskets.
Unique 3-point hold-down ensure high quality of seal between each filter bag and housing body. Simple design ,ensures simple, effective operation.
Rugged, simple handwheel-operated davit cover makes the HD perfect for cost sensitive applications.
Hydraulic-assist davit cover is available as an option.
Positive O-ring sealing provides easy, reliable operation.
Available PP,rubber ,PTFE etc. lining ,carbon steel and 304,316L stainless steel for high corrosion resistance.
standard sizes with 2 through to 24 bag housings are available for size 02 filter bags.
Features >>
Hand wheel operated davit cover
Positive bag hold downs
Up to 24 bags per housing
Positive O ring seal
Benefits >>
Rugged, reliable and very cost effective.
Perfect bag to housing sealing for no by-pass
Can handle very high flow rate / high dirt load applications
No external leakage
2,Multi-bags filter Specification
Many bags filter parameter
Model | Filter diameter | Filter bag quantity | Filter area | Inlet and outlet diameter | Treat liquid capacity(m3/H) | Withstand pressure MPA |
DF02-2# | φ400 | 2 | 1m2 | DN80mm | 80 | 0.6-1.6 MPA |
DF03-2# | φ500 | 3 | 1m2 | DN100mm | 120 | 0.6-1.6 MPA |
DF04-2# | φ600 | 4 | 2m2 | DN125mm | 160 | 0.6-1.6 MPA |
DF05-2# | φ650 | 5 | 2.5m2 | DN125mm | 200 | 0.6-1.6 MPA |
DF06-2# | φ700 | 6 | 3m2 | DN150mm | 240 | 0.6-1.6 MPA |
DF08-2# | φ800 | 8 | 4m2 | DN200mm | 320 | 0.6-1.6 MPA |
DF10-2# | φ1000 | 10 | 5m2 | DN250mm | 400 | 0.6-1.6 MPA |
DF12-2# | φ1000 | 12 | 6m2 | DN250mm | 480 | 0.6-1.6 MPA |
DF16-2# | φ1200 | 16 | 8m2 | DN300mm | 640 | 0.6-1.6 MPA |
DF20-2# | φ1400 | 20 | 10m2 | DN300mm | 800 | 0.6-1.6 MPA |
DF24-2# | φ1400 | 24 | 12m2 | DN350mm | 1000 | 0.6-1.6 MPA |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Shipment
