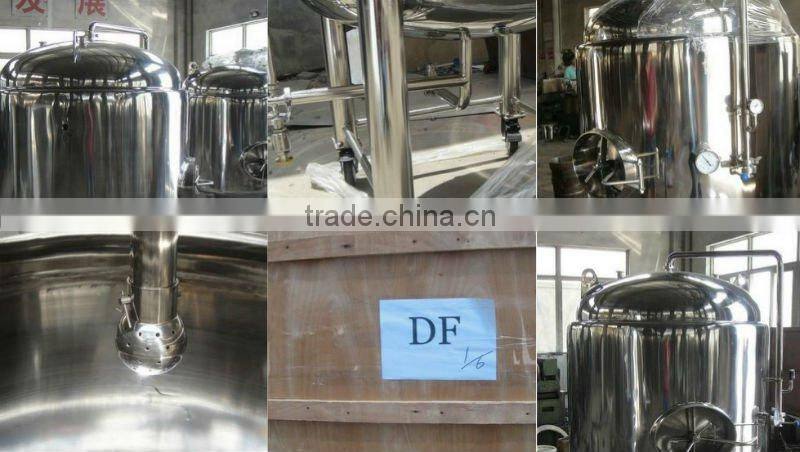

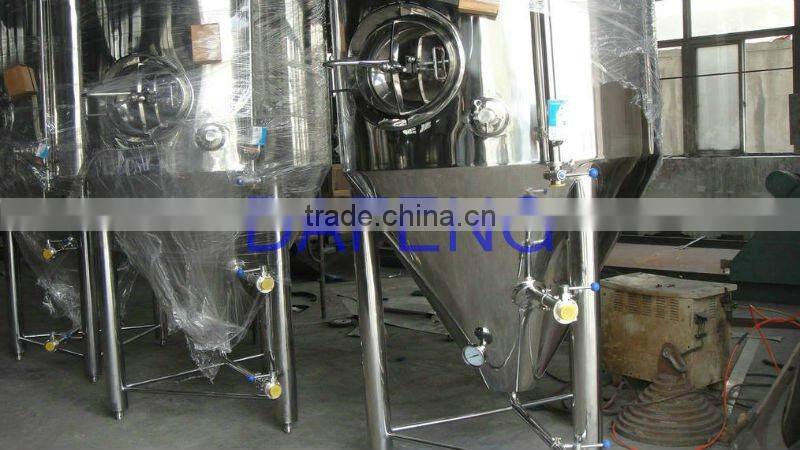

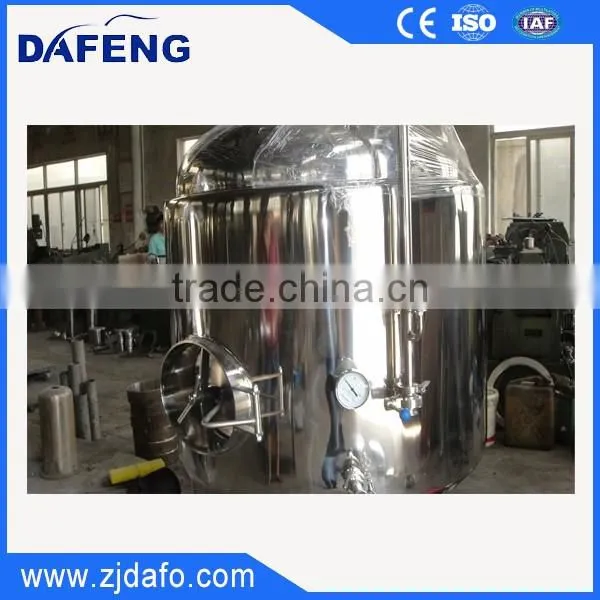

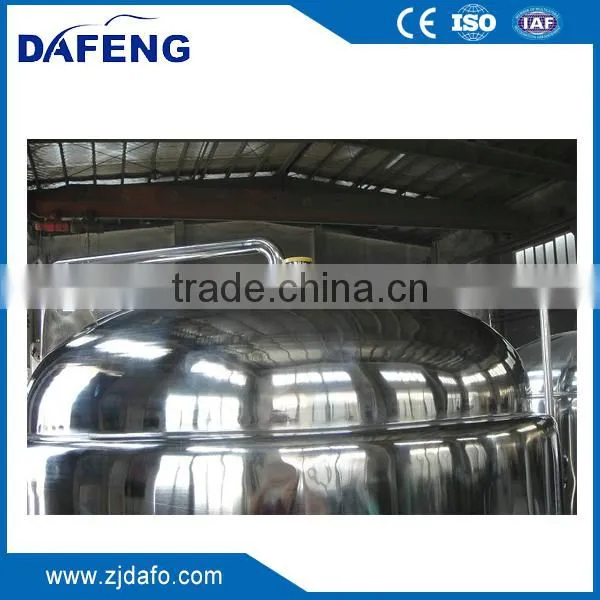

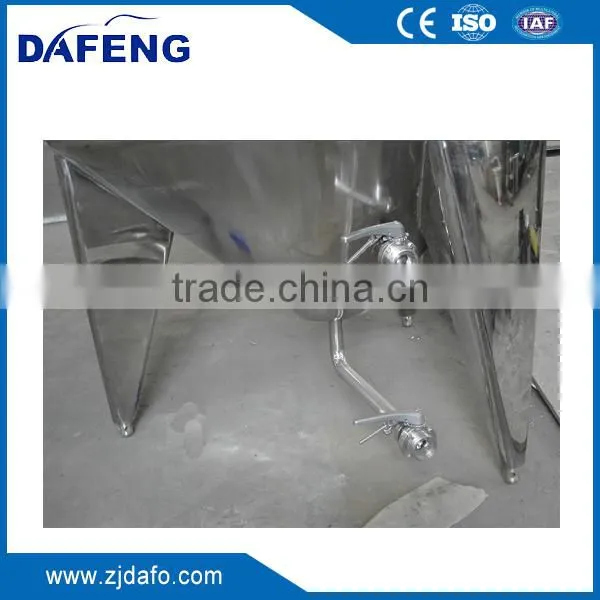

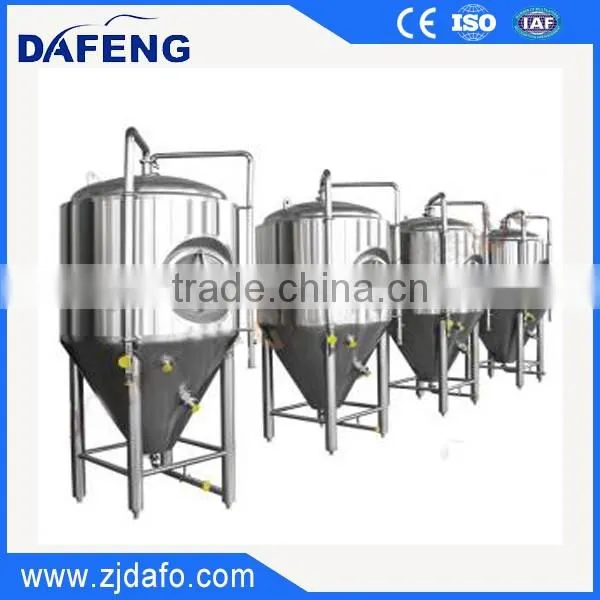

SUS304 1000L Cooling jacketed beer fermentation tank
CE 2000 and ISO 9001 certificate.
This Fermentation Tank( seed tank, crystallizing tank) is widely applied in beer fermentation,beverage, pharmacy, fine chemical engineering and biological engineering industries.
1) The tank body has interlayer and heat-insulating layer (for heating, cooling or heat insulating) The tank body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm.
2) It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.
3) It is equipped with devices including air respirator, cleaning ball, sanitation inlet, viewing mirror, and viewing lamp. The fermentation process of Pharmacy, fine chemical engineering and biological products is aseptic and untainted.
4) Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling.
NO. | Name | Function | Remark |
UNIT 1 | Grain miller | Grain crushing | Necessary |
UNIT 2 | Flexible Auger | Conveyor the malt from miller to mash tun | Optional |
UNIT 3 | Brew house | Grain mashing, lautering, wort boiling, whirlpool, hot water supply | Necessary |
UNIT 4 | Fermentation Tank(CCT) | Wort Fermentation or maturation | Necessary |
UNIT 5 | Filtration Unit | Beer filtration | Optional |
UNIT 6 | Bright Beer Tank (BBT) | Beer maturation/conditioning /serving/filtered beer receiving | Optional |
UNIT 7 | Glycol Cooling Unit | Glycol water supply for wort, cooling and fermentation cooling | Necessary |
UNIT 8 | Controlling Unit | Brewhouse controlling Fermenter controlling Bright beer tank controlling | Necessary |
UNIT 9 | CIP Unit | Supply caustic liquid and sterilization liquid for all tanks cleaning | Necessary |
UNIT 10 | Keg Filler and Washer | Filling kegs and washing kegs | Optional |
UNIT 11 | Bottling Machine | Rinsing/Filling/Capping/Labeling bottles | Optional |
UNIT 12 | Assisting purchased facilities | Water treating equipment Steam Boiler, burnerKegs, etc. | Optional |
2.TECHNICAL SPECIFICATION
| Inner surface | S.S.304,WELL POLISHED,polishing precision≤0.4µm,THK:2-4mm |
| Outside surface | S.S.304,frosted or mirror,THK:1.5-3mm |
| Top shape | Seal head or conical head |
| Conical degree | 60-90°c |

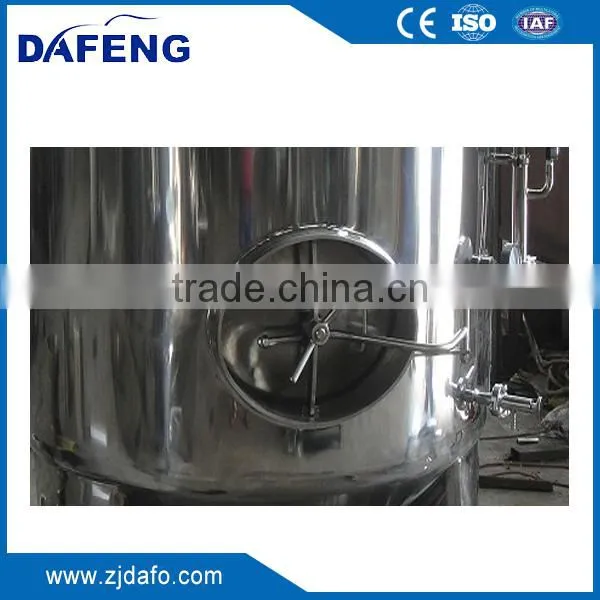

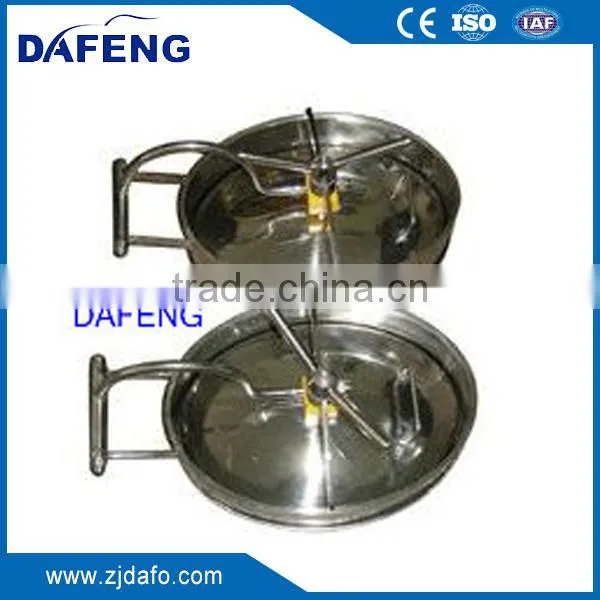

| Manhole location | Side upward/side/flanged |
| Insulation | Material:PU,THK:50-100mm |
| Cooling jackets | DIMPLED cooling jackets at bottom and side wall. |
| Spray ball | Located in the center of inside of the tank |
| Pressure | 0.2MPa |
| Thermometer | Bi-metal thermometer |
| Legs | 3/4 round legs,can designed to be adjustable |
| The ratio of working volume to gross volume | 4/5 |
| Operational method | Automatic or manual |
| Technology processing | Argon-arc welding,well weld in double sides. |
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Advanced Technology Co., Ltd Wenzhou is the a professional beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture the brewing equipment. we can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D etc.
Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At Advanced Tech., we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
