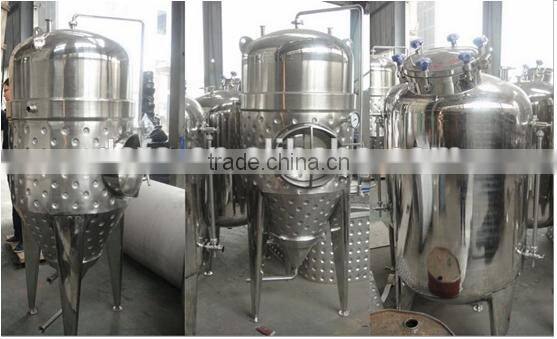

400L Stainless Steel Conical Fermenter
CE 2000 and ISO 9001 certificate.
♦Description
Capacity:400L (+25% Headspace minimum)
Standard Configuration: Fermenter, Controlling Unit, Glycol Cooling Unit
Interior Shell: SUS304 ; TH=3mm
Exterior Shell:SUS304 ; TH=2mm
Interior Finish: Overall polishing to 0.4-0.6 μm without dead corner
Insulation: Polyurethane; TH=60mm

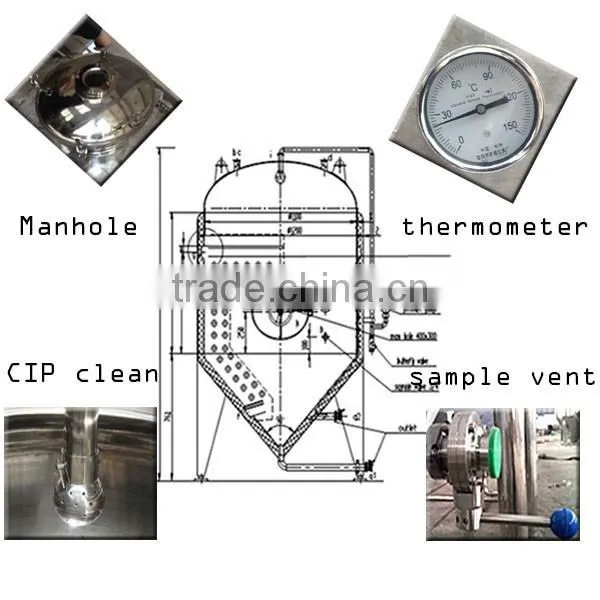

Sanitary manway on top and 60 degree cone bottom
CIP arm with 360° coverage CIP spraying ball Full sanitary sampling valve
3pcs completely SUS304 heavy duty legs with leveling pad and legs support
♦TECHNICAL SPECIFICATION
| Inner surface | S.S.304,WELL POLISHED,polishing precision≤0.4µm,THK:2-4mm |
| Outside surface | S.S.304,frosted or mirror,THK:1.5-3mm |
| Top shape | Seal head or conical head |
| Conical degree | 60-90°c |
| Manhole location | Side upward/side/flanged |
| Insulation | Material:PU,THK:50-100mm |
| Cooling jackets | DIMPLED cooling jackets at bottom and side wall. |
| Spray ball | Located in the center of inside of the tank |
| Pressure | 0.2MPa |
| Thermometer | Bi-metal thermometer |
| Legs | 3/4 round legs,can designed to be adjustable |
| The ratio of working volume to gross volume | 4/5 |
| Operational method | Automatic or manual |
| Technology processing | Argon-arc welding,well weld in double sides. |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.

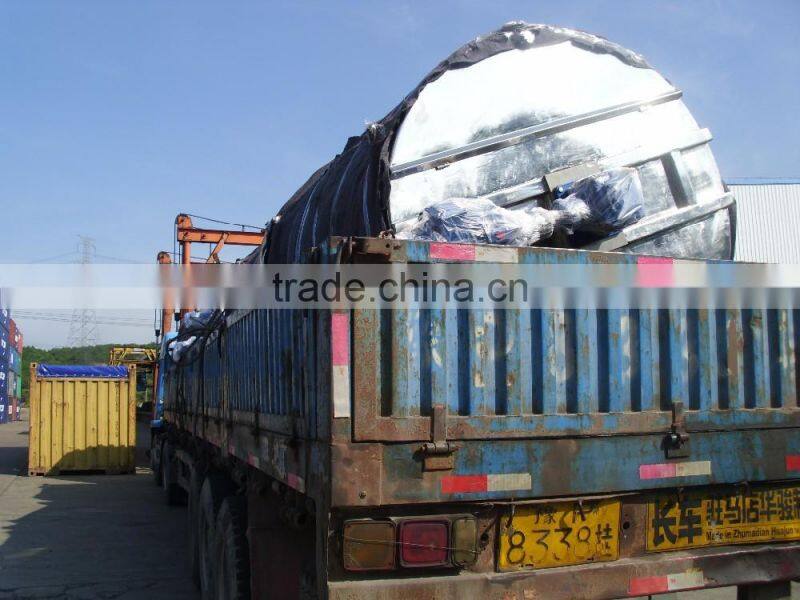

Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
