Commercial Nut Roasting Machine / Peanut Roaster Machine / Coffee Bean Roaster

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Type:

Bean Curd Machine

After-sales Service Provided:

Engineers available to service machinery overseas

XiAn Wisdom Computer Info&tech Co., Ltd

8Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

7 days

Place of Origin China

Type Bean Curd Machine

After-sales Service Provided Engineers available to service machinery overseas

Condition New

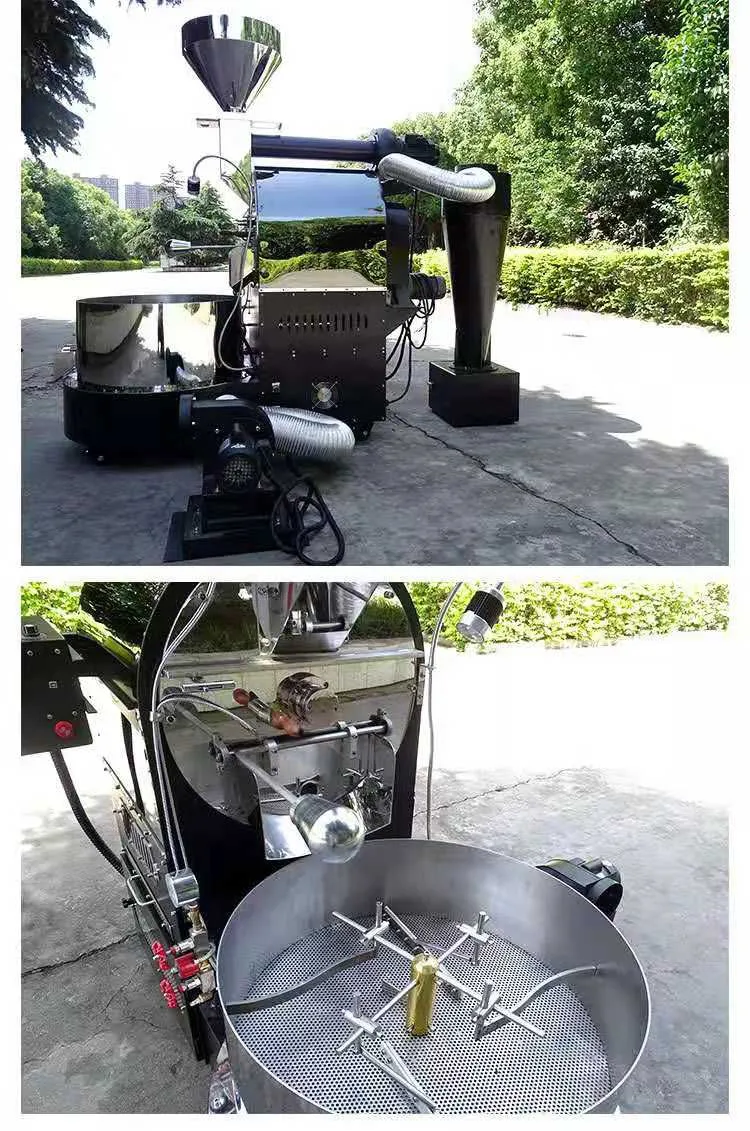

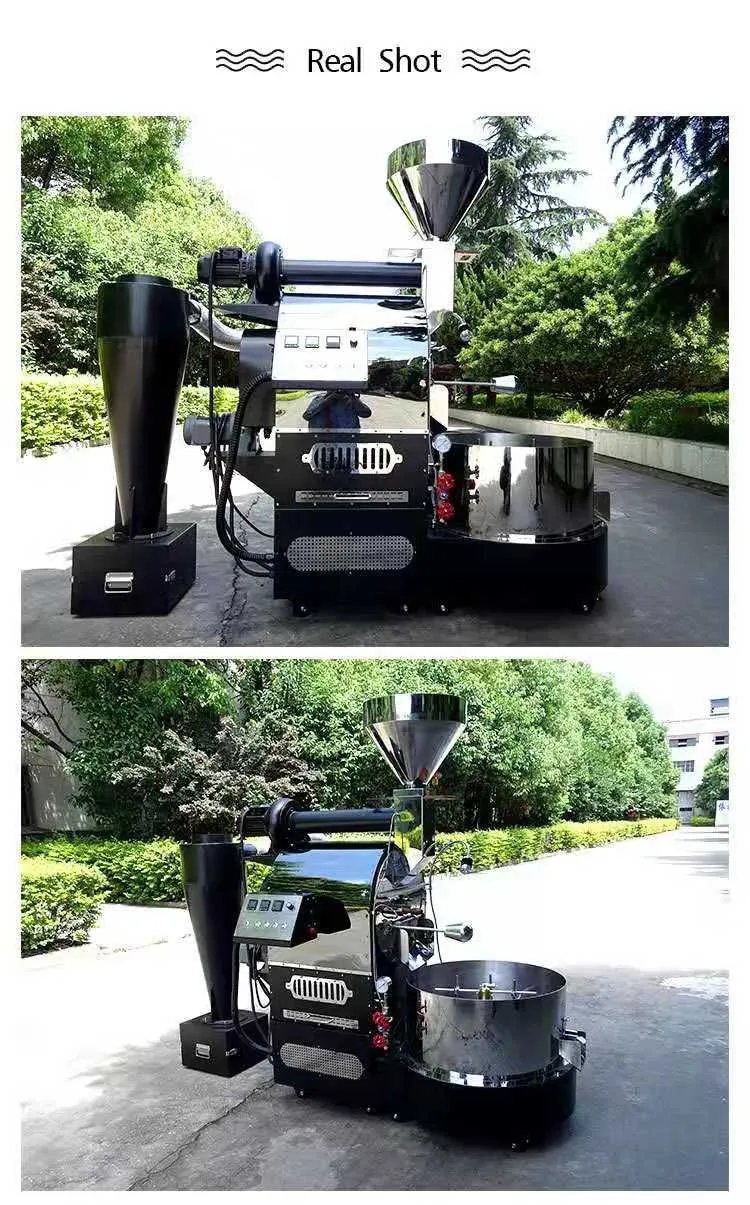

DONGYI DY-12kg coffee roaster (Electric/Gas type)

*1 year sold 2000+ to the world

*Germany technology made by Military production

*Electronic speed governor for HOT AIR [JMC TOP BRAND]

*ADDKA superior motor with OMRON VFD converter speed control [TOP BRAND]

*310SUS double wall drum/cast iron drum option

*Artisan roasting data logging [Bluetooth connect computer]

*25℃+ warm up temperature rate per minute

*Cast Iron gas burner [gas roaster]

*Carbon fiber heating tube [electric roaster]

*CE、ISO9001:2000

Roaster Size	17007201640 mm
Roaster Weight	580kg
Chaff Collector Size	597x1409 mm
Chaff Collector Weight	50 kg
Drum Construction	Double-walled Drum, 310 Stainless Steel, Welded
Batch Size	2-13kg
Average Roasting Time
Power	Single Phase, 220V, 15A, 50-60Hz
Step-Up Transformer	120V to 220V, 1000W
VFD speed control on drum and air motor	OMRON inverter （TOP BRAND）
Drum Motor	400W ADDKA(TOP BRAND)
Exhaust Fan Motor	400W
Cooling Fan Motor	750W
Cooling Tray Stirring Motor	200W ADDKA(TOP BRAND)
Electric roaster add heating power as	18kw 【gas roaster havent】
Fuel Type	LP Gas -or- Natural Gas/Electric
Max. BTU	90,000
Burner Control	Manual Valve
Gas Connection	1/2" NPT
Gas Pressure Required	LP Gas: 7” of water column Natural Gas: 11” of water column
Gas Orifices Size	LP Gas: 0.7 mm (installed at factory) Natural: 0.9 mm (see conversion/instructions)
Max Gas Usage	3.3 lb/hr (1.5 kg/hr)
Typical Roaster Exhaust High Temp	400°F - 450°F
Max Exhaust	600 CFM
Exhaust Venting Type Required	Class III, Positive Pressure
Bluetooth	Modbus CP210/artisan software
Logging Thermocouples	BT, ET, Incoming Air
