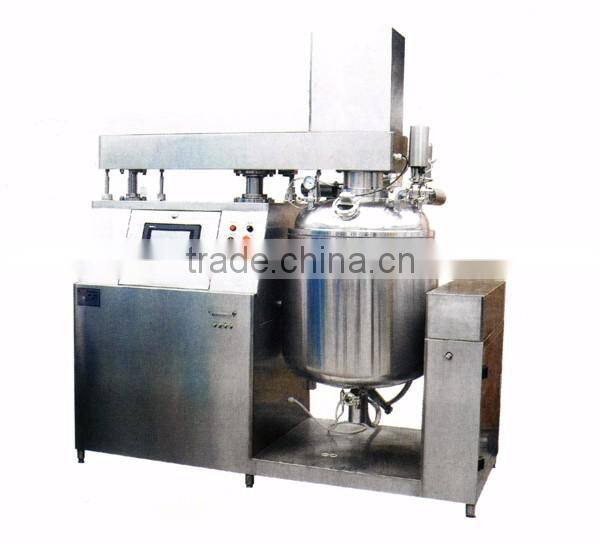

Shampoo Mixing Machine

                                                                                             Shampoo Mixing Machine

RH series, high shear homogenizing vessel,manufactured by our company with emotional design and advanced technique, completely meet the need of national GMP requirement.

  Specification:

                       -high speed homogenizer (0-3500RPM) and low speed mixer(0-40RPM)

                  -mixer for removing the product from the wall

                  -double wall mixer,with heating and cooling function

                  -with vacuum system

                  -easy cleaning

                  -Mixer material real time temperature controller

                  -Material feeding pipe connection

                  -Material output

                  -Capacity: 100-5000l available

                  -whole machine be stainless steel, mirror surface

                  -power: 380V/ 3ph,50Hz

Description:

1.There are three styles: vertical single layer,double layers,and 3 layers structure.

2.The polishing precision of inside wall is Ra0.45. The inside of pipe are heated by steam winding, the spring tape or cooled by cooling water.

 3.The outside layer that keeps warm uses polyurethane foam or pearwool.

4.The pars that touch the medical liquid adopt the 316L material, the other parts 304 material

 5.There are water entrance, circumfluence entrance.Sanitizing entrance,cleaning entrance and manhole for filling material, breathing entrance with an air breather, 0.22um, on the top. And on the bottom there are entrance for condensed water, entrance for distilled water, entrance for dirty water, entrance for measuring the liquid level, and entrance for measuring the temperature. The operation of Controlling ark and the meter is showing the temperature of distilled water, liquid level realize the auto-controlling of constant temperature and alarming when above the upper limit and below the lower limit.

 Usage :

                The product is mainly applied in such industries as daily chemical care products ,biopharmaceutical industry,food industry,paint and ink .

                The emulsifying effect is more prominent for material of high viscosity and high solid content.

Features advantage

1. Easy operation, steady capability

2. Good homogeneity, high efficiency

3. Reasonable structure, small volume and high automation level, easy to clean.

4. The stirring speed can be adjusted arbitrarily in 0-150r/min, which can meet the requirements of different process.

5. Customers can choose frequency control of motor speed homogenizer, whose maximum speed is up to 4500rpm.

Technical form:

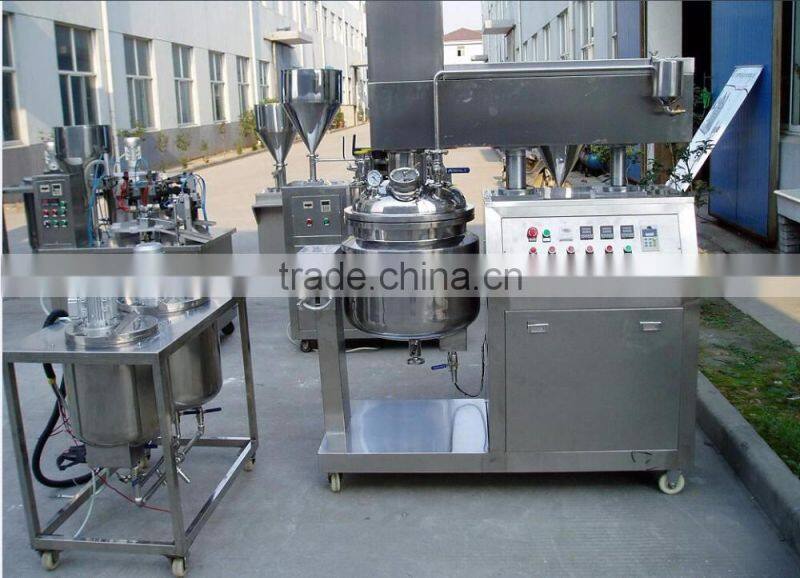

product showcase:
