Specifications

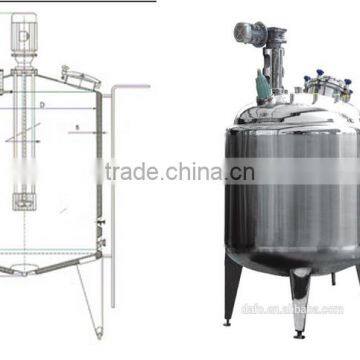

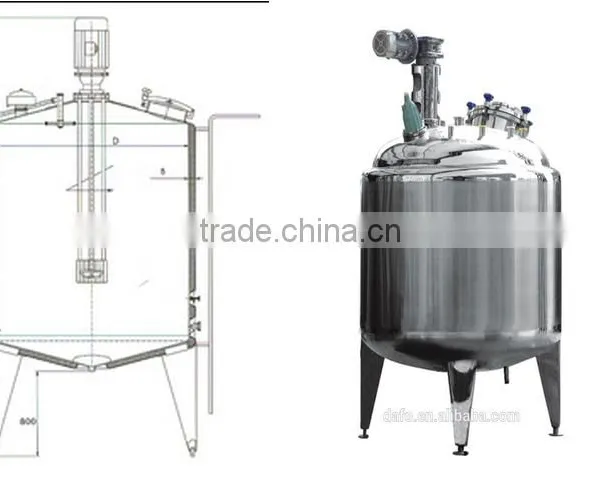

DF 200-5000L efficient shampoo blending tank
1.electric control tank dumping discharge
2.hydraulic lifting,vacuum emulsifier
200-5000L efficient shampoo blending tank
1. The triple mixing adopts the imported frequency converter for speed adjustment .
2. The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4200rpm and the highest shearing fineness can reach 0.2-5um.
3. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted , and especially for the powder materials , vacuum sucking can avoid dust .
4. The emulsifying pot lid can adopt liftinhg system , easy to clean and the cleanning effect is more obvious , the emulsifying pot can adopt tilt discharge.
5. The pot body is welded by imjported three-layer stainless steel plate . The tank body and the pipes adopt mirror polishing , which fully conforms to GMP requirement .
6. According to technological requirements , the tank body can heat or cool the materials . The heating modes mainly include steam heating or electric heating .
7. To ensure the control of the whole machine is more stable , the electric appliances adopt imported configurations , so as to fully meet the international standards .
Technical Parameter
Main pot | Water pot | Oil pot | Main pot power (KW) | Water oil pot (power×2)(KW) | Hydraulic(KW) | Vacuum pump power(KW) | ||
Volume(L) | Wall scraping | Homogenizer | ||||||
5L | 5L |
|
| 0.18 | 1.1 |
| 0.75 | 0.55 |
10L | 10L | 8 | 5 | 0.18 | 1.1 | 0.18 | 0.75 | 0.75 |
20L | 20L | 18 | 10 | 0.37 | 1.5 | 0.18 | 0.75 | 0.75 |
50L | 50L | 40 | 25 | 0.75 | 4-7.5 | 0.75 | 1.5 | 1.5 |
100L | 100L | 80 | 50 | 1.5 | 4-7.5 | 1.1 | 1.5 | 1.5 |
200L | 200L | 170 | 100 | 2.2 | 7.5-11 | 1.5 | 1.5 | 2.2 |
300L | 300L | 250 | 150 | 2.2 | 7.5-11 | 1.5 | 1.5 | 2.2 |
500L | 500L | 420 | 250 | 4 | 11 | 2.2 | 1.5 | 2.2 |
1000L | 1000L | 820 | 500 | 5.5 | 15 | |||
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
