Specifications
emulsification equipment
1.500L for lotion,hair gel,cosmetics
2.feeding automatically
3.double jacketed,with homogenizr mixe

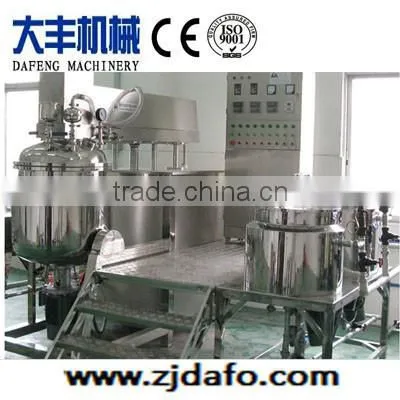

vaccum homogenizing emulsifier
The whole equipment of this system is composed of emulsifying mixer boiler, pretreatment boiler, vacuum system, hydraulic system, electric control system, and working platform.
Application
Food industry, Chemistry in dustry, Daily Chemical Industry, Medical industry, Construction industry, Paper making industry, Pesticide industry, Other industries.
Working princicle
1 High shear dispersing emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other
2 The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect,therefore,the material in the narrow slotamong stator and rotor receives strong forces from mechanical and liquid shearing,centrifugal force,pressing,liquid fraction,clashing,tearing and rush water.
3 The dissolvable solid,liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality.
Characteristic |
|
Model | DF-500 Vacuum Emulsifier |
Touch-screen computer | PLC |
Hydraulic system | motor power:1.5KW |
Vacuum system | vacuum pump bleeding air flow is 80M³/h, motor power 2.2KW |
Emulsify mixer Tank |
|
Volume | Total volume: 650L |
Pot Cover | vacuum pressure gauge, sucking-filter, discharging valve, sightglass-lamp, sightglass, manhole, spice funnel, CIP spray head. |
Homogenize | Power:7.5KW; speed: 0-3500r/min (frequency control) |
Mixing motor | Power of frame scraping mixer (clockwise): 2.2KW, 0-45r/min frequency. |
Water-tank mixing vessel |
|
Volume | Working volume:80L whole volume:100L |
Mixer | The model of the stalling of the top blender reducer is leaning install |
Mixing motor | Power:0.75KW Speed: 60r/min |
Oil-tank mixing vessel |
|
Volume | Total volume: 350L |
Mixer | The model of the stalling of the top blender reducer is leaning install |
Mixing motor | Power: 1.1KW Speed:960r/min |
Our advantage
The made, test, check of this equipment is according to JB150-1988"Technical condition of steel pressure vessels" and "Regulation of Safety Supervision for pressure vessels "from National Labor Bureau.
All contact parts are made of SUS316L stainless steel material (attached with demonstration). Mirror polish of the internal layer is 300MESH (sanitary class).Thickness of the material: 5mm.
Homogenizer
Homogenizer in the tank
