Home > Products > Emulsifiers > vacuum emulsifying mixing machine
vacuum emulsifying mixing machine
- 200 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Cosmetic |
Application: | Viscous Fluid | Additional Capabilities: | Granulating | Place of Origin: | Zhejiang, China |
Brand Name: | Dafo | Model Number: | DFRH series | Max. Loading Capacity: | 90% |
Voltage: | customized | Power(W): | 220v/380v/240v | Dimension(L*W*H): | customized |
Certification: | CE | Warranty: | 2years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
vacuum emulsifying mixing machine
RH series, high shear homogenizing vessel,manufactured by our company with emotional design and advanced technique, completely meet the need of national GMP requirement.
Specification:
-high speed homogenizer (0-3500RPM) and low speed mixer(0-40RPM)
-mixer for removing the product from the wall
-double wall mixer,with heating and cooling function
-with vacuum system
-easy cleaning
-Mixer material real time temperature controller
-Material feeding pipe connection
-Material output
-Capacity: 100-5000l available
-whole machine be stainless steel, mirror surface
-power: 380V/ 3ph,50Hz
Description:
1.There are three styles: vertical single layer,double layers,and 3 layers structure.
2.The polishing precision of inside wall is Ra0.45. The inside of pipe are heated by steam winding, the spring tape or cooled by cooling water.
3.The outside layer that keeps warm uses polyurethane foam or pearwool.
4.The pars that touch the medical liquid adopt the 316L material, the other parts 304 material
5.There are water entrance, circumfluence entrance.Sanitizing entrance,cleaning entrance and manhole for filling material, breathing entrance with an air breather, 0.22um, on the top. And on the bottom there are entrance for condensed water, entrance for distilled water, entrance for dirty water, entrance for measuring the liquid level, and entrance for measuring the temperature. The operation of Controlling ark and the meter is showing the temperature of distilled water, liquid level realize the auto-controlling of constant temperature and alarming when above the upper limit and below the lower limit.
Usage :
The product is mainly applied in such industries as daily chemical care products ,biopharmaceutical industry ,food industry ,paint and ink .
The emulsifying effect is more prominent for material of high viscosity and high solid content.
Technical form:
Model | Capacity(L) | DN | Power(kw) |
DF-LU-001 | 100 | 32 | 0.37kw |
DF-LU-002 | 150 | 32 | 0.37kw |
DF-LU-003 | 250 | 32 | 0.55kw/0.75kw |
DF-LU-004 | 300 | 32 | 0.55kw/0.75kw |
DF-LU-005 | 500 | 40 | 0.55kw/0.75kw |
DF-LU-006 | 600 | 40 | 0.55kw/0.75kw |
DF-LU-007 | 1000 | 40 | 0.75kw/1.1kw |
DF-LU-008 | 1200 | 40 | 0.75kw/1.1kw |
DF-LU-009 | 1500 | 40 | 0.75kw/1.1kw |
DF-LU-010 | 2000 | 40 | 1.5kw/2.2kw |
DF-LU-011 | 2500 | 40 | 1.5kw/2.2kw |
DF-LU-012 | 3000 | 40 | 1.5kw/2.2kw |
DF-LU-013 | 4000 | 40 | 1.5kw/2.2kw |
DF-LU-014 | 5000 | 50 | 2.2kw |
DF-LU-015 | 6000 | 50 | 3kw |
DF-LU-016 | 7000 | 50 | 3kw |

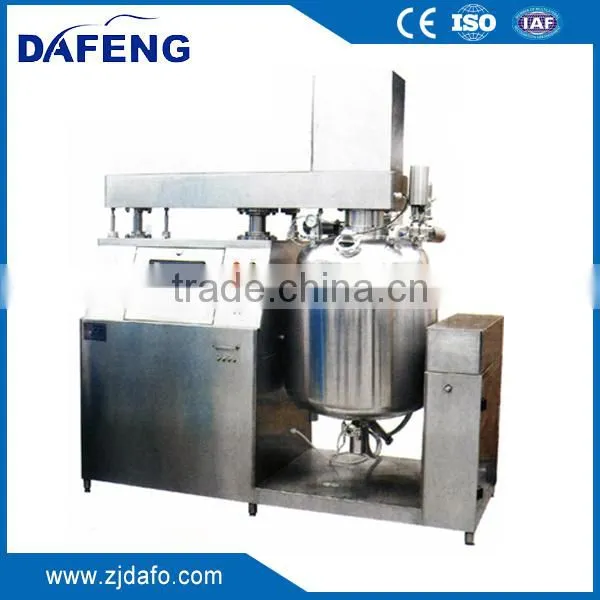

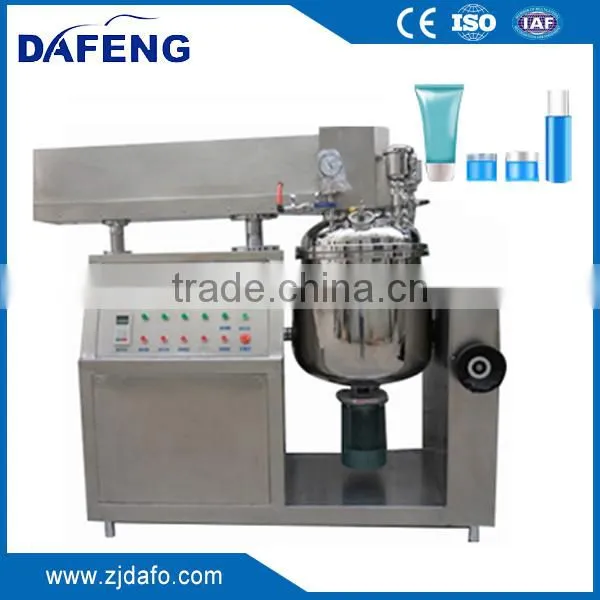

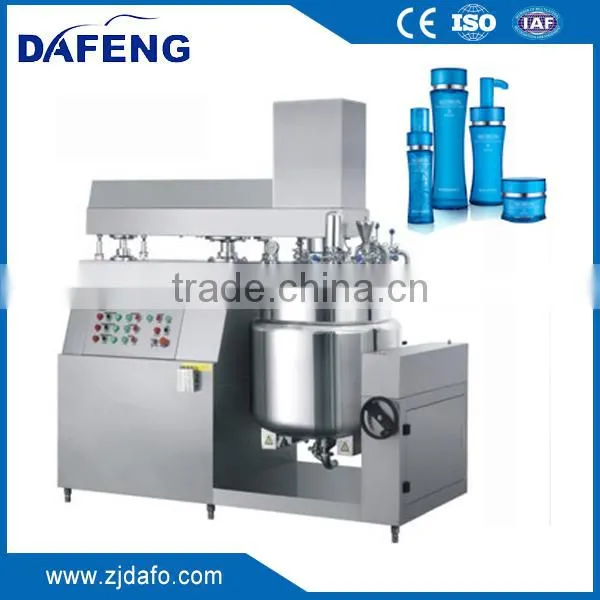

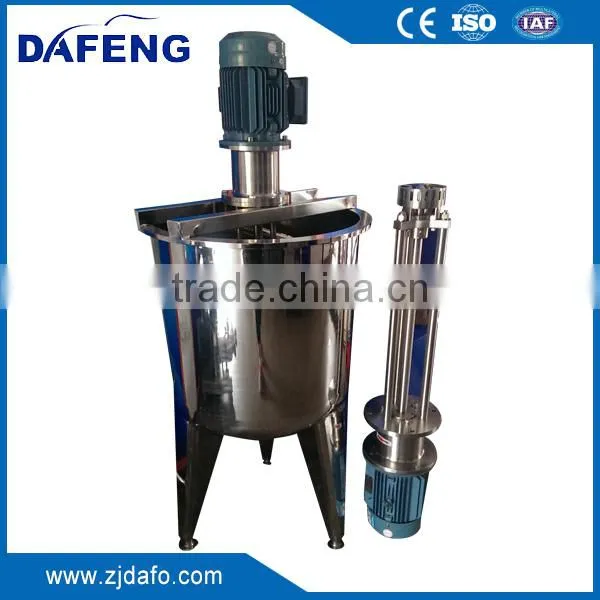

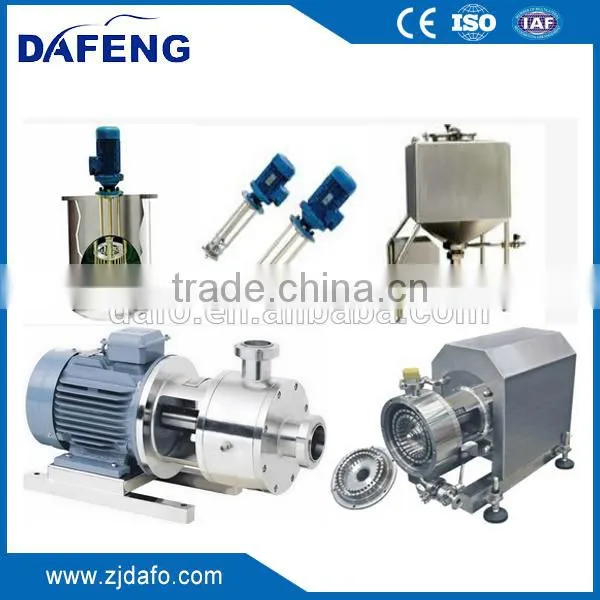

product showcase:
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Choose us and get more benefits:
1. Deliver innovative products in the market at a faster pace;
2. Enhance the reliability of product’s quality;
3. Decrease the total cost of the product effectively;
4. Improve research personnel’s ability of creative design;
5. Gain more leading technologies about product development and increase the competitive advantage of products.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
