1. Introduction

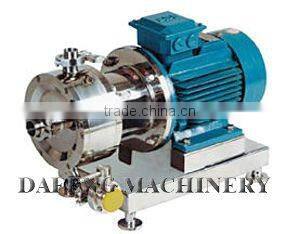

This type of emulsifying pump consists of a couple or several couples of rotor and stator, the high speed rotating rotor forces the material be sucked into the rotor and stator area, forming strong mixing shear action, after being forced to pass the space between the precisely coupled rotor and stator, materials are thrown out from the stator, during the process, the sharp mechanical and liquid shear action tearing and crushing the granules, meanwhile followed materials be sucked into the center of rotor and stator, foregoing materials be pushed out from the outlet, thus achieving the effect of refining, homogenizing, grinding and emulsification.
|
2. Technical parameters
Model | Power (kw) | Rotation (rpm) | Flow (m3/h) | Inlet (mm) | Outlet (mm) |
ELR401/1/6 | 1.1/1.5 | 2800 | 1 | DN40 | DN32 |
ELR405/1/6 | 4 | 2800 | 4 | DN40 | DN32 |
ELR410/1/6 | 7.5 | 2800 | 8 | DN50 | DN40 |
ELR415/1/6 | 11 | 2800 | 12 | DN65 | DN50 |
ELR420/1/6 | 15 | 2800 | 18 | DN65 | DN50 |
ELR425/1/6 | 18.5 | 1500/2800 | 20 | DN65 | DN50 |
ELR430/1/6 | 22 | 1500/2800 | 22 | DN65 | DN50 |
ELR450/1/6 | 37 | 1500 | 30 | DN100 | DN80 |
ELR460/1/6 | 45 | 1500 | 35 | DN125 | DN100 |
ELR475/1/6 | 55 | 1500 | 40 | DN125 | DN100 |
ELR490/1/6 | 75 | 1500 | 55 | DN125 | DN100 |
ELR510/1/6 | 90 | 1500 | 75 | DN125 | DN100 |
ELR530/1/6 | 110 | 1500 | 85 | DN150 | DN125 |
3. Features
- Reasonable shape design makes the machine more stable, easy to operate and maintain.
- High working accuracy, large capacity and wide viscosity, more suitble for industrial in-line production.
- Rotor and stator with special heat treating, abrasion resistance of the surface is 2 to 3 times of common stainless steel.
- Rotor and stator are forged with imported 304 or 316L stainless steel, material quality compact and abrasion resistant. While the industry generally adopt weld forming, easy to cause weld stress and defects such as slag inclusion, blow hole etc.
- The rotating parts have passed dynamic balance test and static balance test, ensure the stability in high speed moving condition, reduce noisy, prolong the service life.
- Mechanical seal is designed between the drive shaft and axle bearing, , that avoid the block problem caused by materials get into the bearing.
- Key components are with grinding process treatment, the matching of rotor and stator according with international standard.
- The connection of motor and bearing support can adopt solid coupling or elastic coupling, coaxiality tolerance, perpendicularity tolerance and end face run-out tolerance are all do better than the Industry standard.
- Control system can be explosion-proof or non explosion-proof as per your requirement, the explosion-proof type according with international standard.
500L emulsifying tank stainless steel high shear mixing tank
here is the high shear mixer, or you can call it high shear mixer, mixing speed is 3000rpm
Mixing emulsification tank ; Mixing emulsificine tank ;
Mixing emulsific machine
500L emulsifying tank stainless steel high shear mixing tank

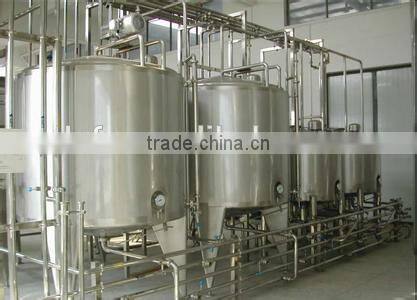

Mixing tank structure
Made into 3 layers, inner layer was the contact part with your raw material such as milk, juice or any other liquid product… outside the inner layer, there is a heating / cooling jacket for steam or hot water / cooling water. Then comes the outer shell. Between outer shell and the jacket, there is a 50mm thickness temperature preservation layer.
All of the 3 layers of the aging tank are made of stainless steel 304.
All the welding of this aging tank are finished by skilled worker using argon arc welding.
Mixing tank specification
Model | LRG-1T | LRG-2T |
Capacity | 1000Liter | 2000Liter |
Construction material | AISI304 | AISI304 |
Design pressure | 0.3Mpa | 0.2Mpa |
Working pressure | 0.25Mpa | 0.25Mpa |
Design temperature | 171 degree C | 171 degree C |
Working temperature | 110 degree C | 110 degree C |
Heating medium | Steam / hot water | Steam / hot water |
Cooling medium | Tap water / ice water | Tap water / ice water |
Mixing speed | 3000rpm / 960rpm | 3000rpm / 1450rpm |
Mixer type | high shear mixer / disperser | high shear mixer / disperser |
Motor power | 3kw | 5.5kw |
Dimension | Φ1300 ×2100mm | Φ1500 ×2300mm |
500L emulsifying tank stainless steel high shear mixing tank
high shear mixer / disperser mixing tank stainless steel Mixing emulsification tank
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
