high shear dispersing emulsifier homogenizer mixer
- 100 Set / Sets per Month
- ningbo or shanghai
- T/T Credit Card
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Shampoo |
Application: | Viscous Fluid | Additional Capabilities: | Milling | Place of Origin: | Zhejiang, China |
Brand Name: | DF | Model Number: | RH-G | Voltage: | 220/380 volt |
Power(W): | 5kw | Dimension(L*W*H): | Accordingly | Certification: | CE,ISO9001 |
Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

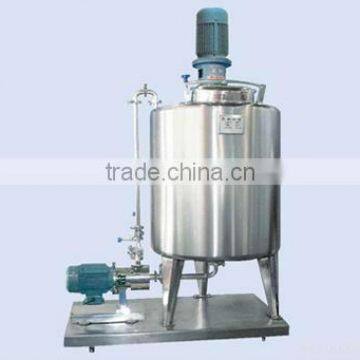

High shear dispersing emulsifier homogenizer mixer
Operation Principle:

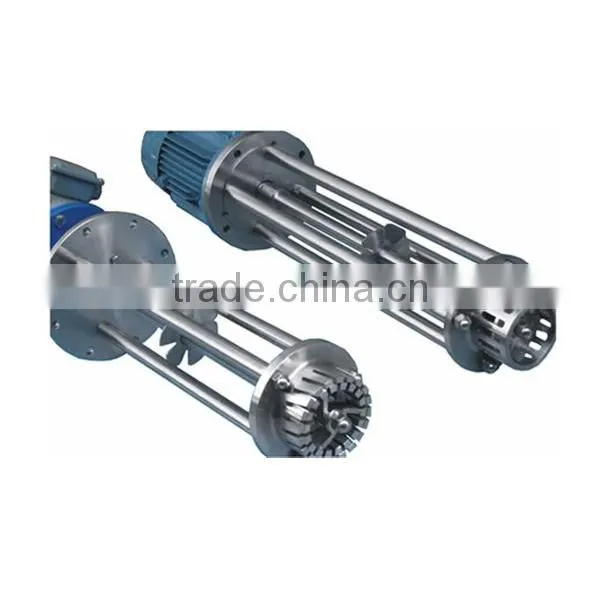

Three sets of stators and rotors are equipment in working cavity. Driving shaft in working cavity is an arm, electrical motor and the shaft in bearing cabinet can be selected in different conditions. It is fit for middle-large scale on-line continuous production or circulated treatment production process.
Working Method:
High shear mixer has similar work theory with high shear batch emulsifier, which the rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion. Inline mixer could also be fixed on pipeline to do continuous work. The standard components are pump chamber, rotor and stator.
High shear mixer is applied to emulsify and disperse kinds of liquids continuously, transmits low viscosity material and mix powder and liquid. It is widely used in the field of daily, beverage, food, pharmacy, chemical industry etc.
Model | Power(kw) | Speed(rpm) | Length(mm) | Handing Capacity(L/H) |
BRH-80 | 1.1 | 2800 | 350 | 10-40 |
BRH-90 | 1.5 | 2800 | 350 | 10-50 |
BRH-100 | 2.2 | 2800 | 650 | 50-100 |
BRH-120 | 3 | 2800 | 750 | 100-200 |
BRH-120A | 4 | 2800 | 750 | 100-300 |
BRH-140 | 5.5 | 2800 | 900 | 200-600 |
BRH-140A | 7.5 | 2800 | 900 | 200-800 |
BRH-160 | 11 | 2800 | 1050 | 500-1500 |
BRH-180 | 18.5 | 2800 | 1200 | 600-2000 |
BRH-200 | 22 | 1400 | 1200 | 800-2500 |
BRH-220 | 30 | 1400 | 1355 | 1000-3500 |
BRH-240 | 45 | 1400 | 1395 | 1500-5000 |
BRH-270 | 55 | 1400 | 1600 | 2000-8000 |
BRH-290 | 75 | 1400 | 1650 | 3000-10000 |
Certifications
energy conservation,walking on the enterprise’s developing road of adopt market requirements and promote technology innovation.Products of mixing tanks has now widely exported West Europe,East Europe,North American & AMERICANS,ASIA,EAST ASIA,MIDDLE EAST,AUSTRA ETC.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
