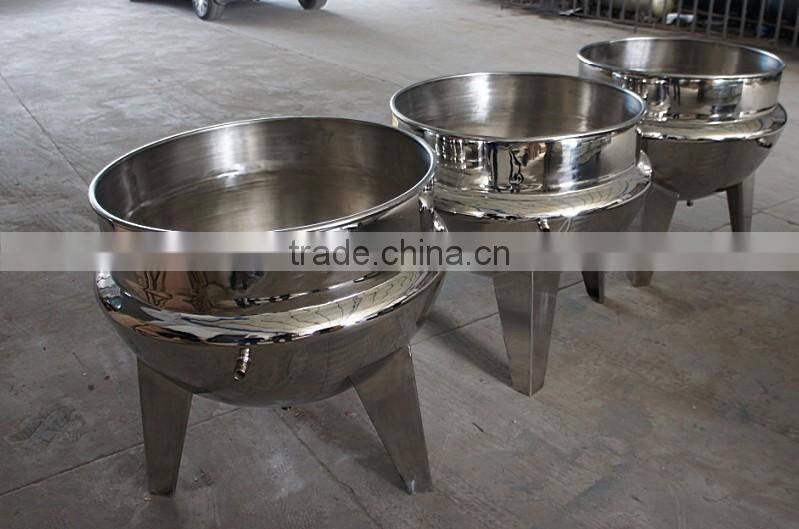

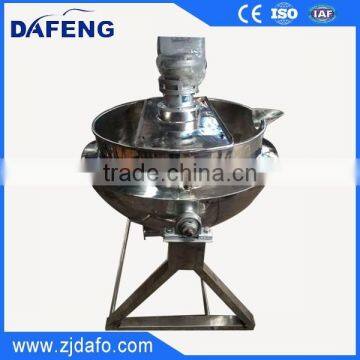

500Liter Electric jacketed cooking kettle
Introduction:
The electric jacketed cooking kettle is mainly used for food,candy,soup,meat,milk,porridge,pharmacy and chemical industry cooking and boiling.
We can add the mixer,edge & bottom PTFE scraper,cover according to your need.

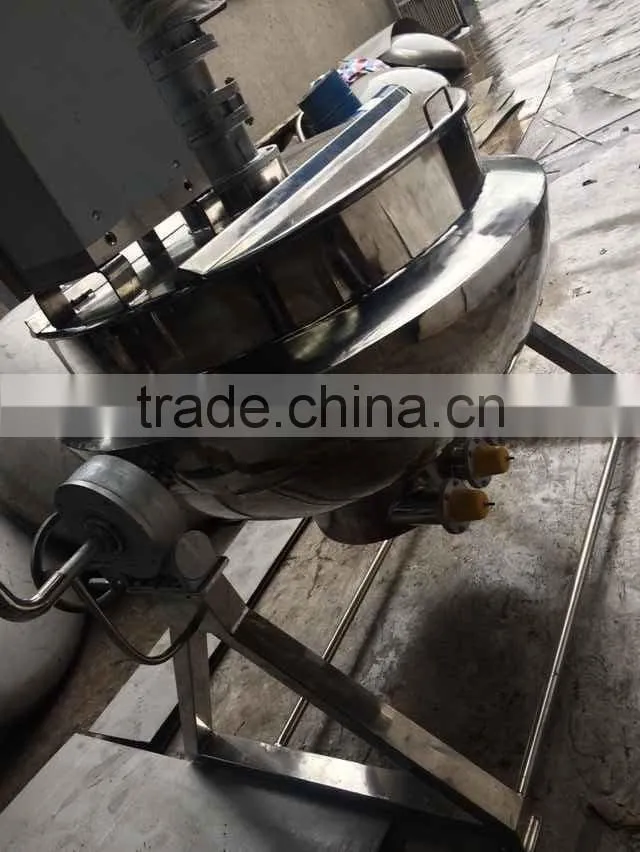

The kettle has tilting type and stationary type.
The electric jacketed kettle equiped with pressure gauge,safty valve and electric control box for simple operation,switch on/off,stirring on/off,temperature display etc.
Both inside and outside of the bowl are made of stainless steel,which is resistant to corrosion and in accordance with GMP standard.
Characteristics:
It owns characteristics such as large heating area,high thermal efficiency,uniform heating,short liquid material boiling time and easy to control the heating temperature.
The inner pot using acid heatresistant austenitic stainless steel manufacturing,equipped with pressure gauge and safety valve.
It has beautiful outlook,easy installation,and convenient operation,which is safe and reliable.
Technical parameters:
Model |
50L |
100L |
200L |
300L |
400L |
500L |
600L |
800L |
1000L |
Caliber(mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1400 |
Φ1500 |
Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
Electric power(kw) |
9 |
9 |
15 |
18 |
18 |
24 |
24 |
27 |
30 |
Amount of heat-conducting oil(L) |
30 |
36 |
45 |
60 |
70 |
80 |
100 |
200 |
250 |
Working pressure |
≤0.09Mpa(can be adapted according to customers’ requirement ) |
||||||||
Stirring speed |
36 r/min(can be adapted according to customers’ requirement) |
||||||||
Stirring power(kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
If what we regular make on this Jacket kettle,is what exactly you looking for,you can contact us below:
Cooperative Business:
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
