JK series SUS304
sandwich cauldron
jacketed kettle
USAGE
It is applied widely for the processing such products as candy,medicine,dairy,alcohol,cake etc.
Tilting jacketed kettle(steam kettle),jacket kettle
CHARACTERIESTICS
1. big being heated area,high thermal efficient,being heated
evenly,short time of boiling,temperature being controlled easily.
2.inner layer pan body is made up of acid-resistant and thermal-proof,austenitic stainless steel,maching pressure meter and safety vave,beautiful figure,easy
installation,simple operation.
3.Tank body should be furnished with a heavy reinforced rim with a welded-in butterfly shaded pouring lip for maximum and duranbility,right or left had tilt handle,fancent
bracket is standard and,ounted on rear of electrical control box.
Classification of Jacketed Kettle
1. According to Structure: there are Tilting Jacketed Kettle and Vertical Jacketed Kettle
2. According to Heating: there are Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle
3. According to Process Need: there are Jacketed Kettle with Agitating and Ones without Agitating

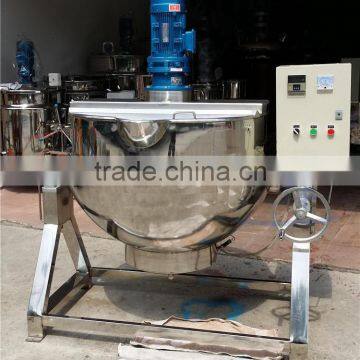

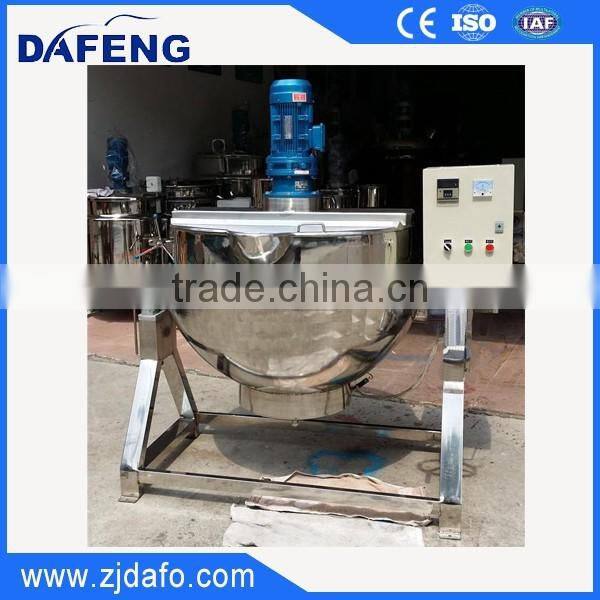

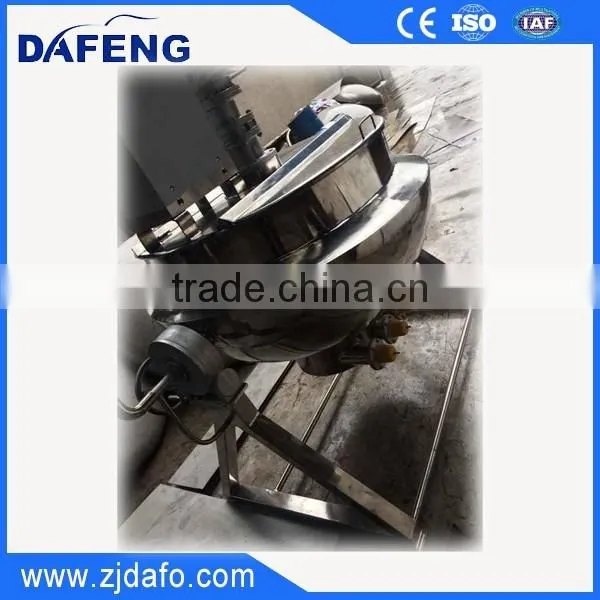

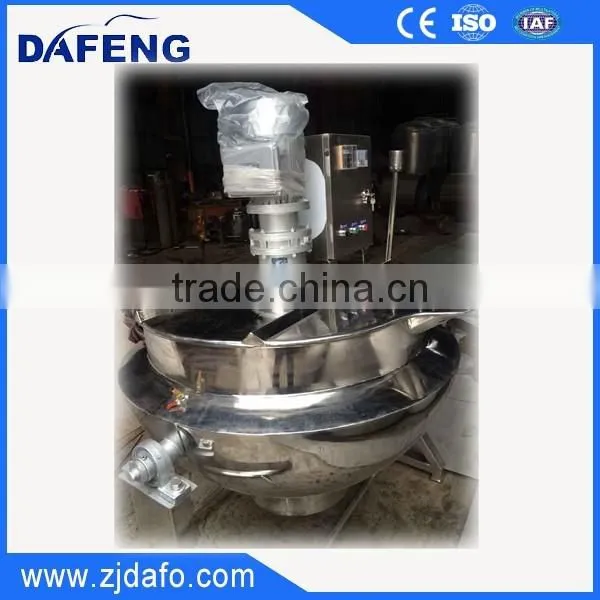

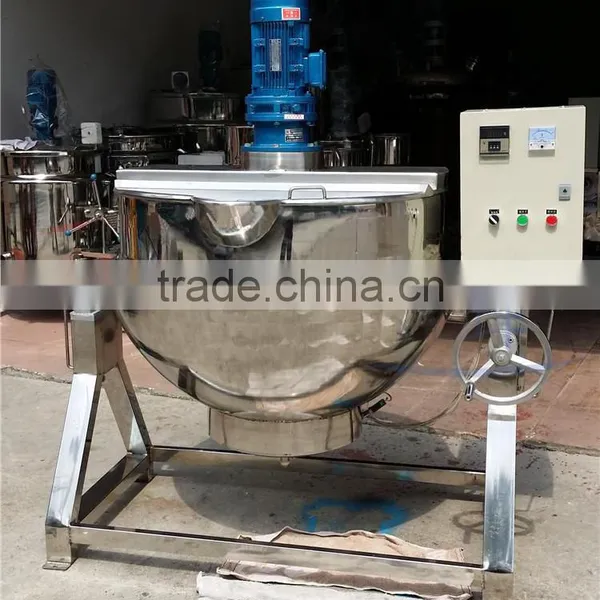

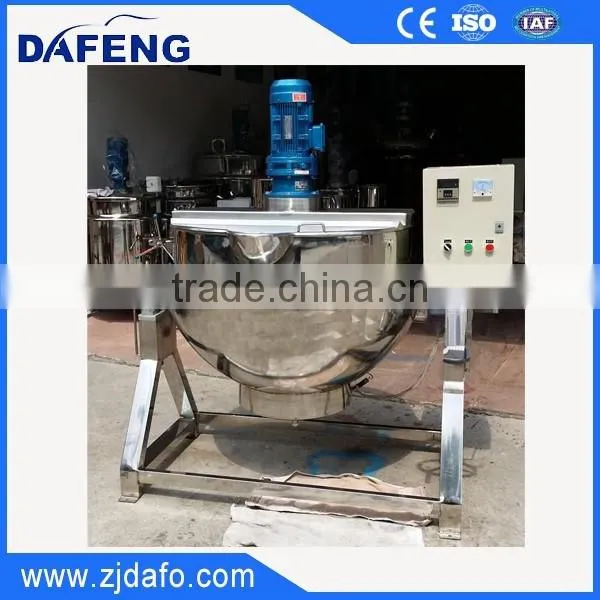

Structure of Jacketed Kettle
Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure formed by inside and outside spherical pot; middle layer can add steam to heat.
Technical parameters of Jacketed Kettle
Model |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
Caliber(mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1400 |
Φ1500 |
|
Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
|
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
|
Boiling time(min) |
5 |
8 |
11 |
14 |
18 |
22 |
25 |
34 |
40 |
|
Interface size |
Steam pipe |
3/4” |
1” |
2” |
||||||
Condensate pipe |
3/4” |
1” |
||||||||
Working pressure |
≤0.09Mpa(can be adapted according to customers’ requirement) |
|||||||||
Stirring speed |
36 r/min(can be adapted according to customers’ requirement) |
|||||||||
Stirring power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
Notes:
1. The stirring power in the chart is standard configuration.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’
requirement.
Vertical type jacket kettle Tilting type jacket kettle

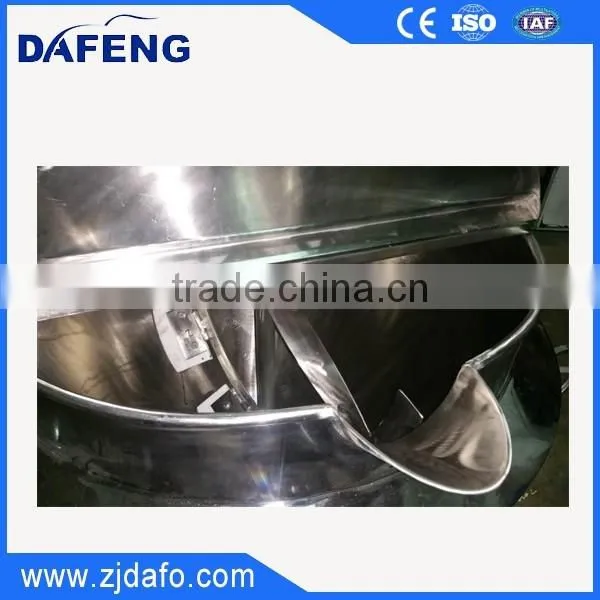

-The agitator with scrapers
Our company’s advantages over other companies
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
