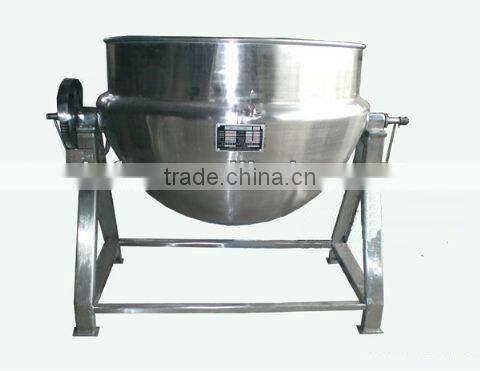

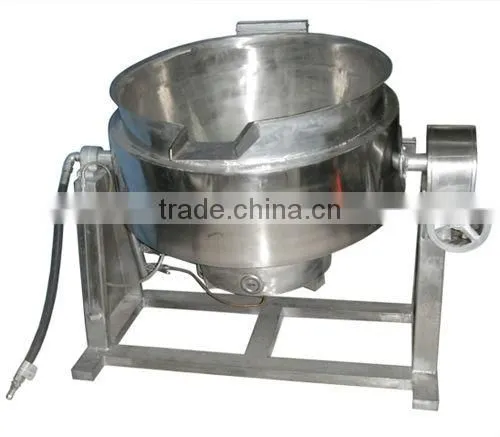

Tilting type beef steam cooking kettle
steam cooking kettle, jacket kettle cooking , industrial beef cooker
USAGE :
Tilting steam heating jacketed kettle is also named tiliting steam heating double layer cauldron. Now it has been widely applied in food processing such as candy, medicinie, dairy, alcohol, cake, beverage, sweermeat, can, etc., Some large restaurants and canteens also use it to boil soup, cook, stew and porridge. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
CLASSIFICATION :
1.Structure: there are Tilting Jacketed Kettle and Vertical Jacketed Kettle
2.Heating: there are Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating
Jacketed Kettle
3.Process Need: there are Jacketed Kettle with Agitating and ones without Agitating
STRUCTUR :
Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure
formed by inside and outside spherical pot; middle layer can add steam to heat.
Material:
a) Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
b) The whole machine is made of stainless steel ( SUS304/SUS316L)
CHARACTERISTICS :
Efficient Heating Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as
big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating
temperature etc.
Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and
acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.
Model |
50L |
100L |
200L |
300L |
400L |
500L |
600L |
800L |
1000L |
Material |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
Electric power(kw) |
9 |
9 |
15 |
18 |
18 |
24 |
24 |
27 |
30 |
Evaporating quantity(kg/h) |
30 |
40 |
65 |
75 |
100 |
150 |
200 |
250 |
280 |
Working pressure |
≤0.09Mpa |
||||||||
Stirring speed |
36 r/min |
||||||||
Stirring power(kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
NOTE:
1. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’
requirement.
2. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material,
working pressure, temperature, stirring speed, specific requirements, etc.
Inner Stirring The agitator with scrapers
Tilting type Vertical type
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
