Help CenterStainless Steel Candy Cooker
Related Products
Specifications
Stainless steel candy cooker1.material, sus314
2.heating by electric
3.candy cooking kettle, jacket cooking mixer

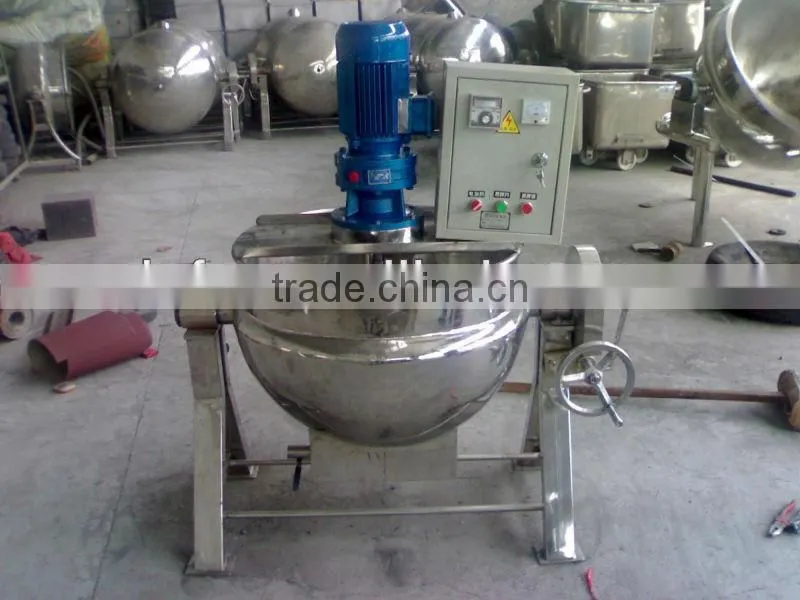

Stainless steel candy cooker
candy jacket kettle, candy jacket cooking kettle
USAGE
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage,
can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working
conditions.

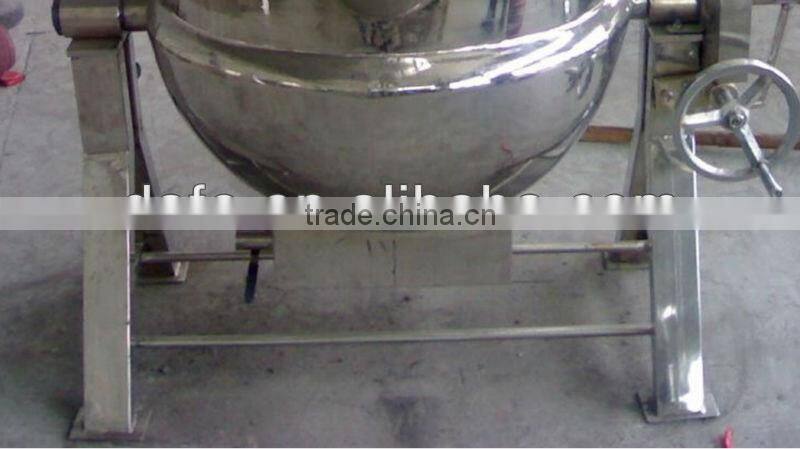

Tilting jacketed kettle(steam kettle),jacket kettle
CHARACTERIESTICS
- Electric heating Jacketed kettle,which is with many characteristics as big being heated area,high thermal efficient,being heated evenly,short time of boiling,temperature being controlled easily.
- Inner layer pan body is made up of acid-resistant and thermal-proof,austenitic stainless steel,maching pressure meter and safety vave,beautiful figure,easy installation,simple operation.
- Tank body should be furnished with a heavy reinforced rim with a welded-in butterfly shaded pouring lip for maximum and duranbility, right or left had tilt handle, fancent bracket is standard and, ounted on rear of electrical control box.
- The material mixing form adopts scraping the bottom, scrapingthe edge, non-stick pan, no stir dead angle, stirring evenly. The machine meets the require of healthy and hygiene, with complete accessory, nice appearance, easy to install and operate, safety and durable.
This candy cooker features
The pot puts 380V electricity as source of heat, electric heating rods, electric dual and HTF built-in interlayer. The highest temperature could reach to 150°C, it is controlled by the electric control box. It has many features such as large heating area, high thermal efficiency, heat evenly, and shortly liquid material boiling time, easy to control the heating temperature etc.
The inner pot is made of acid-heat-resistant austenitic stainless steel, furnished with pressure gauge, safety valves and electric control box. This equipment designed artistically, easy to install, easy to operate, insulation performance reliable.
Model |
50L |
100L |
200L |
300L |
400L |
500L |
600L |
800L |
1000L |
Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
Amount of heat-conducting oil(L) |
30 |
36 |
45 |
60 |
70 |
80 |
100 |
200 |
250 |
Working pressure |
≤0.09Mpa |
||||||||
Stirring speed |
36 r/min |
||||||||
Stirring power(kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
Design drawing product
Top mixer

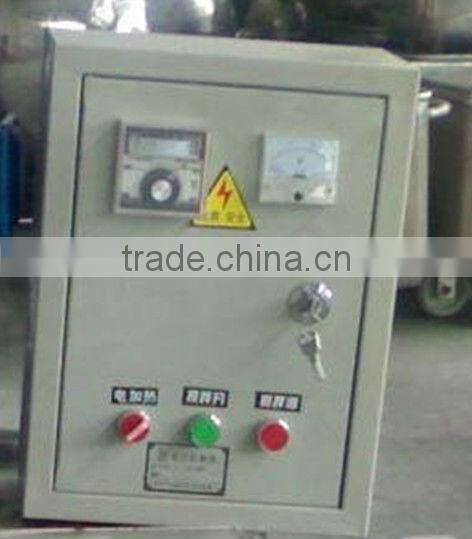

Electric cabinet

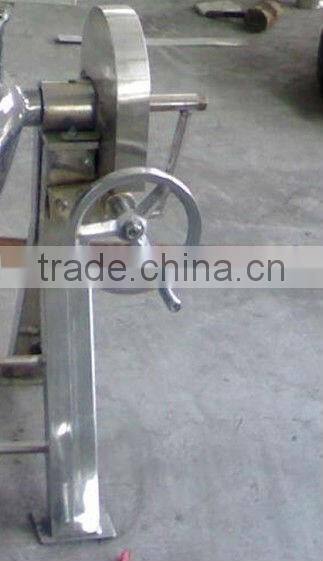

Stents

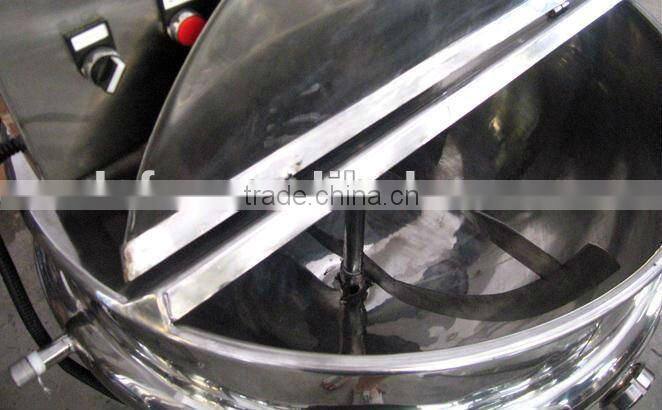

Inner agitator
Package in wooden case
OUR FACTORY
Zhejiang Dafeng Light Industrial Machinery Co.,Ltd can provide our customers with high quality stainless steel Chemical Reactors with agitation to process product. These tanks with high pressure resist,high temperature resist for dye,paper,pharmaceutical,and other chemical process industries,standards meet to national pressure vessel manufacture requirements.
