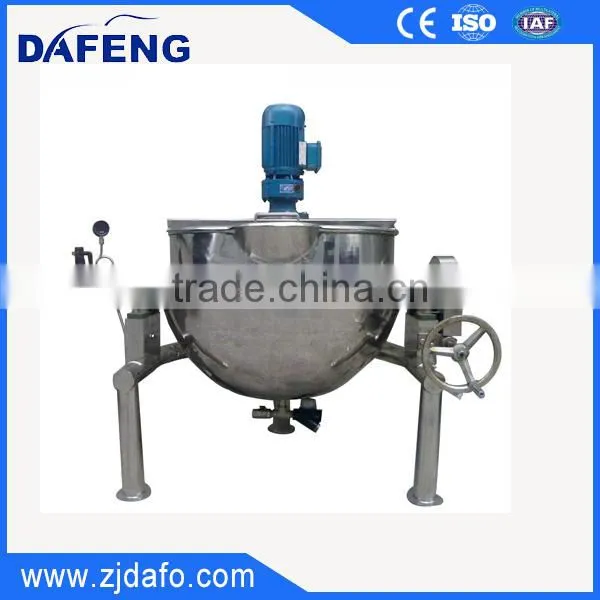

Multipurpose stainless steel gas and electric heating jam cooking pans
Features:
| 1. Material: stainless steel 304; |
| 2. Nominal capacity: 50-1000L; |
| 3. Large heating area, evenly heating; |
| 4. High thermal efficiency, short boiling time |
| 5. Heating temperature is easy to control; |
| 6. Nice appearance; |
| 7. Easy to install and operate; |
| 8. Safe and reliable. |
Characteristics
Jam cooking pans is mainly used for food, candy, soup, meat, milk, porridge, pharmacy and chemical industry cooking and boiling. We can add the mixer, edge & bottom scraper, cover according to your need. The kettle has tilting type and stationary type. The steam jacketed kettle can be heat by gas, steam(boiler) or electric. Generally, the bigger model can choose stationary type and by steam heating.
steam jacketed kettle equiped with pressure gauge, safty valve and electric control box. Both inside and outside of th bowl are made of stainless steel, which is resistant to corrosion and in accordance with GMP standard.
technical parameter:
| Model | RL-50 | RL-100 | RL-200 | RL-300 | RL-400 | RL-500 | RL-600 | RL-800 | RL-1000 |
| Capacity | 50L | 100L | 200L | 300L | 400L | 500L | 600L | 800L | 1000L |
| Open Diameter(mm) | 560 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
| Depth | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
| Heating area(m2) | 0.40 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
| Heaing pipe power | 1kw*3 | 3kw*3 | 5kw*3 | 6kw*3 | 6kw*3 | 8kw*3 | 8kw*3 | 9kw*3 | 10kw*3 |
| Conduction oil | 25L | 36L | 45L | 60L | 70L | 80L | 100L | 200L | 250L |
| Working pressure | Equal and less than 0.09Mpa | ||||||||
| Mixing speed | 36r/min | ||||||||
| Mixer power | 0.3kw | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
