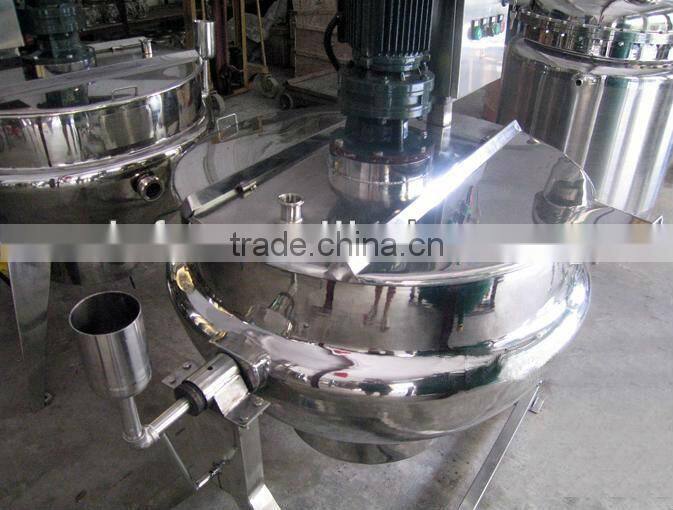

Stainless steel agitated sandwich boiler
Sandwich agitation boiler is used widely for pharmacy,food and chemical industry to cook,boil or concentrator according to client requirement.
It has the hot steam and electrical heating sources.Also it can add the agitator and cover.All depend on clients.
This equipment consist of boiler body.stir device,titling system,worm wheel and worm rod and the boiler body can be rotated within 180 degree.
All the material in contact with media used stainless steel featuring good anticorrosion and durability which are in accordance with GMP standard.
We can also make the jacketed kettle or jacketed boiler according to your special demands.
This equipment features
The pot puts 380V electricity as source of heat, electric heating rods, electric dual and HTF built-in interlayer. The highest temperature could reach to 150°C, it is controlled by the electric control box. It has many features such as large heating area, high thermal efficiency, heat evenly, and shortly liquid material boiling time, easy to control the heating temperature etc.
The inner pot is made of acid-heat-resistant austenitic stainless steel, furnished with pressure gauge, safety valves and electric control box. This equipment designed artistically, easy to install, easy to operate, insulation performance reliable.
Technical parameters
Model |
50L |
100L |
200L |
300L |
400L |
500L |
600L |
800L |
1000L |
Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
Amount of heat-conducting oil(L) |
30 |
36 |
45 |
60 |
70 |
80 |
100 |
200 |
250 |
Working pressure |
≤0.09Mpa |
||||||||
Stirring speed |
36 r/min |
||||||||
Stirring power(kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
