QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed Kettle

QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed Kettle photo-1
QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed Kettle photo-2
QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed Kettle photo-3
QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed Kettle photo-4
QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed Kettle photo-5
QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed Kettle photo-6
US$ 2,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DAFO
Model Number:
DF-JK
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name DAFO
Model Number DF-JK
Type Cooking Equipment
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Product Description and Info



Name: Stainless steel steam electricjacketed kettle(oil jacketed kettle,jacket kettle with agitator)



Stainless steel electric jacket steam cooker

The machine is specially used for cooking syrup,chilli paste,and other sauce paste. It at the same time has mixing function. The machine is made of stainless steel. This boiler takes a certain pressure steam as thermal source,which is with many characteriestics as big being heated area,high thermal efficient,being heated evenly,short time of boiling,temperature being controlled easily.



Technical Parameters

model QJ50 QJ100 QJ150 QJ200 QJ300 QJ400 QJ500
volume 50 100 150 200 300 400 500
pressure <0.2 Mpa
evaporating quantity 30 40 50 65 75 100 150
heating area 0.4 0.45 0.76 1 1.15 1.44 1.9
energy 33 44 55 72 90 110 165
weight (kg) 170 190 210 230 320 360 485
length 720 800 1350 1400 1450 1500 1600
width 600 650 660 700 800 850 900
height 830 950 1000 1100 1110 1140 1150



Stainless Steel industrial jacketed kettle pictures for reference:

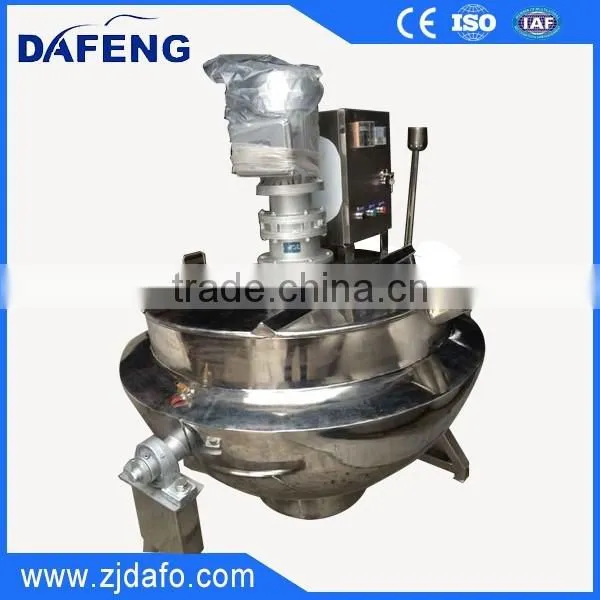

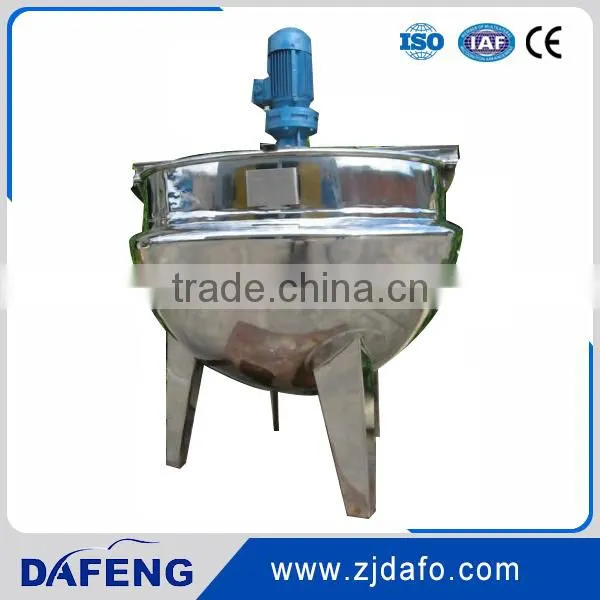

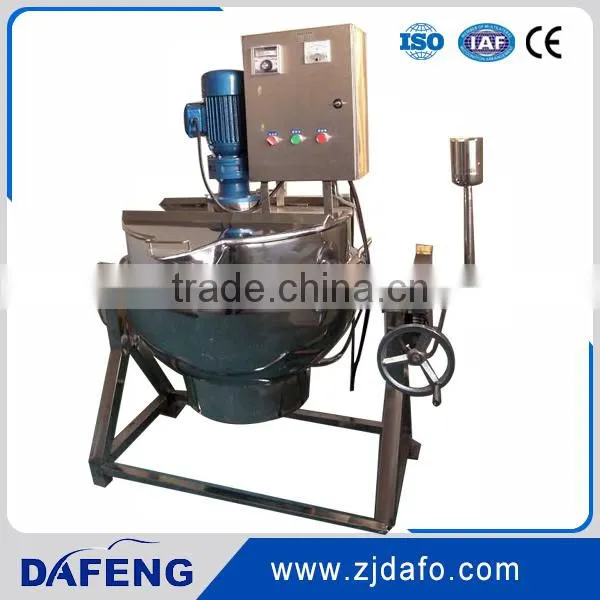

1)electric jacketed pot with agitation systerm

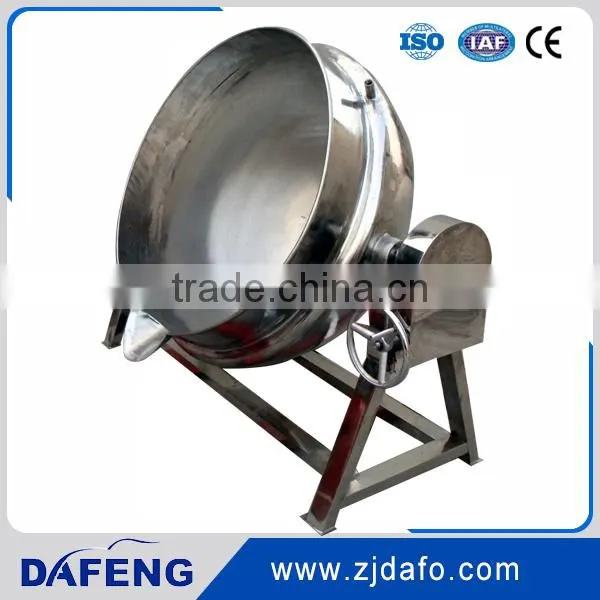

2)Steam jacketed pot -Tilting type



3)steam jacketed pot-Fixed type



7.jacketed kettle structure
