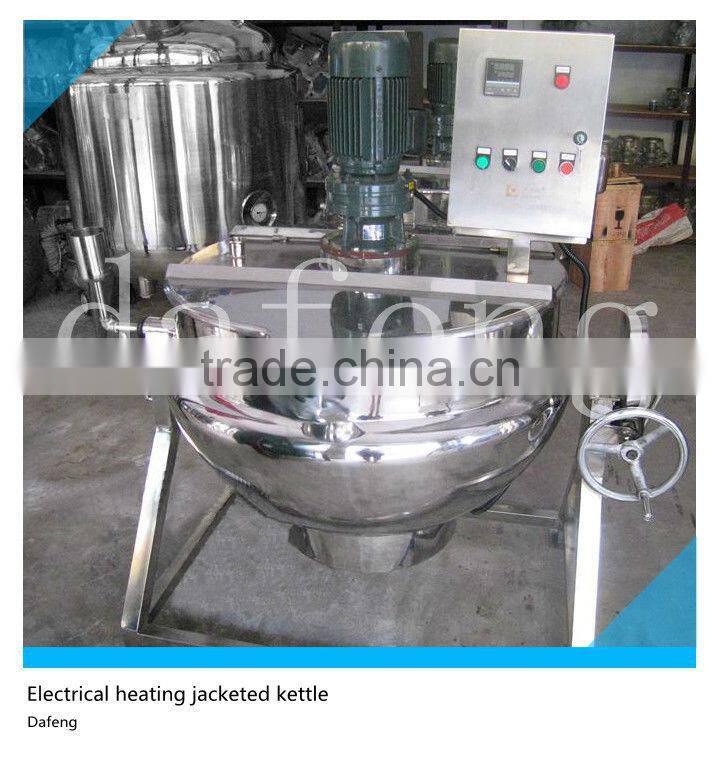

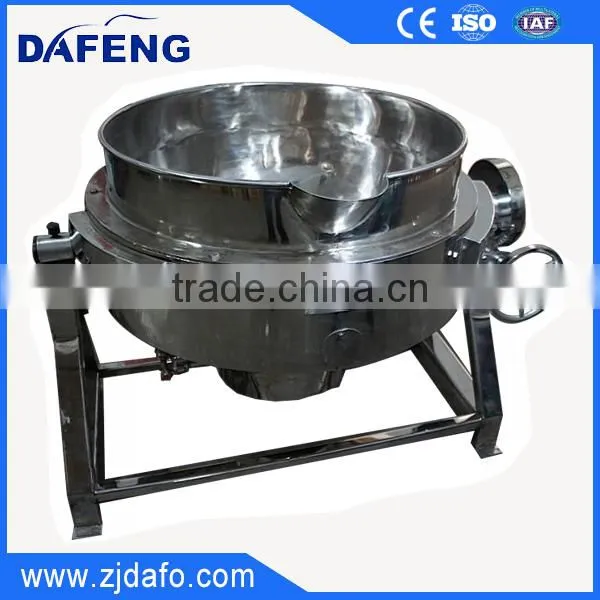

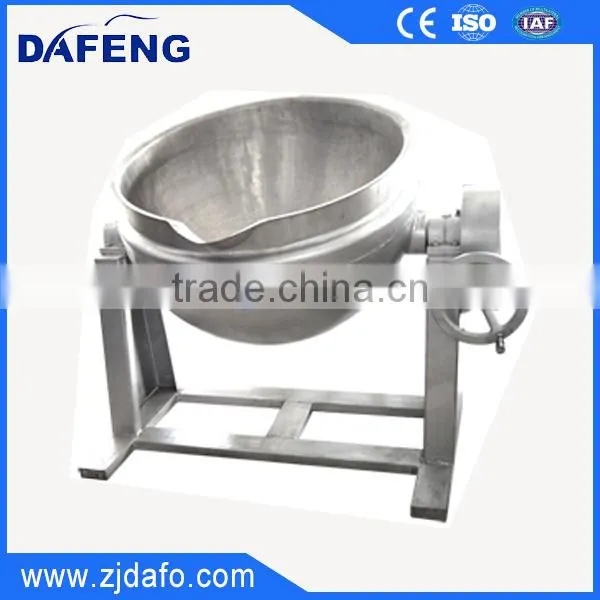

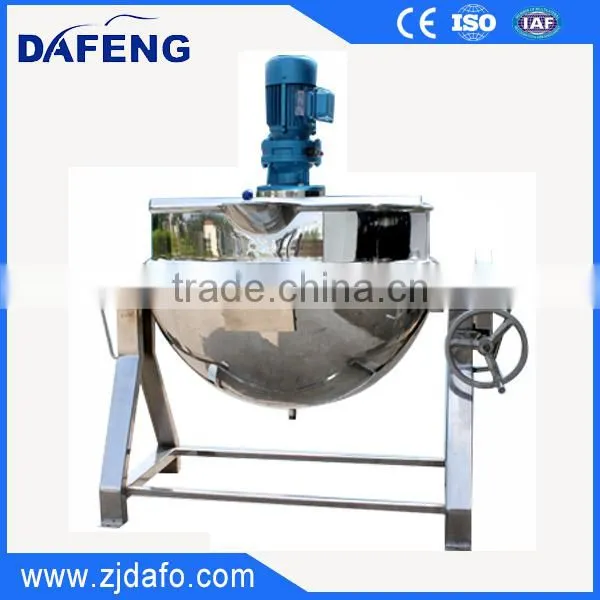

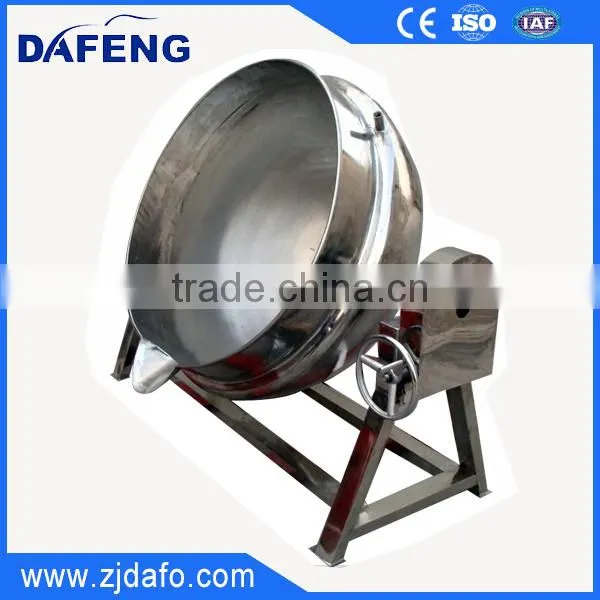

Stainless steel tilting type steam jacketed cooker

widely used for pharmacy,food and chemical industry to cook,boil or concentrator according to requirement.

This equipment consist of boiler body.stir device,titling system,worm wheel and worm rod and the boiler body can be rotated within 180 degree.All the material in contact with use stainless steel featuring good anticorrosion and durability which are in accordance with GMP standard.

Structure

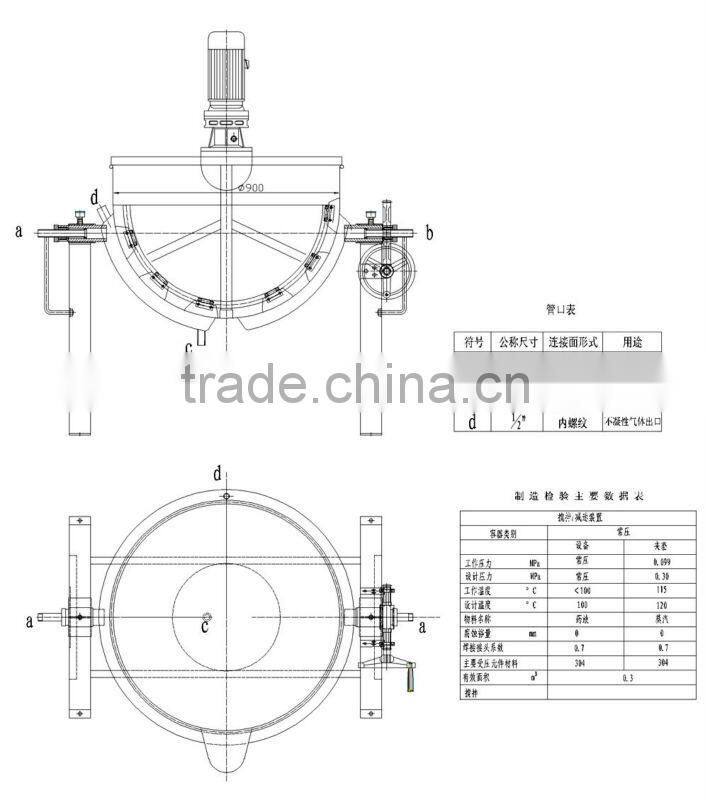

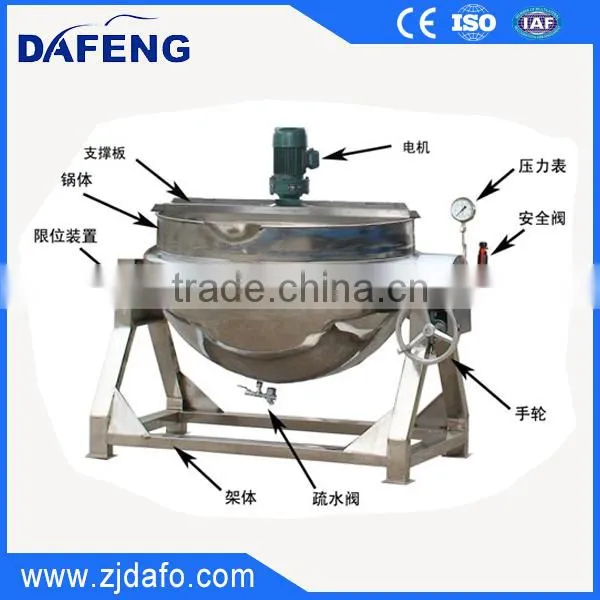

Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure

formed by inside and outside spherical pot; middle layer can add steam or heating conduction oil to heat.

Material

a)  Common Jacketed Kettle Stainless steel inner pot (SUS 304/SUS316L),

carbon steel outer pot (Q235B) treated with anti-rust paint

b) All Stainless Steel Jacketed Kettle is made of stainless steel (SUS304/SUS316L).

Characteristics:

1. Efficient Heating

Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as

big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating

temperature etc.

2. Safety and Convenience

Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and

acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.

Technical parameters

Notes:

1. The stirring power in the chart is standard configuration. Any specific requirements, please let us know.

2.  Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.

3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.
