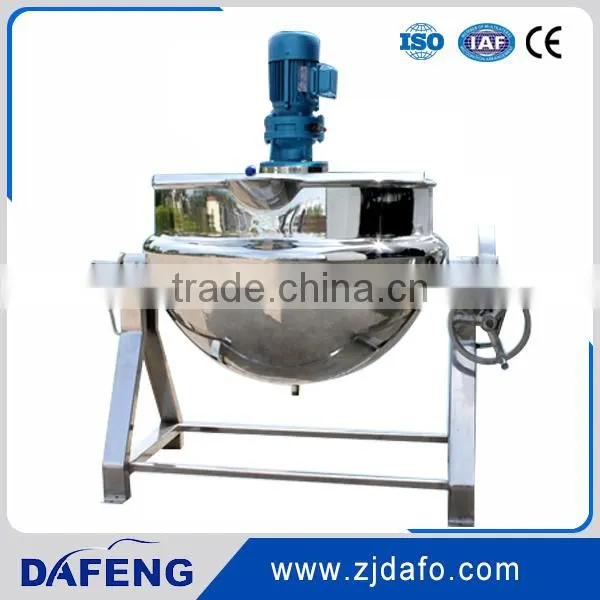

Help CenterSUS316L Stainless Steel Steam Boilers
Related Products
-
Stainless Steel Tilting Steam Heated Jacketed Pot,cooking Pot.US$ 500 - 5,000MOQ: 1 Set -
Stainless Steel Tilting Type Steam Jacketed CookerUS$ 1,500 - 9,900MOQ: 1 Set
-
QJ 250L Tilting Type Electrical Jacket Kettle Cooker/Electric Heating Jacketed KettleUS$ 2,000 - 10,000MOQ: 1 Set
-
JK Series Vertical Type Jacket KettleUS$ 990 - 3,500MOQ: 1 Set
-
High Quality JK Series Vertical Stainless Steel Steam Kettle BoilersNegotiableMOQ: 1 Set
Usage
The jacketed vessel is used widely for pharmacy,food and chemical industry to cook,boil or concentrator according to client requirement.
Strcture
It has the hot steam and electrical heating sources.Also it can add the agitator and cover.All depend on clients.We can also make the jacketed kettle or jacketed boiler according to your special demands.
Stainless steel double layer pot by steam heating:
1.material is SS304 and SS316L
2.capacity :50L to 1000L
3.deisng according to GMPs and FDA
4.it can use electric heat and steam heat
5.it's vertical type, also can choose tilting type
Technical parameters chart:
model |
50L |
100L |
200L |
300L |
400L |
500L |
600L |
||||
Caliber (mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
||||
Depth of Pot (mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
||||
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
||||
Electric Power (kw) |
9 |
9 |
15 |
18 |
24 |
24 |
27 |
||||
Amount of heat-conducting oil (l) |
30 |
36 |
45 |
60 |
70 |
80 |
100 |
||||
Working pressure |
≤0.09Mpa (can be adapted according to customers' requirements) |
||||||||||
Stirring speed |
36r/min (can be adapted according to customers' requirements) |
||||||||||
Stirring power (kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
||
Note
The jacketed kettle’s pressure, speed and power etc is can be adapted according to customers' requirements.
Classification of Jacketed Kettle
1. According to Structure: there are Tilting Jacketed Kettle and Vertical Jacketed Kettle
2. According to Heating: there are Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle
3. According to Process Need: there are Jacketed Kettle with Agitating and Ones without Agitating

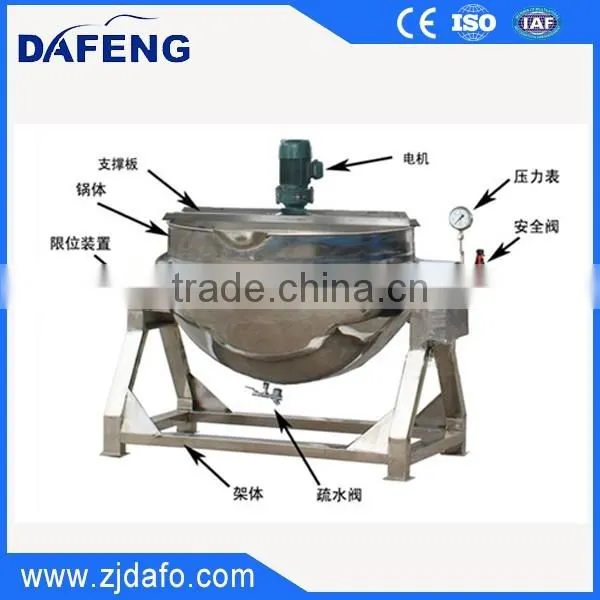

Structure of Jacketed Kettle
Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure formed by inside and outside spherical pot; middle layer can add steam to heat.
Technical parameters of Jacketed Kettle
Model |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
Caliber(mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1400 |
Φ1500 |
|
Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
|
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
|
Boiling time(min) |
5 |
8 |
11 |
14 |
18 |
22 |
25 |
34 |
40 |
|
Interface size |
Steam pipe |
3/4” |
1” |
2” |
||||||
Condensate pipe |
3/4” |
1” |
||||||||
Working pressure |
≤0.09Mpa(can be adapted according to customers’ requirement) |
|||||||||
Stirring speed |
36 r/min(can be adapted according to customers’ requirement) |
|||||||||
Stirring power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
Notes:
1. The stirring power in the chart is standard configuration.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’
requirement.

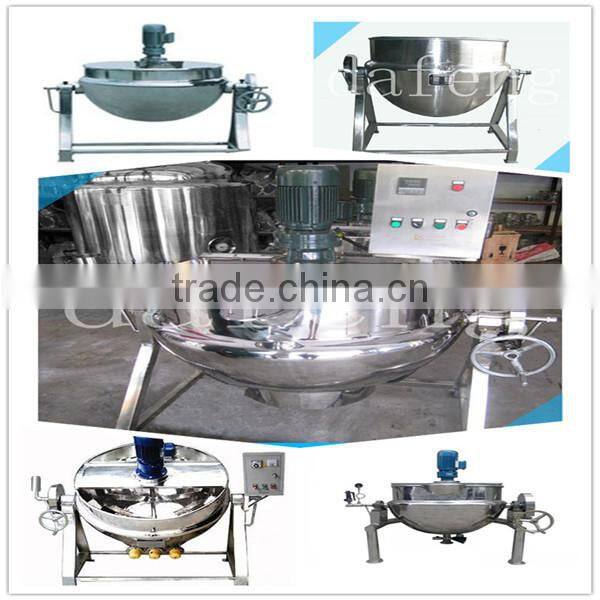

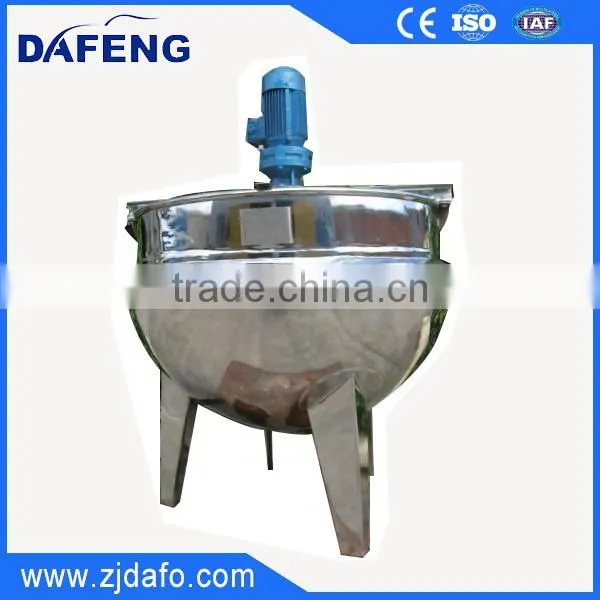

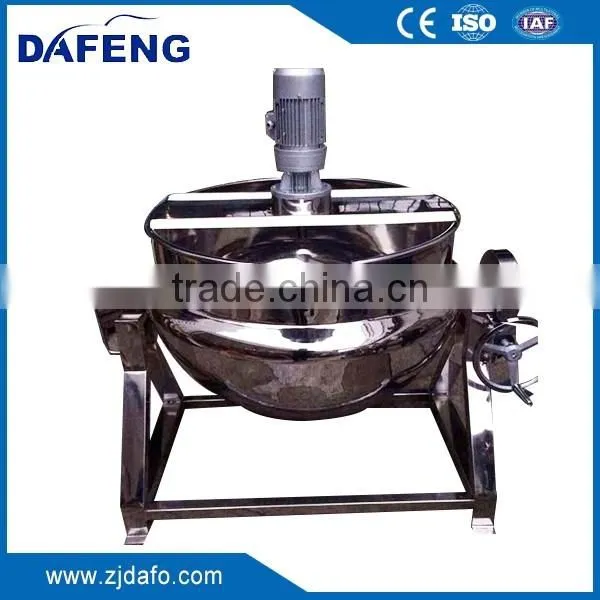

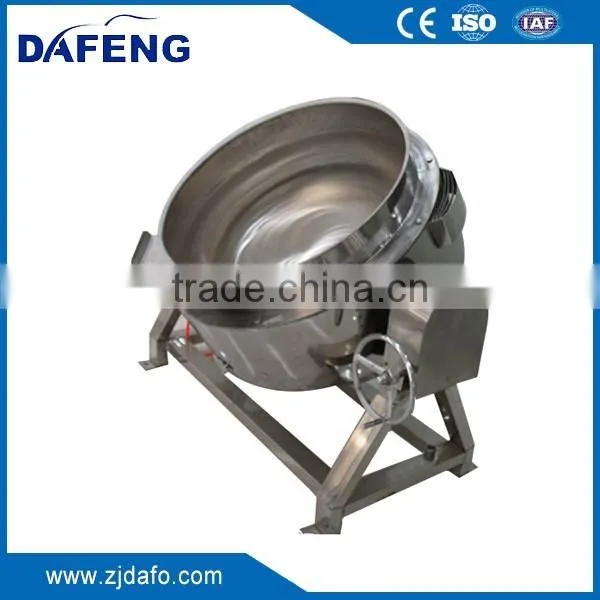

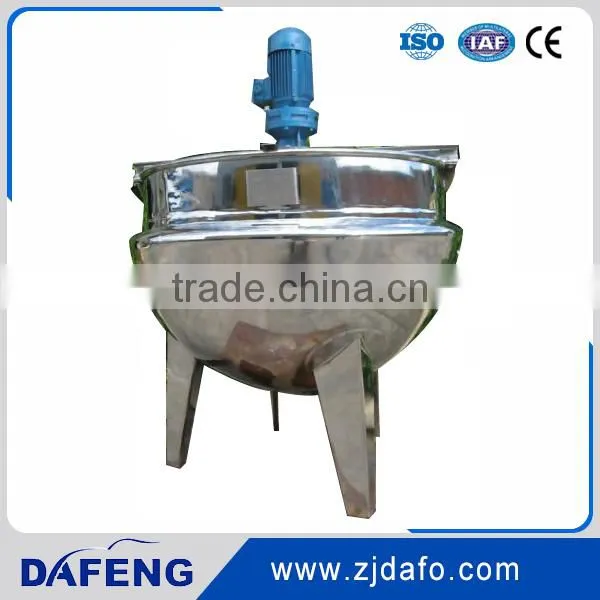

Vertical type jacket kettle Tilting type jacket kettle

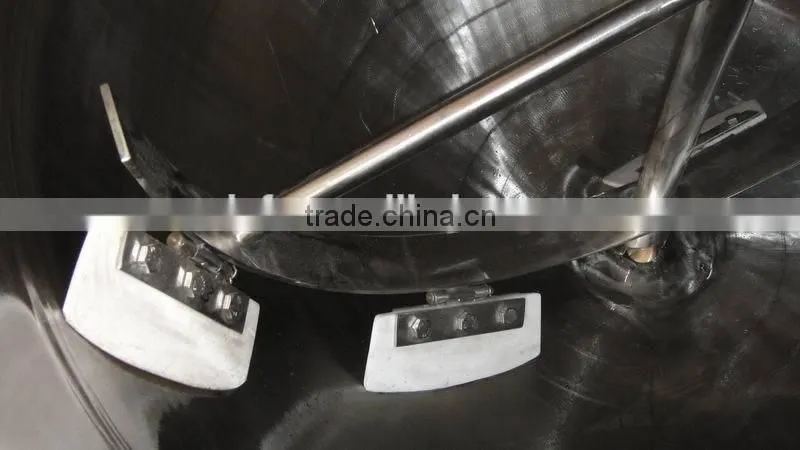

-The agitator with scrapers
