Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 6v 12v 24v dc Micro Air Pump

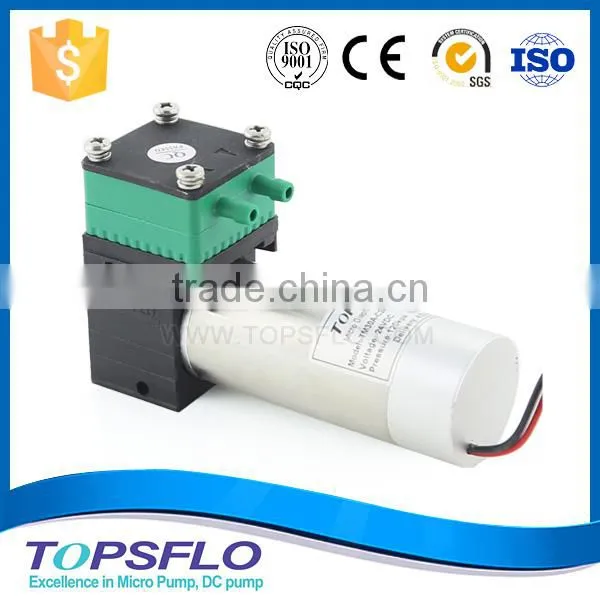

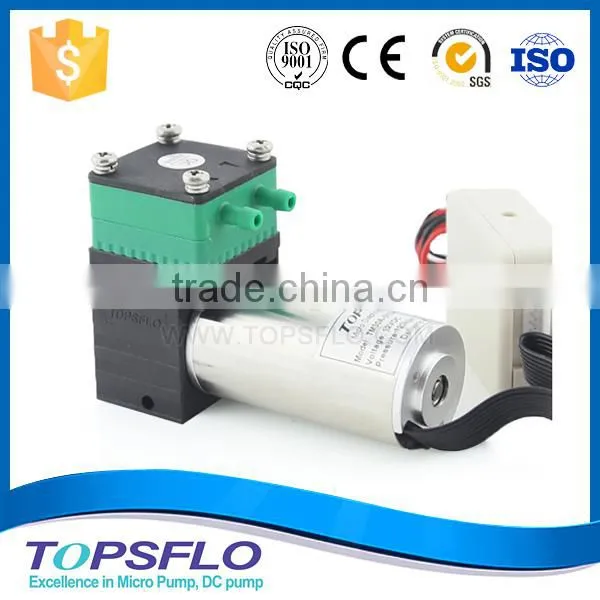

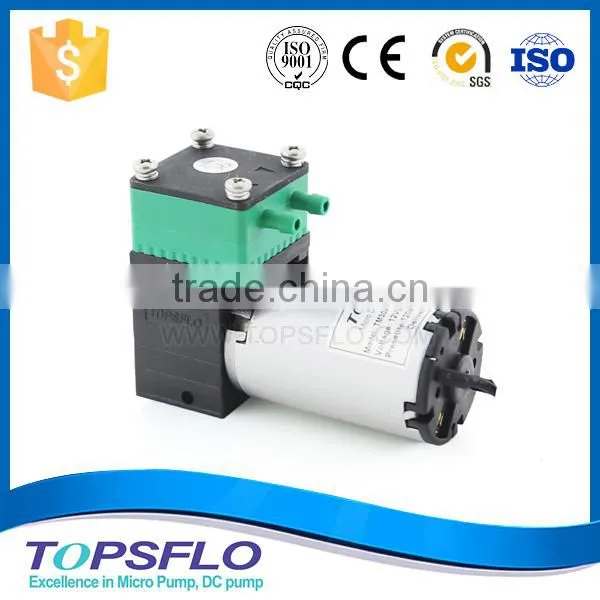

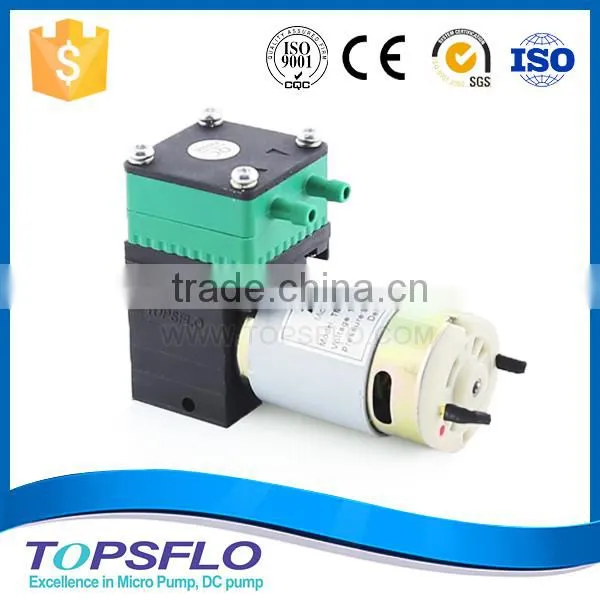

6v 12v 24v dc Micro Air Pump

Name: 6v 12v 24v dc Micro Air Pump
Brand: TOPSFLO
SKU: 141359892
Availability: InStock

6v 12v 24v dc Micro Air Pump thumbnail-1

6v 12v 24v dc Micro Air Pump thumbnail-2

6v 12v 24v dc Micro Air Pump thumbnail-3

6v 12v 24v dc Micro Air Pump thumbnail-4

US$ 30 - 90 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

TOPSFLO

Model Number:

TM30A

Theory:

Vacuum Pump

Contact Supplier Request Quote Chat Now

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TOPSFLO

Model Number TM30A

Theory Vacuum Pump

Structure Diaphragm Pump

Usage Air Pump

Power Electric

Standard or Nonstandard Standard

Fuel Other, DC power, Battery

Pressure Low Pressure

Application Other, Gas transferring and evacuating

High Performance 6V 12V 24V Gas Pump

Product Description

Product Specification

Model	Pressure Pump	Vacuum Pump	Rated Voltage	No-load Current	Max Pressure	Max Vacuum	Max Flow
	(Item Number)	(Item Number)	(Vdc)	(A)	(KPa)	(KPa)	(L/min)
TM30A-A	TM30A-A12- P12006	TM30A-A12-V7006	6 /12 / 24	0.4/0.24/0.15	120	-70	6
" P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional.

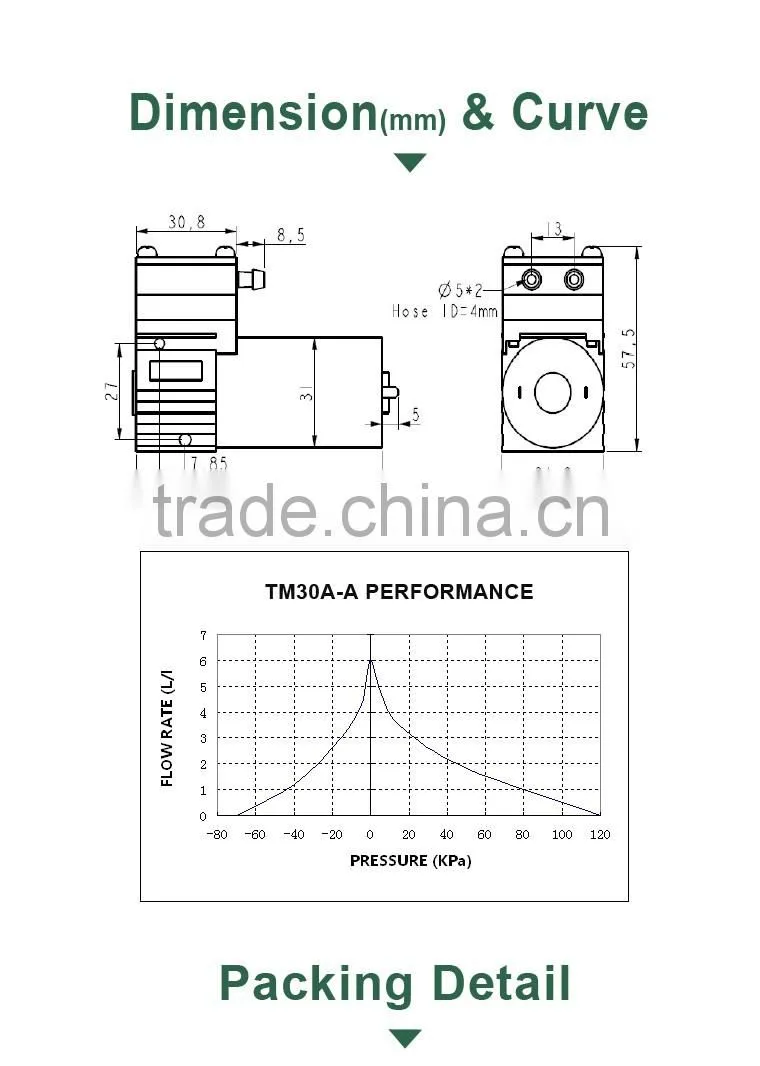

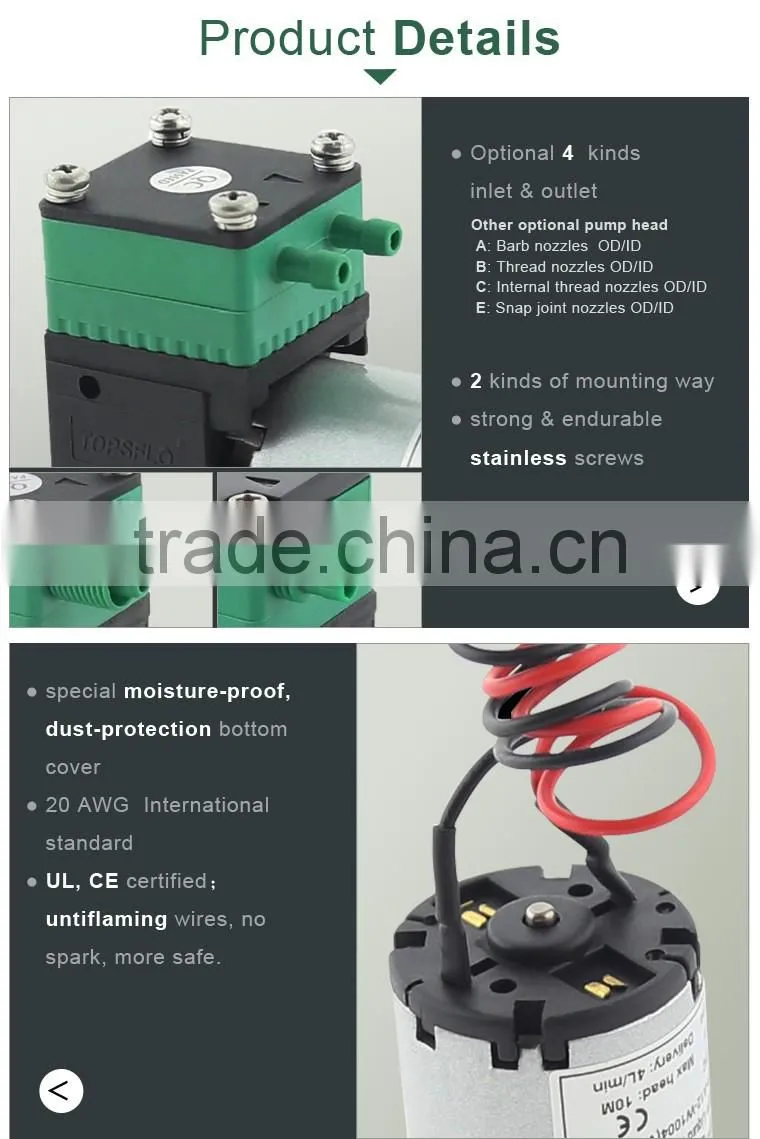

Pump Weight:220g; *Pump Size:80mm31mm58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm*,hose suggestion:ID 4.0mm
Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM
Motor type and code:“A”:premium duty brush DC motor (reference lifetime 3,000hours),longer endurance lifetime than other normal DC membrane pump

• Highest Performance/Size Ratio

Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.

• Performs Quieter

Optimized head, chamber, and flow path reduce noise without compromising performance.

• Lasts Reliably Longer

Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.

• Uncontaminated flow

No contamination of the media due to oil-free operation

• Little vibration

Because of leading edge technologies, top quality bearing, superior brushless motor

• High level of gas tightness

Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head

• Extreme chemical resistance

The use of chemically resistant materials optional such as PTFE FKM or other material combinations for the parts which allows the corrosive gas to be pumped.

• Optimal solution for your application

A wide standard range of materials, motors , voltages configurates multiple components system selected

1. Industrial pressure and vacuum applications 2. Portable Analytical Instruments 3. Medical Diagnostic Equipment
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..

More About Products

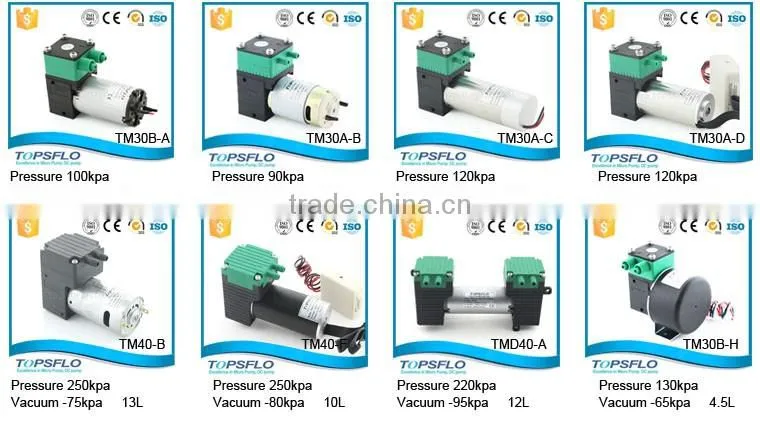

Micro diaphragm air pump/ vacuum pump TM series

Model	Product Name
TM30A-A	Brush small air pump/vacuum pump
TM30A-B	Brush small air pump/vacuum pump
TM30A-C	Brushless small air pump/vacuum pump
TM30A-D	Brushless small air pump/vacuum pump(PWM 0-5V speed control)
TM30B-A	Brush small air pump/vacuum pump
TM30B-C/D	Brushless small air pump/vacuum pump(PWM 0-5V speed control)
TM30B-H	Brushless small air pump/vacuum pump
TM40-A	High pressure /vacuum brush air pump
TM40-B	High pressure /vacuum brush air pump
TM40-C	High pressure /vacuum brushless air pump
TM40-E/F	High pressure /vacuum brushless air pump (PWM 0-5V speed control)
TMD40-F	High pressure /vacuum brushless air pump (PWM 0-5V speed control)
