Microplate Washer Waste Water Treatment Pump
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | TOPSFLO | Model Number | TF30D-C | |
| Theory | Other, liquid vacuum,suction,self-priming,pressurize | Structure | Diaphragm Pump | |
| Usage | Other, a variety of liquid | Power | Electric | |
| Standard or Nonstandard | Other, Standard,customized | Fuel | Other, DC power, Battery | |
| Pressure | Other, vacuum 55kpa,water head 10M | Application | Other, Gas detection devices, Sewage disposal,Patient Monitoring |
Product Description

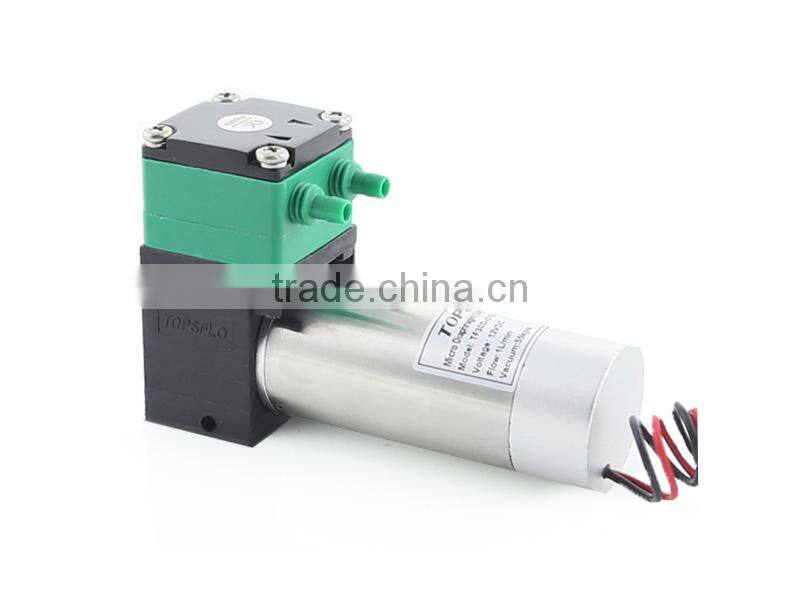

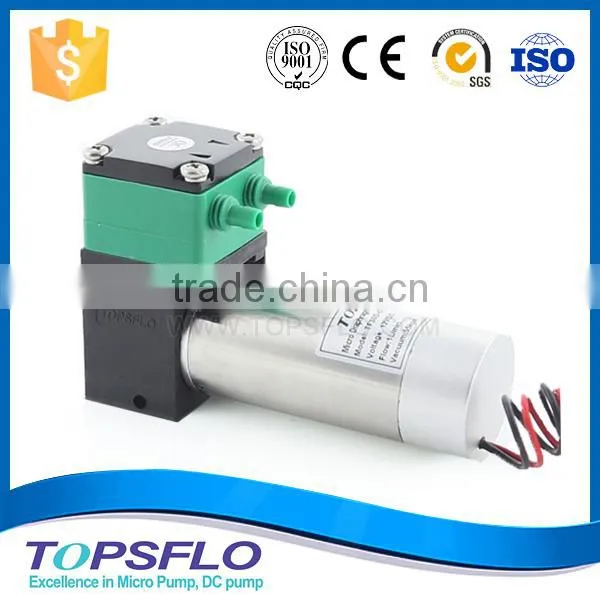

Microplate Washer Waste water treatment pump
Specification:
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Head | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (M) | (KPa) | (L/min) | |
| TF30D-C | TF30D-C12-W101(inside controller) | TF30D-C12-V5505 | 6/12/24 | 0.4/0.24/0.15 | ≥10 | -55 | water: 1 gas: 5 |
| TF30B-D | TF30D-D12-W101 (outside controller) | TF30D-D12-V5505 ( outside controller) | 6/12/24 | 0.4/0.24/0.15 | ≥10 | -55 | water: 1 gas: 5 |
" W " means water/liquid pump, " / V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||
| Pump Weight:250g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM ( PTFE/FPM type should be ≤0.8L) | |||||||
| Motor type and code:“C”means Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) “D”means Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. | |||||||
Product Feature
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps
have proved themselves in the following areas:
Industrial liquid and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Printer ink machine
Fireplace
Respiration Monitors
air pup
If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
