12v dc Mini Air Pump
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TOPSFLO
Model Number:
GLP-P2
Structure:
Diaphragm Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V or 24V High Performance Air Pump / DC Mini Diaphragm PumpUS$ 39 - 40MOQ: 200 Pieces -
Mini Air Vacuum PumpNegotiableMOQ: 200 Pieces
-
dc Diaphragm Vacuum Pump 6v 12v 24v, Diaphragm Air Pump 12vNegotiableMOQ: 200 Pieces
-
Mini Vacuum and Air Pump (DC Brush Motor)NegotiableMOQ: 200 Pieces
-
Micro Diaphragm Brushless 12v 24v dc Compressed Air Analyzer PumpNegotiableMOQ: 10 Pieces
Brand Name
TOPSFLO
Model Number
GLP-P2
Structure
Diaphragm Pump
Usage
Air Pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, DC power, Battery
Pressure
High Pressure
Application
Other, Gas transferring and evacuating

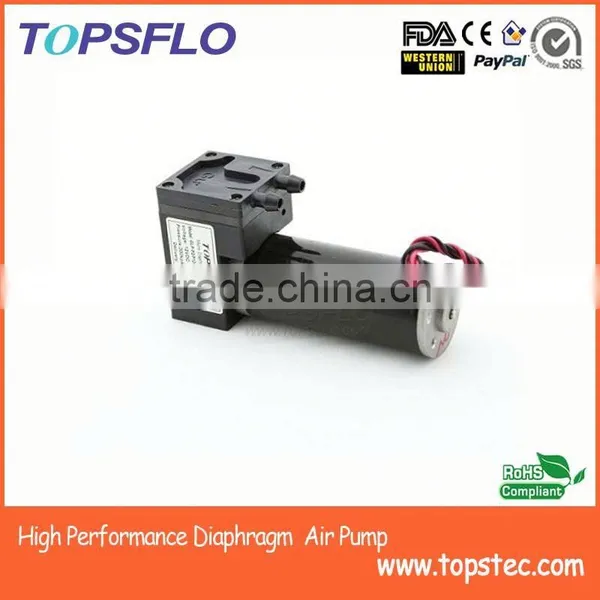

GLP-P2 12v dc mini air pump
Mini Air Pump
Mini Diaphragm Pump
Technical features:
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. Long life,High efficiency
5. Compact size, Low Weight
6. Low noise level&vibration
7. Maintaince free.
8. High level of water tightness thanks to the closed
diaphragm surface and special sealing system.
9. Can operate in any installed position
Note: pump can be started at the loaded situation, especially 24Vdc with very well performance of this, if needed this function more suggested to choose 24V.
Application:
Gas detection devices Sewage disposal
Patient Monitoring Wide-Format Printer
Blood Pressure Monitor Bio-Chemical Analyzer
Gas massage products Electrolyte
Lab equipment Beauty equipment
Microplate Washer Chemistry analysis
Airpler Vacuum transfer
Aatic Tourniquet Autoclave
Working Way:
interruption or continues
lifetime 2000~3000 hours
Material:
pump head: PPB
membrane :PTFE
valve:PTFE
Dimension (mm)
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
| GLP-P2/ P12,P24-D30006 | GLP-P2/ V12,V24-D7006 | 12 / 24 | 0.38/0.20 | >300 | -70 | 6 | |
| GLP-P2/ P12,P24-D20004 | GLP-P2/ V12,V24-D6004 | 12 / 24 | 0.38/0.20 | >200 | -60 | 4.5 | |
| GLP-P2/ P12,P24-D15003 | GLP-P2/ V12,V24-D5003 | 12 / 24 | 0.38/0.20 | >150 | -50 | 3 | |
| GLP- P2 | GLP-P2/ P12,P24-E40008 | GLP-P2/ V12,V24-E8008 | 12 / 24 | 0.40/0.22 | >400 | -80 | 8 |
| GLP-P2/ P12,P24-E25005 | GLP-P2/ V12,V24-E6005 | 12 / 24 | 0.38/0.20 | 250 | -60 | 5 | |
| GLP-P2/ P12,P24-E15003 | GLP-P2/ V12,V24-E5003 | 12 / 24 | 0.34/0.17 | 150 | -50 | 3 | |
| / | GLP-P2/ V12,V24-F8013 | 12 / 24 | 0.48/0.20 | / | -80 | 13 | |
| GLP-P2/ P12,P24-F20010 | GLP-P2/ V12,V24-F6510 | 12 / 24 | 0.46/0.25 | >200 | -65 | 10 | |
| GLP-P2/ P12,P24-F15006 | GLP-P2/ V12,V24-F5506 | 12 / 24 | 0.34/0.20 | 150 | -55 | 6 | |
| " / P " means pressure pump, " / V " means vacuum pump, 3, 6, 9, 12, 24 means different voltages. | |||||||
| All D, E, F type: weight 300g, size 35*52*100mm P / V: P12,P24 means pressure pump 12V,24V; V12,V24 means vacuum pump 12V,24V. | |||||||
| Note: 1. comparing with GLP-P1 series pump with stronger loaded ability but lower noise&vibration. 2. F type not very recommended as loaded starting air-pressure pump. 3. comparing with membrane air pump the Piston air pump with more strong higher pressure loaded ability, lower noise, and 3times longer lifetime. 4. comparting with membrane air pump the Pistion air pump with advantage of can be started at loaded pressure condition, the pump recommendation Max Pressure should be ≥50kpa than the loaded starting pressure which required, and 24Vdc with more strong loaded starting ability than 12Vdc. 5. when air pressure reach to the highest pressure point need to stop the pump, not suggested to long time continuous working under this highest point, or else will short the pump lifetime. 6. comparing with the TZ economic series, pump with general more stable and higher performance for it's importing bearing, high quality endurance piston, higher performance motor, good design. | |||||||
