High Performance 6V 12V 24V Gas Pump
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
6V 12V 24V Air Pump/ Diaphragm Mini Air Pump
-
130kpa Pressure Mini Air Vacuum Pump DC,65kpa Vacuum Mini Air Vacuum Pump dc
-
12v dc Mini Air Pump
-
Low Power Consumption Solar Powered Circulating Pump System,solar Powered Pump
-
Solar 17V dc Miniature dc Power Pump
-
Start-up 1 Watt Solar 17V dc Miniature Solar System Pump
Product Details
| Brand Name | TOPSFLO | Model Number | TM30A-A | |
| Theory | Vacuum Pump | Structure | Diaphragm Pump | |
| Usage | Air Pump | Power | Electric | |
| Standard or Nonstandard | Standard | Fuel | Other, DC power, Battery | |
| Pressure | High Pressure | Application | Other, Gas transferring and evacuating, Industrial pressure and vacuum applications |
Product Description

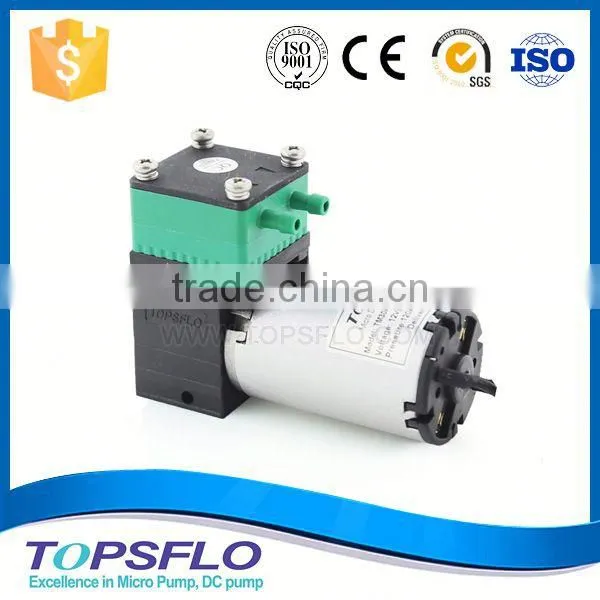

High Performance 6V 12V 24V Gas Pump
Product Specification
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
| TM30A-A | TM30A-A12- P12006 | TM30A-A12-V7006 | 6 /12 / 24 | 0.4/0.24/0.15 | 120 | -70 | 6 |
| " P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||

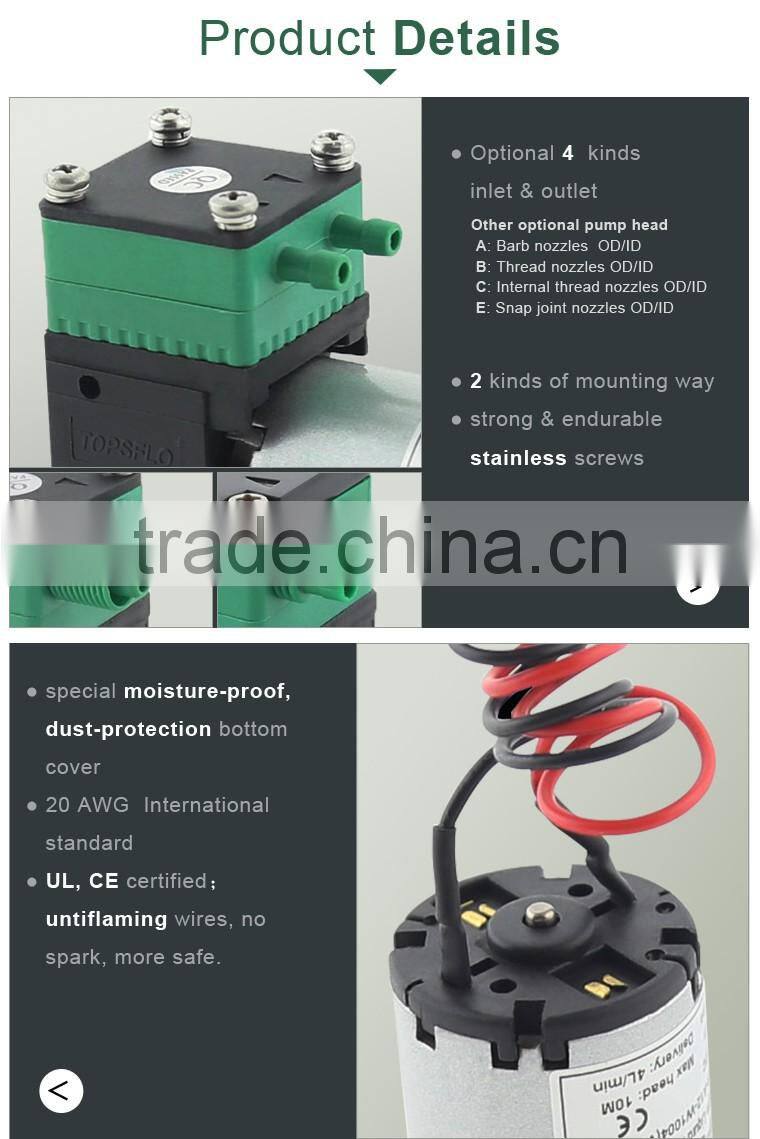

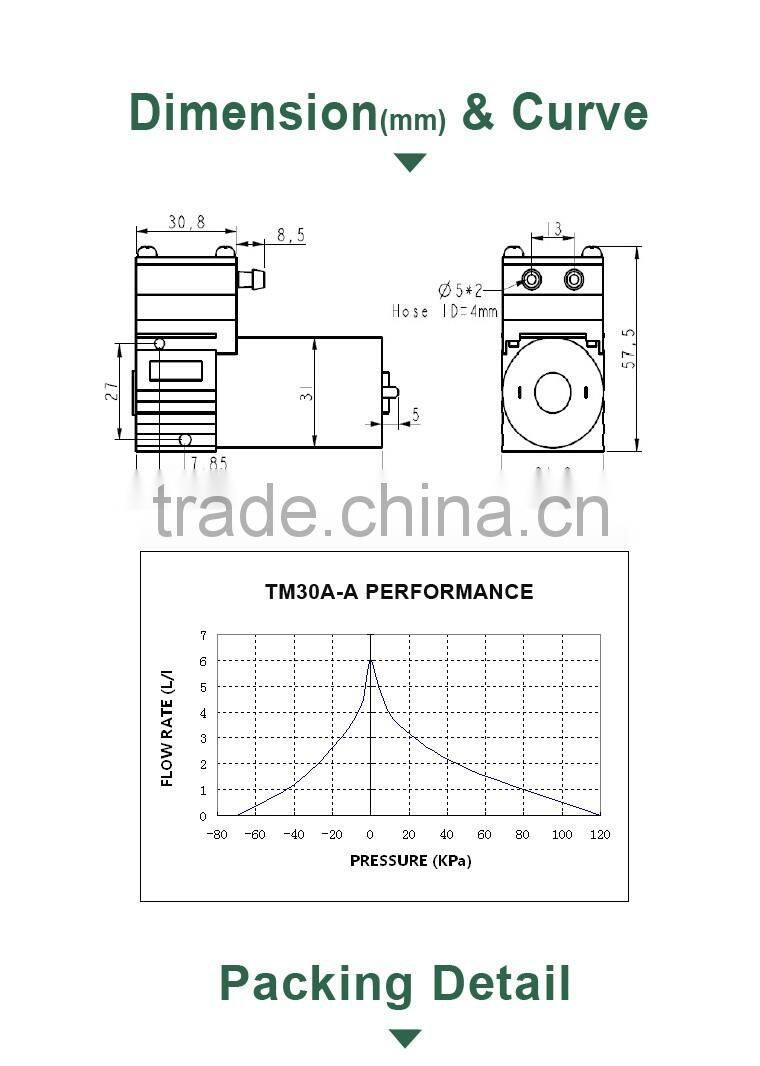

| Pump Weight:220g; Pump Size:80mm*31mm*58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | |||||||

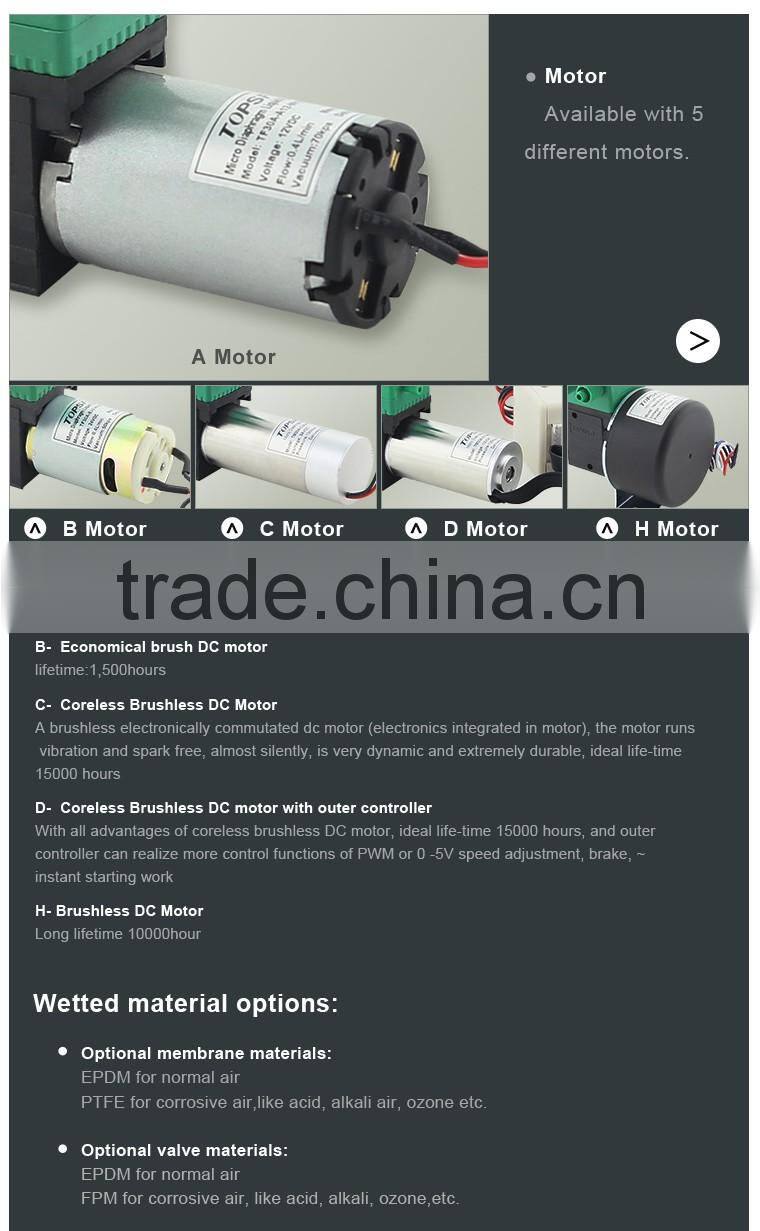

| Motor type and code:“A”:premium duty brush DC motor (reference lifetime 3,000hours),longer endurance lifetime than other normal DC membrane pump | |||||||
• Highest Performance/Size Ratio

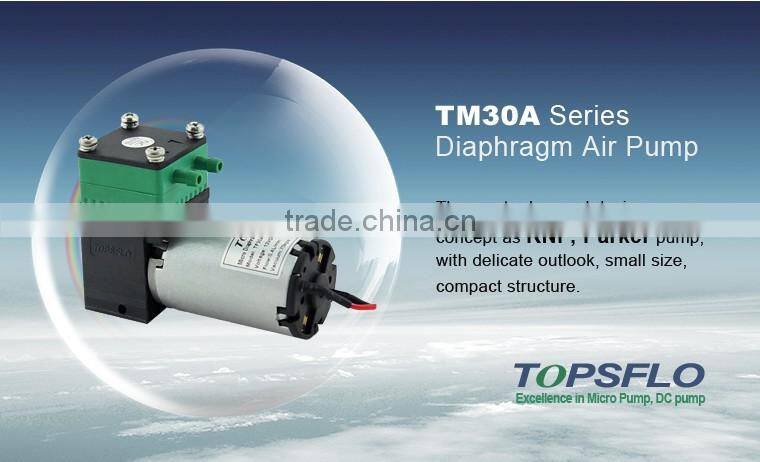

Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
• Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
• Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
• Uncontaminated flow
No contamination of the media due to oil-free operation
• Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
• High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
• Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other material combinations for the parts which allows the corrosive gas to be pumped.
• Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..

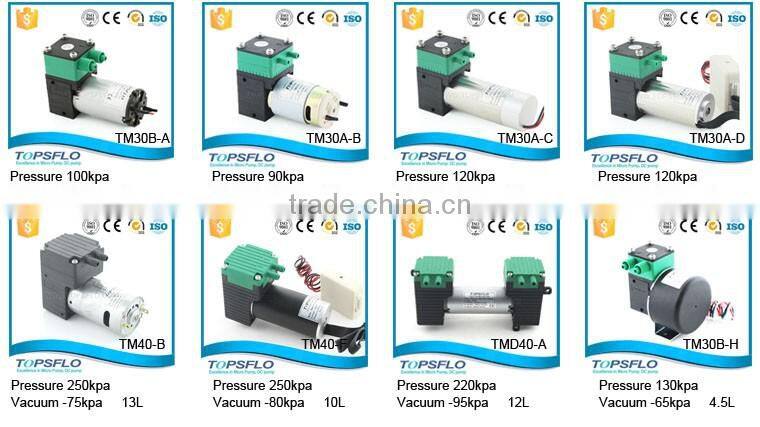

Micro diaphragm air pump/ vacuum pump TM series
| Model | Product Name |
| TM30A-A | Brush small air pump/vacuum pump |
| TM30A-B | Brush small air pump/vacuum pump |
| TM30A-C | Brushless small air pump/vacuum pump |
| TM30A-D | Brushless small air pump/vacuum pump(PWM 0-5V speed control) |
| TM30B-A | Brush small air pump/vacuum pump |
| TM30B-C/D | Brushless small air pump/vacuum pump(PWM 0-5V speed control) |
| TM30B-H | Brushless small air pump/vacuum pump |
| TM40-A | High pressure /vacuum brush air pump |
| TM40-B | High pressure /vacuum brush air pump |
| TM40-C | High pressure /vacuum brushless air pump |
| TM40-E/F | High pressure /vacuum brushless air pump (PWM 0-5V speed control) |
| TMD40-F | High pressure /vacuum brushless air pump (PWM 0-5V speed control) |
