Water Filling Packing Machinery

Water Filling Packing Machinery photo-1
Water Filling Packing Machinery photo-2

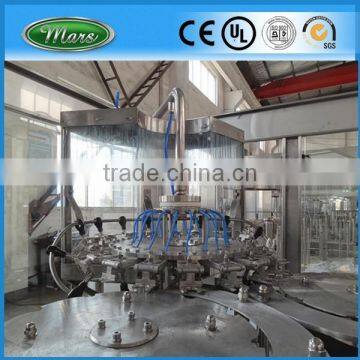

Water Filling Packing Machinery photo-3
Water Filling Packing Machinery photo-4
US$ 16,000 - 19,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220v 380v
Power 3kw
Place of Origin Jiangsu, China
Brand Name Mars
Model Number CGF18-18-6
Dimension(L*W*H) 2600X1920X2550mm
Weight 3500kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Water Filling Packing Machinery



Introduce:
   pure water filling machine is a full-automatic multiple-funcition washing, filling and capping unit.

   It is used in all kinds of no gas cintained liquid, such as fruit juice,  wine, mineral water and pure water.



Water Filling Packing Machinery



Features for Water Filling Packing Machinery :
1. There are some features such as compact conformation, good shape, cozy operation, excellent automatic and poor labor intensity.

2. We adopt air conveyor bottle-feeding technology instead of the feeding screw and conveyer chain. Easily change the bottle change over parts.

3. Bottle pure water filling packing Machine adopts the blocking bottleneck technology to convey bottles.

    Bottle pure water filling packing Machine does not adjust the height of equipment when the type of bottle is exchanged. According to the diameter of bottle, you could exchange corresponding nylon elements such as arc slipper guide, thumb wheel etc.



Water Filling Packing Machinery



Main Technical Parameters for Water Filling Packing Machinery :

Main Technical Parameters
Model CGF16126 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020
Heads of  Washing,Filling,Sealing 16-12-6 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20
Production Capacity 2000-4000 5000-7000 8000-12000 12000-15000 16000-20000 20000-24000 25000-30000 35000-40000
(bottle/hour)
Suitable bottle diameter φ=50-110=170 330-2250ml
Spraying pressure 2-3

  2.2kw 2.2kw 3kw 5.5kw 7.5kw 11kw 15kw 19kw
overall dimensin 2400×1650 2600×1920 3100×2300 3800×2800 4600×2800 5450×3300 6500×4500 76800×66400
(L×W×H) ×2500 ×2550 ×2800 ×2900 ×2900 ×2900 ×2900 ×2850
Weight(kg) 2500 3500 4500 6500 8500 9800 12800 15000



            Water Filling Packing Machinery



Water Filling Packing Machinery



                                            Water Filling Packing Machinery

Water Filling Packing MachineryWater Filling Packing MachineryWater Filling Packing MachineryWater Filling Packing MachineryWater Filling Packing MachineryWater Filling Packing Machinery
