US$ 19,000 - 22,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CGF32-32-10 5500KG Full Automatic Water Filling Machine For Plastic BottleUS$ 35,000 - 39,000MOQ: 1 Piece -
Small Water Filling MachineUS$ 66,000 - 70,000MOQ: 1 Piece
-
Water Bottling PlantUS$ 61,000 - 63,000MOQ: 1 Piece
-
Mineral Water Filling Machine CEUS$ 20,000 - 21,000MOQ: 1 Piece
-
PET Bottle Drinking Water Filling MachineUS$ 25,000 - 26,000MOQ: 1 Piece
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220v
Power
2.2KW
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
CGF18-18-6
Dimension(L*W*H)
2460x1720 x2650mm
Weight
3500kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

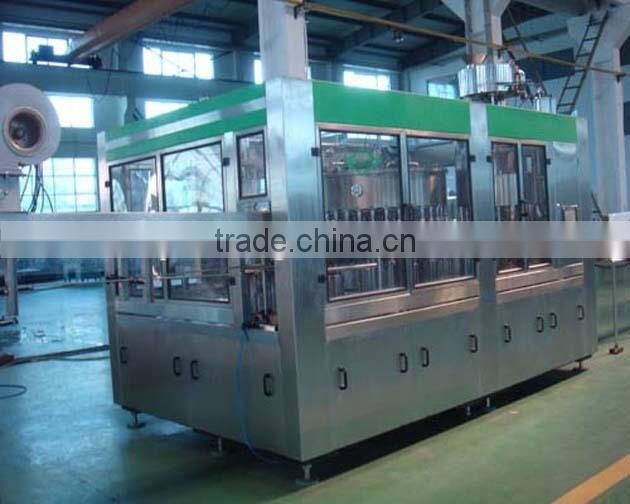

Rinser Filler Capper For Bottle
Features
- Adopt Taiwan Airtac pneumatic components, simple operation, high filling precision;
- Use 304 stainless steel construction of the material contact part, optional 304 or 316 stainless steel;
- Stainless steel valve system design;
- Can be operated by foot pedal or by automatic timer, could transfer between semi-automatic and automatic;
- Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations;
- Extremely easy to chean and maintain;
- Quick release nozzle and feed pipe;
- Small footprint for simple bench mounting;
- Optional type 10-150ml 20-300ml 50-600ml 200-1200ml 500-2600ml 1000-5000ml;
- Filling capita single head, two head;
- Conform to GMP;
Technical Data for Rinser Filler Capper For Bottle
| Model | CGF14-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-12 | CGF60-60-15 | ||
| Washing,-Filling-Capping | 14-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | ||
| Producing capacity (600ml) | 2000-3000 (bph) | 4000-6000 (bph) | 8000-12000 (bph) | 12000-15000 (bph) | 16000-20000 (bph) | 20000-24000 (bph) | 25000-30000 (bph) | ||
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L | ||||||||
| Pressure (kg/cm2) | 2~3 | ||||||||
| Outside vacuum pump power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw | ||
| Overall dimension (mm) (LxWxH) | 2100x1400 x2500 | 2460x1720 x2650 | 3100x2100 x2650 | 3500x2500 x2650 | 4600x1800 x2650 | 5200x4500 x3400 | 6500x4500 x3400 | ||
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | 9800 | ||
Rinser Filler Capper For Bottle
