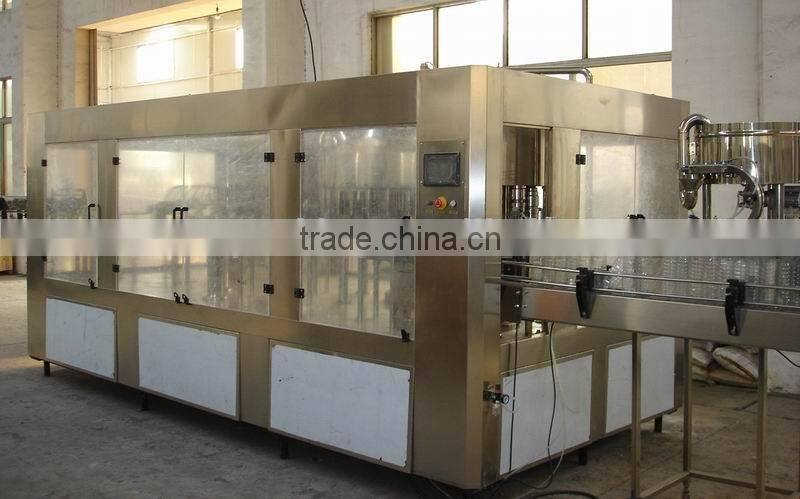

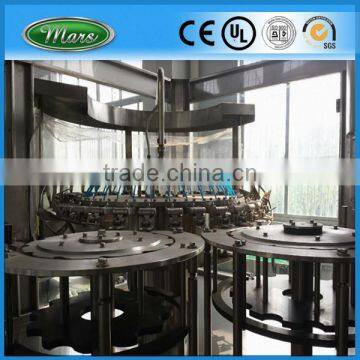

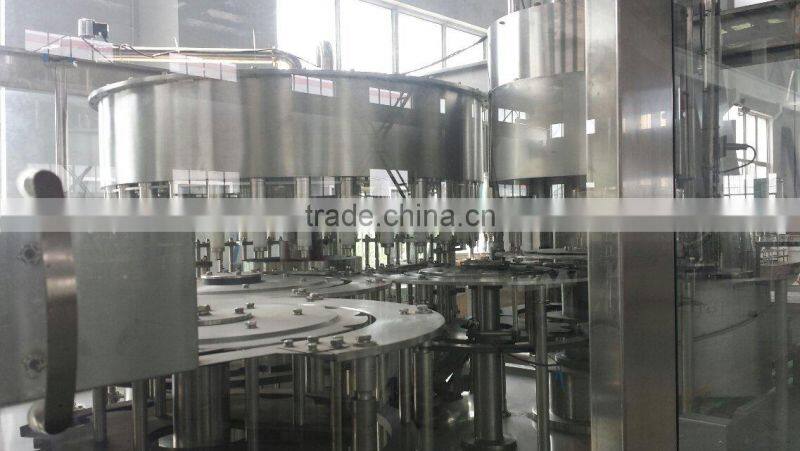

CGF32-32-10 5500KG Full Automatic Water Filling Machine For Plastic Bottle
US$ 35,000 - 39,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Water Filling MachineUS$ 66,000 - 70,000MOQ: 1 Piece -
Water Bottling PlantUS$ 61,000 - 63,000MOQ: 1 Piece
-
Mineral Water Filling Machine CEUS$ 20,000 - 21,000MOQ: 1 Piece
-
PET Bottle Drinking Water Filling MachineUS$ 25,000 - 26,000MOQ: 1 Piece
-
Pure Water Filling MachineUS$ 69,800 - 70,000MOQ: 1 Piece
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220/380V
Power
2.2kw
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
CGF32-32-10
Dimension(L*W*H)
3500x2500x2650MM
Weight
5500KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Full Automatic Water Filling Machine For Plastic Bottle
Juice Bottling Machine / Mineral Water Production Line-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Water filling Machine model detail
| Technical Data | ||||
| Model | CGF14/12/4 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 |
| The number of Washing, Filling, Capping | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-8 |
| Producing capacity; The number of bottle(600ml)/hour | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension (mm) (LxWxH) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
| Technical Data | |||
| Model | CGF40/40/12 | CGF48/48/12 | CGF60/60/15 |
| The number of Washing, Filling, Capping | 40-40-12 | 48-48-12 | 60-60-15 |
| Producing capacity: The number of bottle(600ml)/hour | 16000-20000 | 20000-24000 | 25000-30000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
| Overall dimension (mm) (LxWxH) | 4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Weight(kg) | 6800 | 7600 | 9800 |
