Plastic Liquid Water Filling Machine

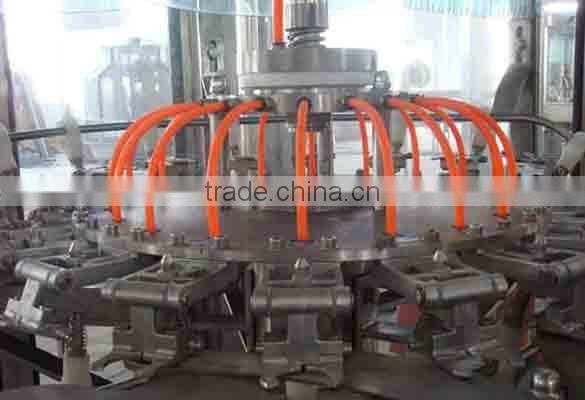

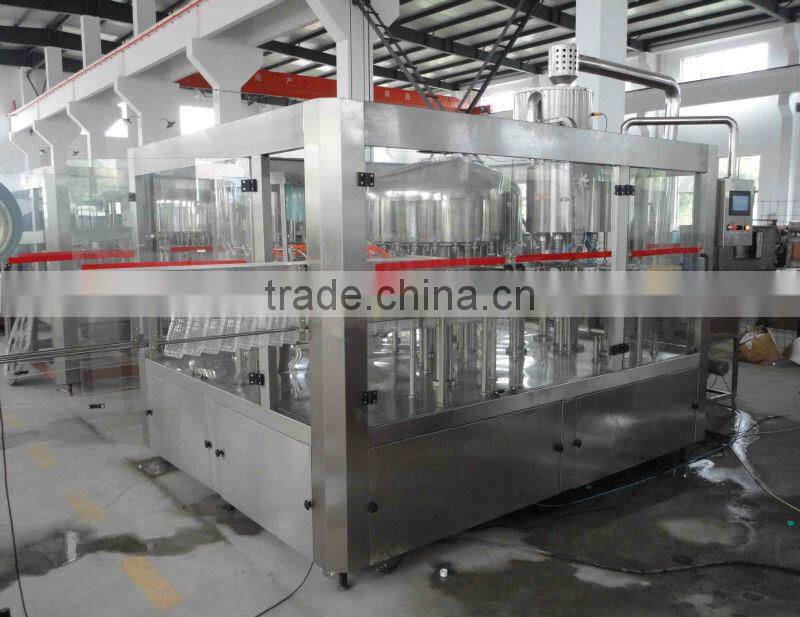

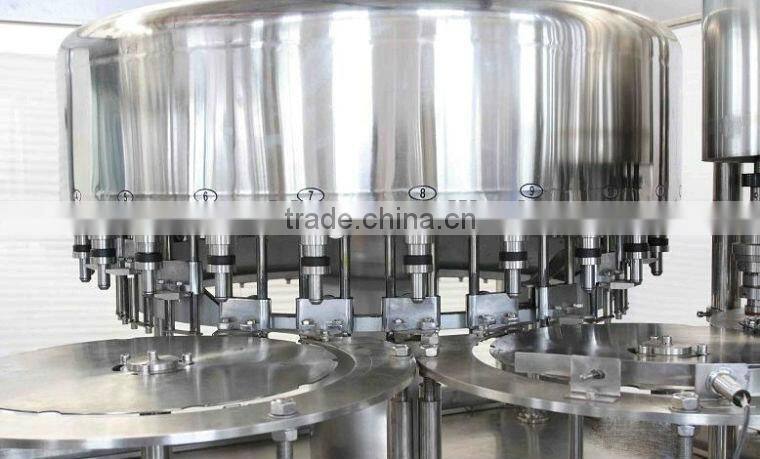

Plastic Liquid Water Filling Machine photo-1

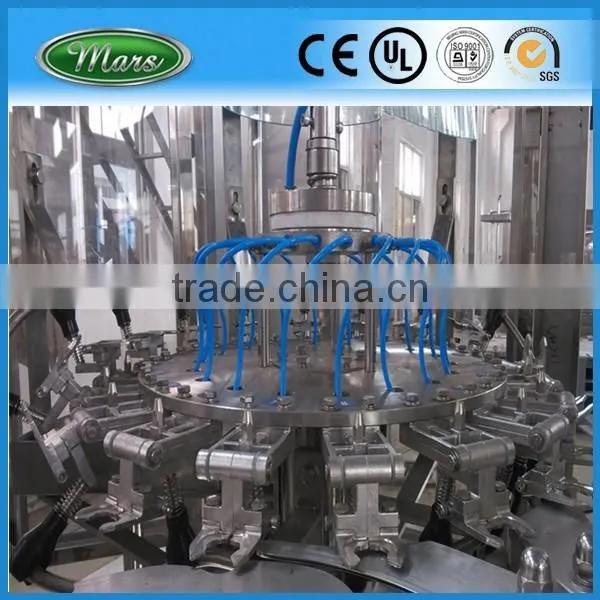

Plastic Liquid Water Filling Machine photo-2

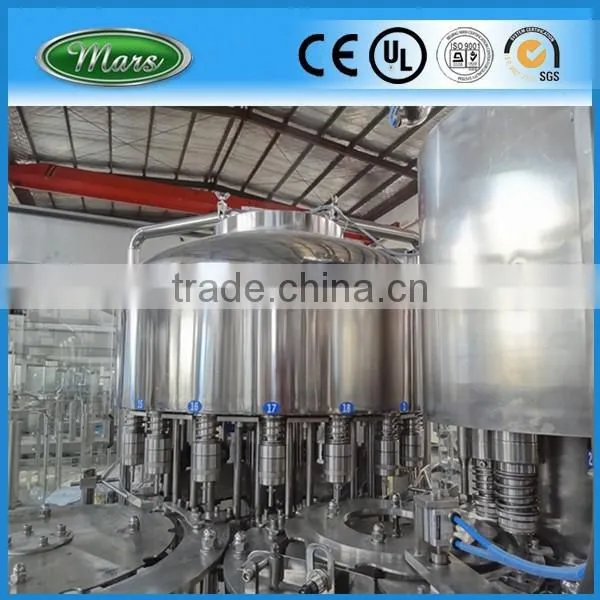

Plastic Liquid Water Filling Machine photo-3

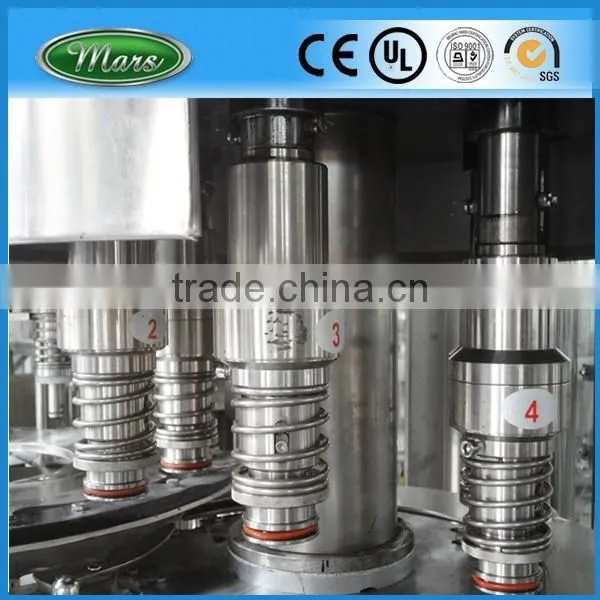

Plastic Liquid Water Filling Machine photo-4

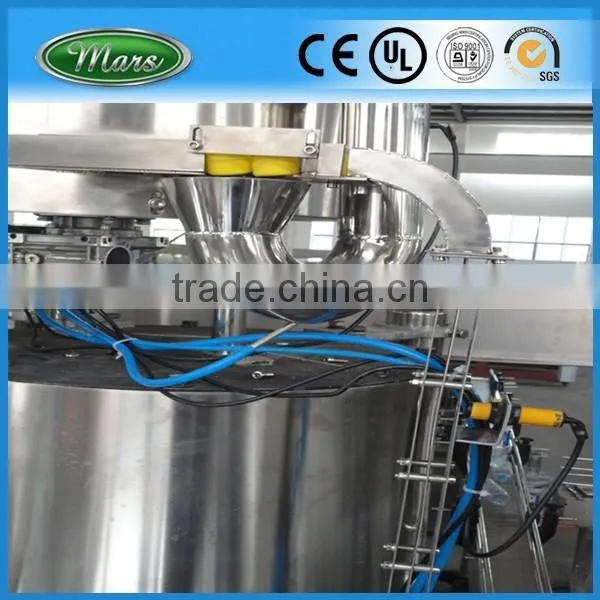

Plastic Liquid Water Filling Machine photo-5
US$ 15,000 - 18,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220v 380v
Power 4.4-13kw
Place of Origin Jiangsu, China
Brand Name Mars
Model Number CGF16/12/6
Dimension(L*W*H) 2230*1630 *2250mm
Weight 2300kg
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

Plastic Glass Liquid Water Filling Machine



1.plastic glass liquid water filling machine Recommendation

The filling machines is mainly used for washing,filling sealing Non-Aerated carbon dioxide drink such mineral water, pure water,non-gas wine drink and so on. The filling machines design is shorten the time for the drink material contact with outside,Increased the sanitation condition and throughout and economy benefit.

 Plastic Liquid Water Filling Machine



2.Capability Character of plastic glass liquid water filling machine



The filling machines adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.



3.Main Technological Data of plastic glass liquid water filling machine



             Plastic Liquid Water Filling Machine



Main Parameter for Plastic Liquid Water Filling Machine

Model(CGF)

14-12-5

18-18-6

24-24-8

32-32-8

40-40-10

50-50-12

60-60-15

Capacity(500/ml/bottle/h)

3000-4000

6000-8000

8000-10000

12000-14000

16000-18000

20000-24000

25000-28000

Suitable bottle shape

PET circular or square

Bottle diameter(mm)

50-90

Bottle height(mm)

150-310

Compressed air pressure(MPa)

0.3-0.7

Washing medium

aseptic water

Washing water’s pressure(MPa)

0.25

Total Power(KW)

4.4

4.4

5.2

6.2

7.8

10

13

Overall dimensions(mm)

2230*1630

*2250

2360*1830

*2250

2900*2200

*2250

3880*2200

*2250

3700*3000

*2350

4500*3300

*2350

5500*4000

*2450

Weight(kg)

2300

2500

4200

6000

6800

9500

11000



Plastic Liquid Water Filling Machine

Plastic Liquid Water Filling MachinePlastic Liquid Water Filling MachinePlastic Liquid Water Filling MachinePlastic Liquid Water Filling Machine

Plastic Liquid Water Filling MachinePlastic Liquid Water Filling Machine
