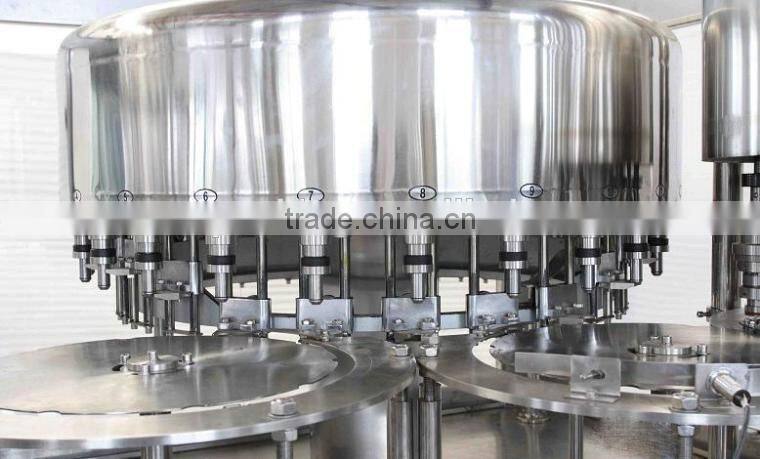

Small Water Filling Plant
Features:
1. The suspending bottleneck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
2. The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3. The advanced micro negative-pressure filling technology used in this machine makes the filling quick, steady and accurate. The beverage -holding tank is fully-closed and also, temperature control device and CIP washing interface are intalled.
4. This machine can meet all the technical requirements for hot filling below 95 degree. And before capping, bottle mouth will be cleaned by RO washing device.
5. Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
Specification for Small Water Filling Plant :
1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.
2. Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.
3.Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
4. No Bottle No Filling, no caps no capping, no caps auto stops
5. When bottle jam auto stop, machine accident auto stop
6. Open the window when machine running, machine auto paused
7. Heavy duty stainless steel filling pump & rinsing pump
8. Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles
9. Adopted first class component from Mitsubishi, OMRON, SIEMEN, With PLC, invertors control, touch screen, sensor, switch and other electric parts
10.Machine and cable arrangement designed according to CE standard and all safety standard.
Parameters for Small Water Filling Plant
1.Electrical elements: |
|
Pump |
Mars pump |
Switch |
Omron |
Electromotor |
Shanghai Motor |
2.Suitable bottle: |
|
Round or square plastic bottle |
|
Bottle size |
|
Bottle body:Φ90mm, |
Bottle height H=150-320mm |
Bottle neck diameter:Φ20-Φ35mm |
|
Cap: |
Plastic screw cap |
Cap size: |
|
DiameterΦ25-Φ35mm |
Cap height=15-25mm |
3.Main parameters: |
|
Production capacity: |
500ml,3000BPH |
Position: |
Washer8, filler8, capper3 |
Filling temperature: |
Normal filling,gravity filling |
Air pressure: |
0.6mpa(self-prepare) |
4.Motor powder: |
|
Main motor: 1.5kw |
Capper loading:0.09kw |
Washing pump: 0.37kw |
Filling pump: 0.37kw |
Convoying motor:0.55kw |
Air conveyor motor:0.75kw |
