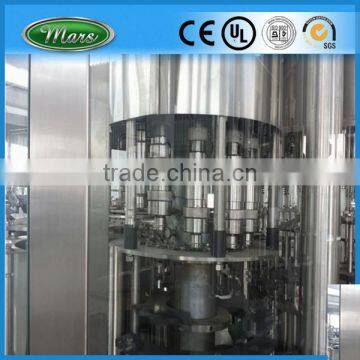

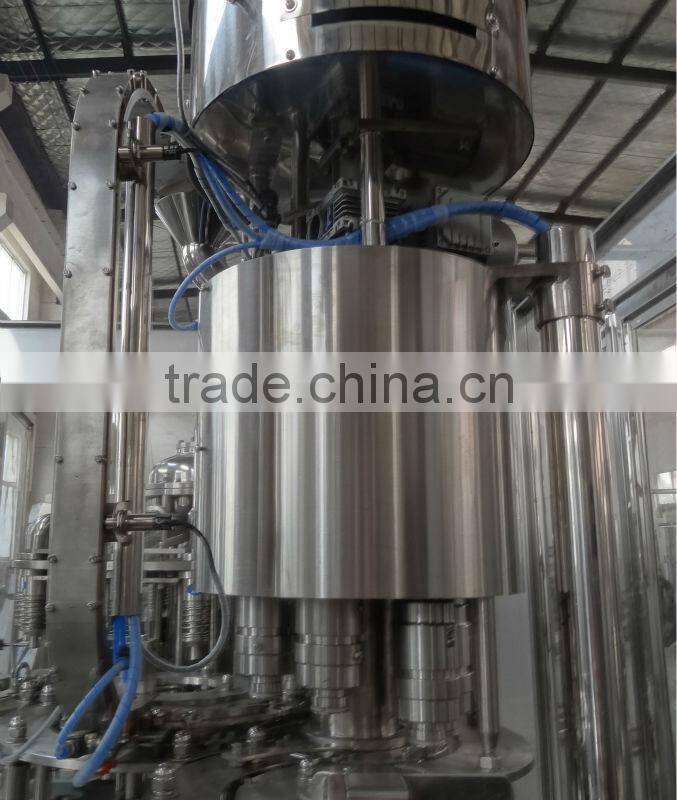

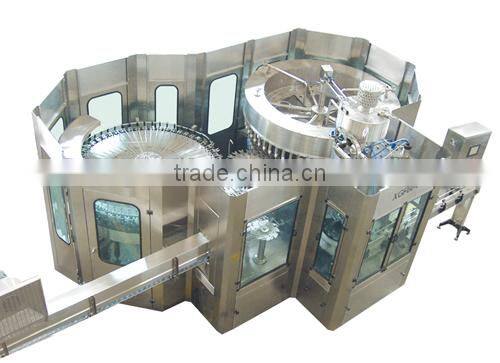

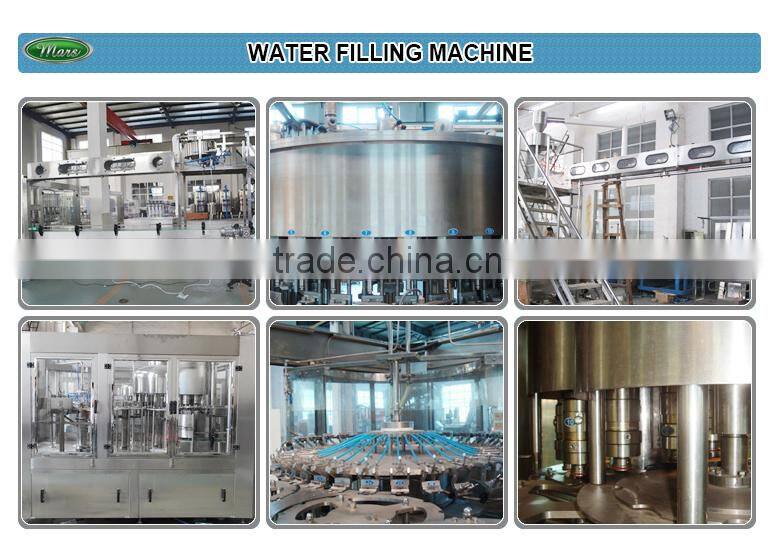

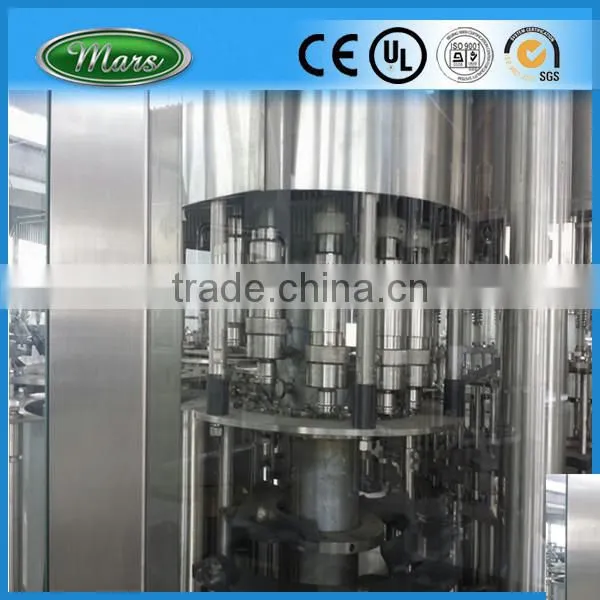

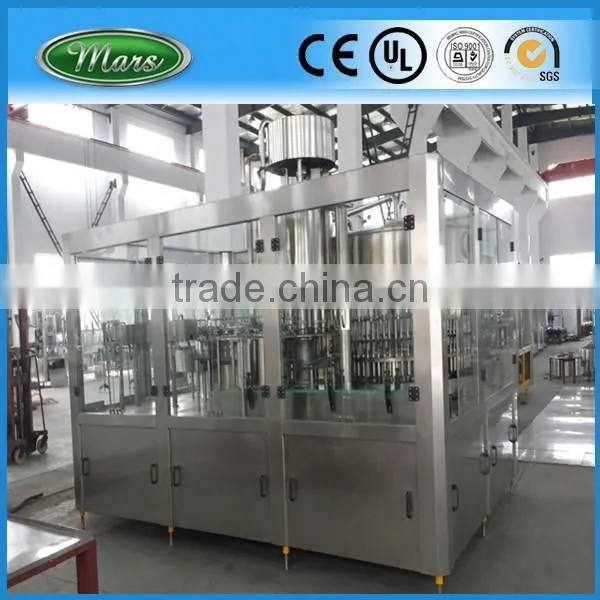

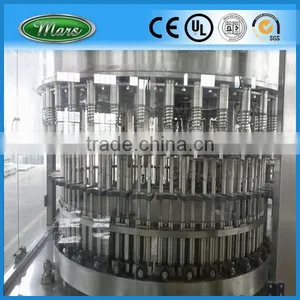

Water bottle washing filling capping machine
Introduce
*this machine is fit for filling water
*the machine can carry out the three functions of bottle washing , filling , capping.
*the advanced programmed controller (PLC) is adopted to control the machine running automatically.
*the bottle entry section adopts air conveyor system.
*the bottle exit section adopts belt conveyor system,which can adjust the speed.
*the machine are high quality,the key spare-parts are made buy famous producer.
Specifications for Water Bottle Washing Filling Capping Machine
Model |
CGF16/12/6 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/10 |
CGF40/40/12 |
Washing Heads |
16 |
18 |
24 |
32 |
40 |
Filling Nozzles |
12 |
18 |
24 |
32 |
40 |
Capping Heads |
6 |
6 |
8 |
10 |
12 |
|
Capacity Base on 500ml |
4000 |
6000 |
10000 |
15000 |
18000 |
Power (KW) |
2.5 |
3.5 |
4 |
5.0 |
7.5 |
Dimension (m) |
2.0X1.5X2.2 |
2.52X2.02X2.7 |
3X2.2X2.8 |
4.16X2.86X2.9 |
4.55X3.25X2.9 |
Weight (kg) |
2500 |
3500 |
5500 |
8000 |
10000 |
Features for Water Bottle Washing Filling Capping Machine :
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottl-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, OMRON.
Quatity control.
*Fixed Equipment for Quality Control
*Professional team for Quality Control
*Randomly checking before get in warehouse
After sale service
*One year warranty for the whole system .
*Free equipment installation and debugging.
*After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
*Every 3 year , we can help to overhaul the machine freely(labor).
*We can provide internship service and help you train the operator and mechanic.
*Free beverage production technology and process configuration.
*We can help you to design the product line , workshop and provide turn-key project.
