Water Bottling Systems

Water Bottling Systems photo-1

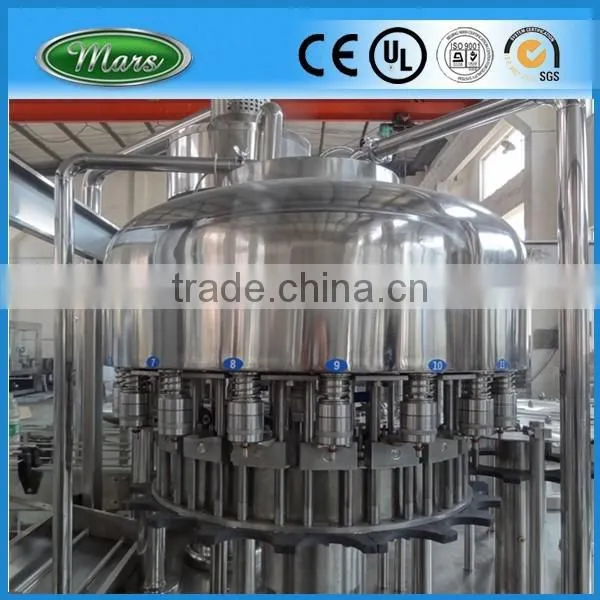

Water Bottling Systems photo-2
Water Bottling Systems photo-3
Water Bottling Systems photo-4
Water Bottling Systems photo-5
Water Bottling Systems photo-6
US$ 16,000 - 19,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel, Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Barrel, Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 2.2kw
Place of Origin Jiangsu, China
Brand Name Mars
Model Number CGF18-18-6
Dimension(L*W*H) 2400X1650 X2500MM
Weight 2500KG
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

2016 High Quality Automatic bottling system



Desctiption

(1) This bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.

(2) Bottle washing, filling and capping are achieved in one machine.

(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.



(4) CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.

(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

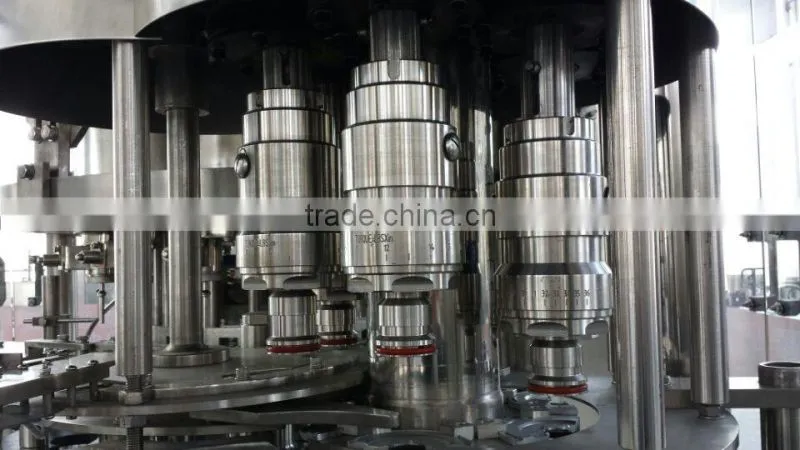

Water Bottling Systems



Main Accesories For  Water Bottling Systems

  • Imported parts of apparatus. controlled with LG programmed controller.
  • Turk parts of checking made in Germany.
  • Imported sprayers with explorer.
  • Yadek air pressing parts made in Taiwan, China.
  • Stainless steel roller structure especially made by datong company has high steenght, no bottles falling long life Automatic bottles lowing and meeting equipmentwith credible function.
Water Bottling Systems

Technical Parameter For Water Bottling Systems

Model



CGF12125



CGF18186



CGF24248



CGF323210



CGF404012



CGF505012



CGF606015



CGF808020



Number of washing, filling and capping heads



12-12-5



18-18-6



24-24-8



32-32-10



40-40-12



50-50-12



60-60-15



80-80-20



Production capacity(600ml)
(B/H)



2000-4000



5000-7000



8000-12000



12000-15000



16000-20000



20000-24000



25000-30000



35000-40000



suitable bottle specification(mm)



φ=50-110 H=170 volume=330-2250ml



Washing  pressure(kg/cm 2 )



2-3



Motor power(kw)



Main motor
2.2kw



Main motor
2.2kw



Main motor
3kw



Main motor
5.5kw



Main motor
7.5kw



Main motor
11kw



Main motor
15kw



Main motor
19kw



Overall dimensions (mm)



2400×1650
×2500



2600×1920
×2550



3100×2300
×2800



3800×2800
×2900



4600×2800
×2900



5450×3300
×2900



6500×4500
×2900



76800×66400
×2850



Weight (kg)



2500



3500



4500



6500



8500



9800



12800



150
