Mineral Water Processing Line

Mineral Water Processing Line photo-1
Mineral Water Processing Line photo-2
Mineral Water Processing Line photo-3
US$ 17,000 - 18,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380v,50HZ
Power 2.2-15kw
Place of Origin Jiangsu, China
Brand Name Mars
Model Number CGF18-18-6
Dimension(L*W*H) 2500*1700*2500mm
Weight 3200kg
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

Mineral Water Processing Line

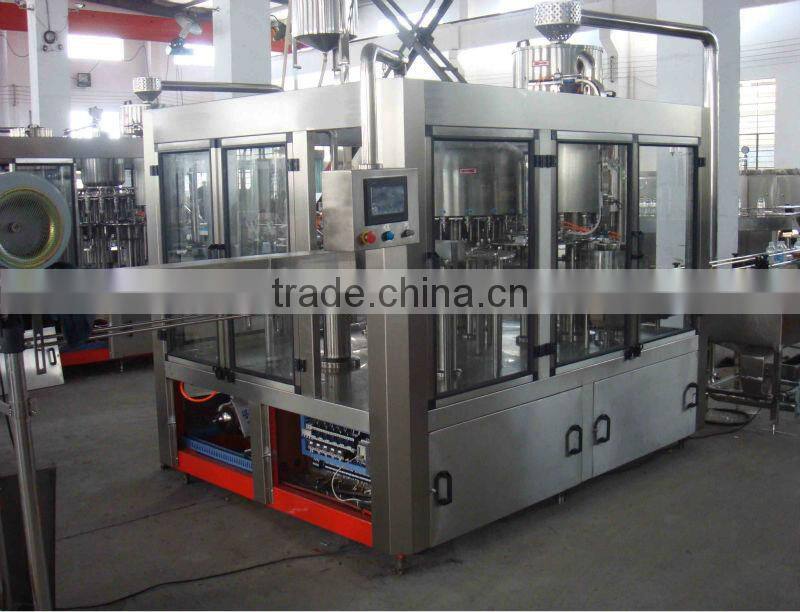

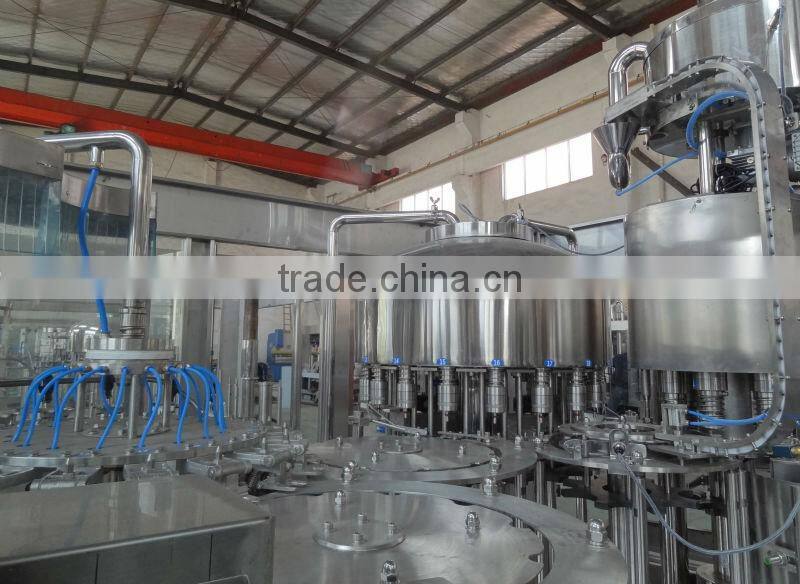

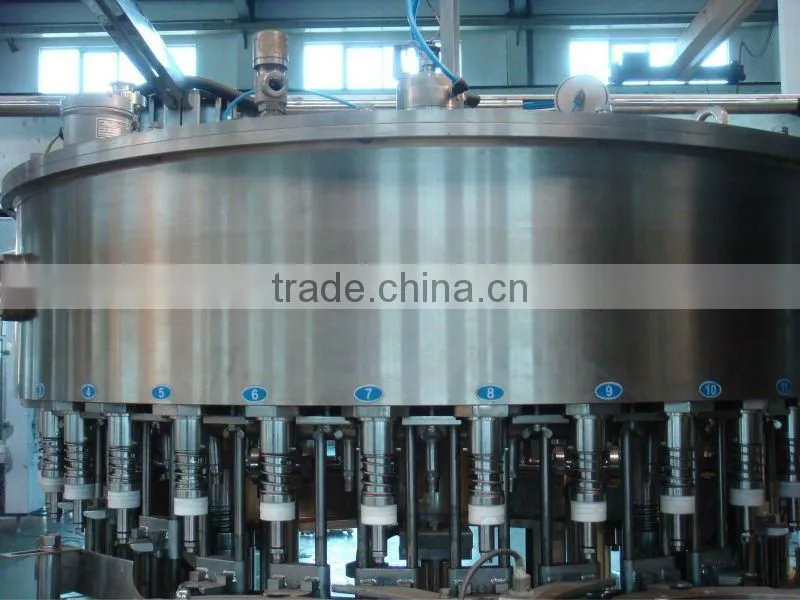

The mineral water processing monoblock is unique design combing the three machine of bottle washing,filling and capping in one to decrease main power,to save space and to diminish the air pollution among the three machines.

 Mineral Water Processing Line



Mineral Water Process

mineral water processing monoblockis applicable for mineral water and pure water filed in plastic bottles and capped with plastic caps, mineral water processingmonoblock with optional capacity from 1000bph to 20000bph. mineral water processing monoblock uses frequency changer to control the main machine motor.And mineral water processing monoblock has an output number indicating function which is easy to control the adjustment of the output.



Mineral water processing monoblock -Specification



Mineral Water Processing Line



Mineral Water Process Technical parameter:

 Mode

CGF12-12-6

CGF18-18-6

CGF24-24-8

CGF32-32-10

CGF40-40-10

Washing heads

12

18

24

32

40

Filling heads

12

18

24

32

40

Capping heads

6

6

8

10

10

capacity(b/h)
500ml

2000-4000

5000-8000

9000-12000

13000-15000

16000-20000

Power motor(kw)

2.2

3.5

4.5

5.5

5.5



Mineral Water Processing Line

Mineral Water Processing LineMineral Water Processing LineMineral Water Processing LineMineral Water Processing Line

Mineral Water Processing LineMineral Water Processing Line
