Home > Packaging & Printing > Packing Machinery > Filling Machine > Full Mineral Water Production Line
Full Mineral Water Production Line
US$ 65,000 - 70,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plant Water BottlesUS$ 65,000 - 68,000MOQ: 1 Piece -
Plastic Liquid Water Filling MachineUS$ 15,000 - 18,000MOQ: 1 Piece
-
Small Water Filling PlantUS$ 16,000 - 20,000MOQ: 1 Piece
-
Water Bottle Washing Filling Capping MachineUS$ 55,000 - 58,000MOQ: 1 Piece
-
Water Bottling LineUS$ 19,000 - 24,000MOQ: 1 Piece
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Glass, Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220v 380v
Power
10.68kw
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
CGF40-40-12
Dimension(L*W*H)
4.2x2.4x2.35m
Weight
9.5 tons
Certification
CE,ISO
After-sales Service Provided
Engineers available to service machinery overseas

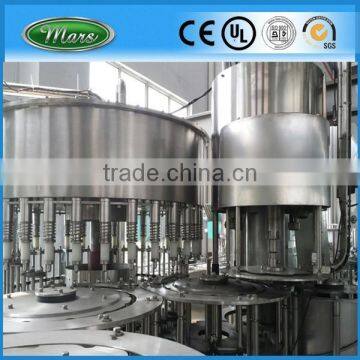

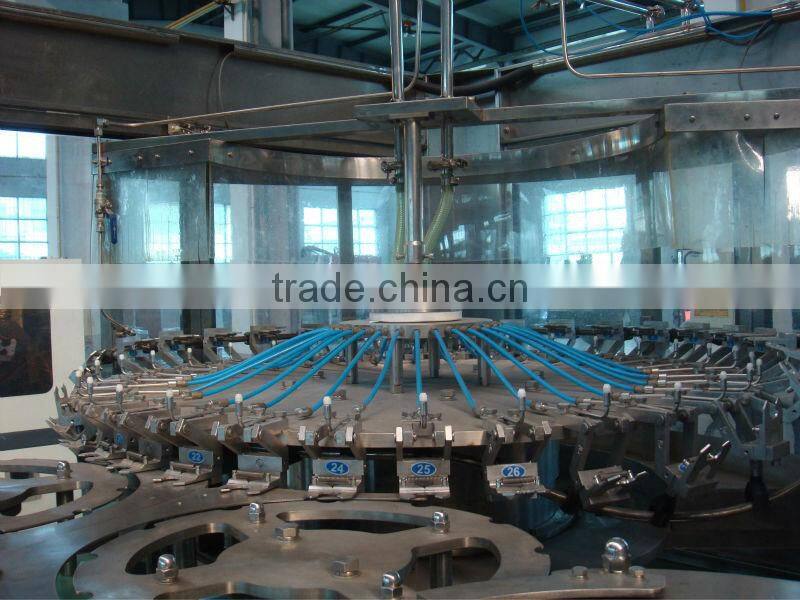

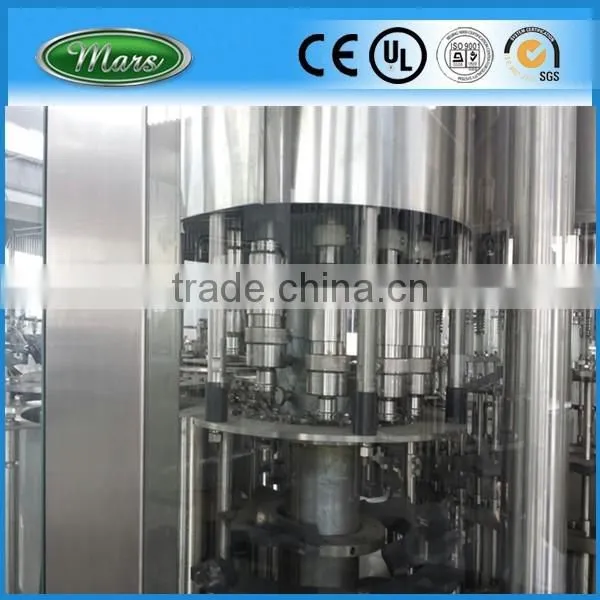

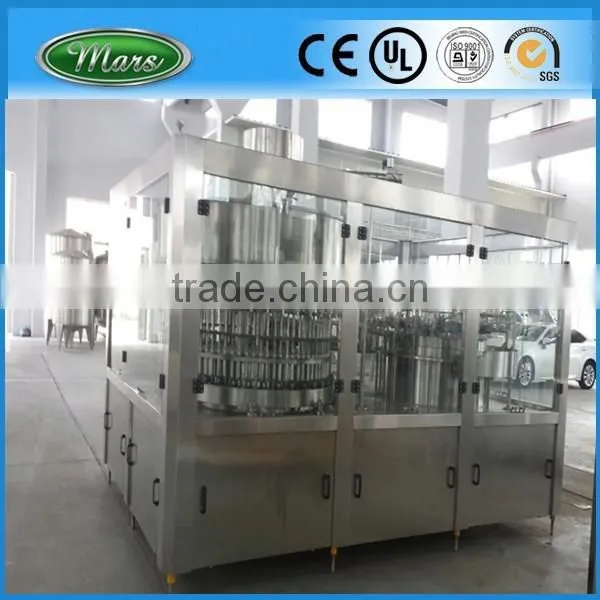

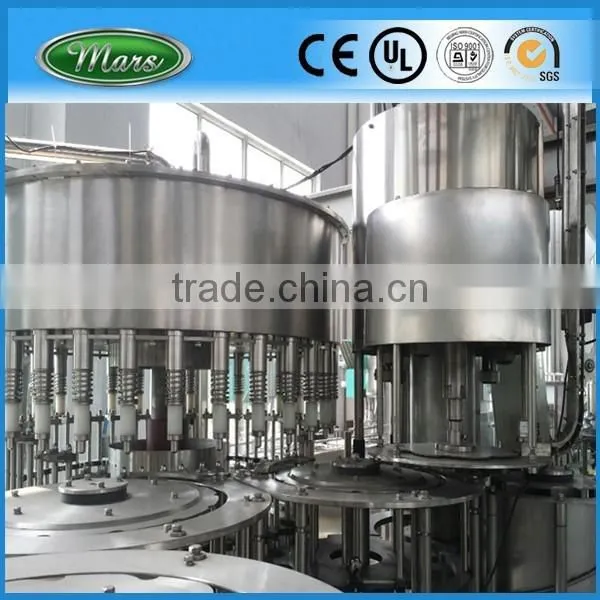

Full Automatic Mineral / Pure Water Production Line
Drinking Water Production Line-user:
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.
The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Full Mineral Water Production Line Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Full Mineral Water Production Line Technical parameters:
Model |
Washing heads |
Filling heads |
Capping heads |
Capacity (b/h)500ml |
Power (KW) |
overall dimension(mm)
|
CGF16-16-6 |
16 |
16 |
6 |
4000-5000 |
2.2 |
2400X1800X2400 |
CGF18-18-6 |
18 |
18 |
6 |
5000-6000 |
3.1 |
2500X1850X2400 |
CGF24-24-8 |
24 |
24 |
8 |
8000-10000 |
3.8 |
2900X2150X2400 |
CGF32-32-12 |
32 |
32 |
12 |
11000-12000 |
5.6 |
3600X2500X2400 |
CGF36-36-12 |
36 |
36 |
12 |
13000-14000 |
6.5 |
3750X2600X2400 |
CGF40-40-12 |
40 |
40 |
12 |
15000-16000 |
7.2 |
4000X2800X2400 |
Full Mineral Water Production Line
