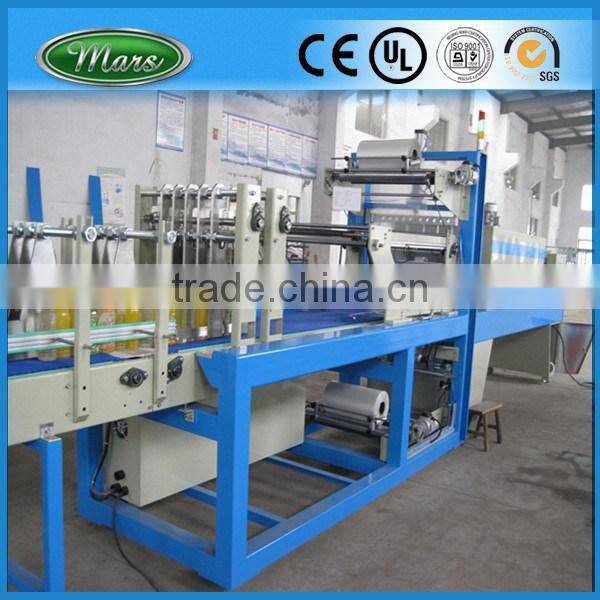

Bundle Packing Machine
Characteristic:
- Specially designed for the full automatic packaging production line of beer, beverage, pure water, fruit juice, dairy products, etc.
- With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.
- Using advanced constant temperature membrane theat binding technology in the world with clear and secure seal.
- The quick seal cooling structure guarantee that the seal has higher strength even if under high speed production condition.
- Adopt with PLC automatic program circulation control with stable and reliable performance.
- The original imported guide bar cylinder guarantee correct operation and durable.
- The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.
- All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
- Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
- 3 layers of heat insulation treatment with good insulting property, quick temperature rise and energy saving.
- The enhanced cooling shaping passage can quickly turn the packing membrane into high strength status that is conveniently stored and transported.
- It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.
Main Technical Parameter:
Model: SP-20
Packing speed: 18-22Packagers/Min
Suitable bottle material: glass bottle, pop-top can, PET bottle and material which can bear 200°C.
Suitable bottle specification: bottle diameter: Φ60-120Φmm
Bottle height: ≤340mm
Packing material: PE Hot shrink film
thickness: 0.03-0.10mm max. film width: 600mm
Packing method: two sides sealing while two sides open
Working pressure: ≥0.6Mpa(dry air),gas consumption: 25mP3P/H
Suitable voltage: 50Hz/380V, 3 phase
Power: 28Kw
Weight: 1500Kg
Conveyor height and bottle inlet direction, size: according to customer request
Equipment safety reach to standard requirement.
Main Parts Origin:
No. | Parts name | Model | Qty | Brand |
1 | PLC | XC3-32T-E | 1 | MITSUBISHI |
2 | Touch screen | TP560-L | 1 | MITSUBISHI |
3 | Inverter | 3 phase, 0.75KW | 1 | MITSUBISHI |
4 | Contactor | 3TB40 | 4 | SIEMENS |
5 | Electric door lock | 3TB44 | 1 | SIEMENS |
6 | Thermo relay | 1.8A | 3 | SIEMENS |
7 | SSR | SAP 4020D | 1 | DONGQI,HONGKONG |
8 | Temperature control instrument | TE7-RB10 | 1 | DONGQI,HONGKONG
|
9 | Motor |
|
| SIEMENSE BEIDE |
10 | Pneumatic parts |
|
| AIR TAC |
11 | Intermediate relay | HH52P 24VDC | 2 | OMRON |
12 | Proximity switch | PR12-4DN | 3 | AUTONICS |
13 | Photo electricity switch | BR100-DDT | 3 | AUTONICS |
14 | Magnetic switch | CS1-F | 5 | AIRTAC |
15 | photoelectric cell | ZT-1200N | 1 | OPTEX FA |
16 | Mirror photo electricity | BM1M-MDT | 1 | AUTONICS |
17 | AIR SWITCH | DZ47 C6 2P | 3 | DELIXI |
18 | Alarm light | YT703 | 1 | |
19 | Switch power | HS-350-24 | 1 | TAIWAN |
Product show
