Bottle Shrink Film Packing Machine
Small Water Bottle shrink film packing machine:
The machine has been designed for no tray, no cardboard case, packing with low cost in the operations, it is widely used in food, beverage, chemical and office industries.
Character of shrink film packing machine:
ü PLC programmable procedure control system, with colorful touch-screen control panel
ü Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling automatically
ü Capacity is adjustable through adjust the convey speed
ü The height of the conveyer shall be made towards client's demand, can handle 6, 9,12,15, 18, 20, 24 bottle per package
ü Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature controller that apparently saves energy.
ü The height of the conveyer shall be made towards client's demand.
ü Heavy duty coated iron machine construction
ü It applies wing shape stainless steel heating system, which is durable for long time use.
Technological Parameter of shrink film packing machine:
Item | Parameter |
Capacity: | 6-20bundles per minute |
Suitable to Plastic Thickness | 0.03- 0.15mm |
Max packing dimension | L×W×H(mm)600×400×350 |
Heating Tube Temperature | 260 °C adjustable |
Shrink time/temperature | 0.5-1.5s/0-260°C |
Working Air Pressure | 0.6-0.8Mpa, 0.8cube meter air per minute |
Sealing Time needed & temperature: | 0.5 to 1.5 sec, 140oC-160oC |
Machine Dimension L×W×H(mm) | L5500mm×W3200mm×H2100mm |
Total Power: | 19Kw |
Power Supply | 380V 50hz 3phase |

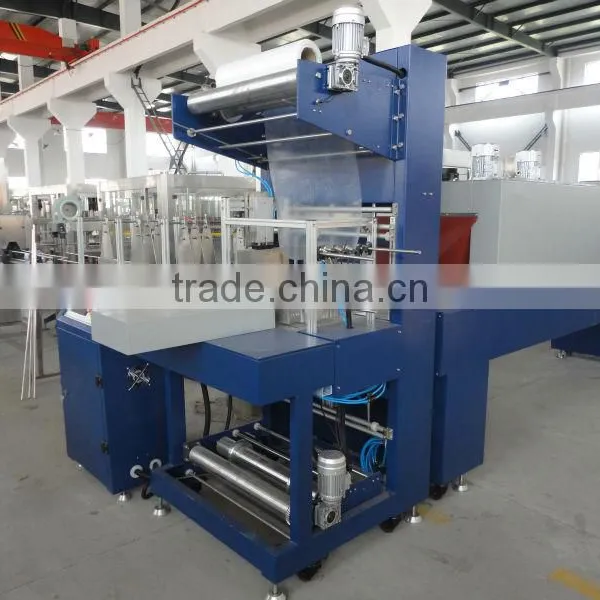

Reference pictures of Full-automatic PE film wrapper shrinker:
