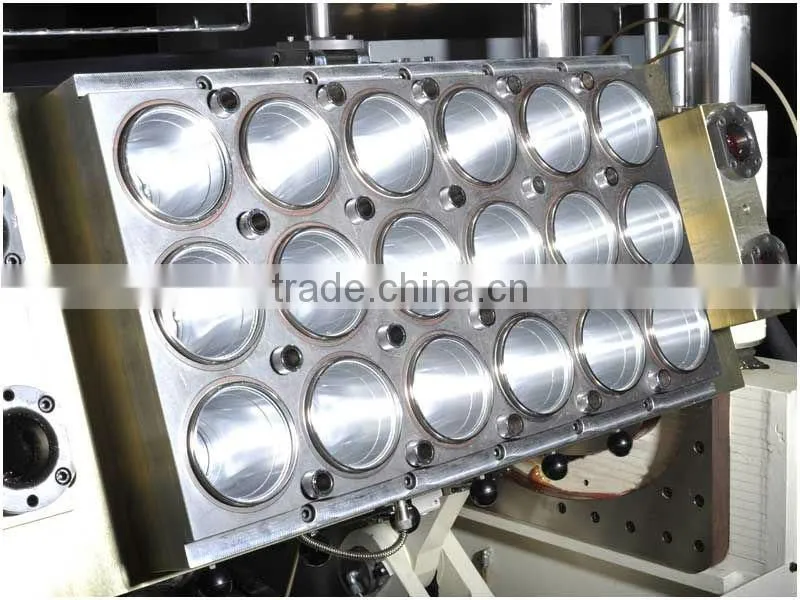

Cup Molding Machine
I. Main technical parameters:
1 | Material | PP,PS,PET,PVC,ABS,Degradable material |
2 | Thickness of sheet | 0.3-2.0mm |
3 | Width of sheet | 750mm |
4 | Area of forming | 750×500mm |
5 | Depth of forming | ≤160mm |
6 | Working efficiency effefficiencyefficiency | ≤25/min |
7 | Heating rated power | 110kw |
8 | Main motor rated power | 15kw |
9 | Sheet sending motor | 4kw |
10 | Power supply | 380V/50HZ(three-phase four-wire) |
11 | Air pressure | 0.6-0.8Mpa |
12 | Air consumption | 4500~6000 L/min |
13 | Water consumption | 40-60L/min |
14 | Total weight | 6000kg |
II. Structure Characteristic for Cup Molding Machine
1. Hydraulic transmission structure, smooth operation and easy maintenance;
2. Four-column structure ensures more stable forming precision;
3. Chain retreat device makes mould convenient to change;
4. The whole machine adopts PC technology digital control.
III. Mainly Purchased Parts for Cup Molding Machine
Name | Brand or origin | Remark |
Inverter | INVT, China | |
Intermediate relay | Omron | |
Single-phase voltage regulating module | Beijing Lingtong | |
Ceramic Heater | China | |
Heating element with thermocouple | China | |
Proximity Switch | Omron | |
Air switch | Schneider | |
Button | Schneider | |
Thermal relay | Schneider | |
Selector switch | Schneider | |
Temperature Controller | Jiangsu Gaoqi | |
Cylinder | Fangda | |
Tensile valve | SMC | |
Forming valves | SMC | |
Reducer for sheet sending | Taiwan | |
Human-computer interface | Taiwan |
