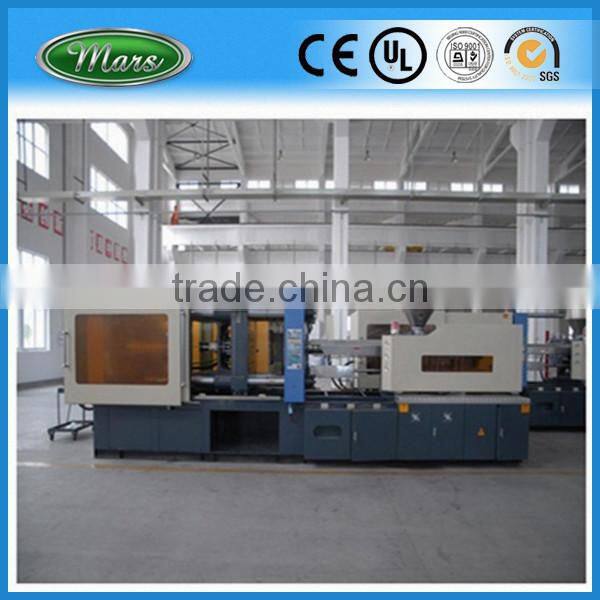

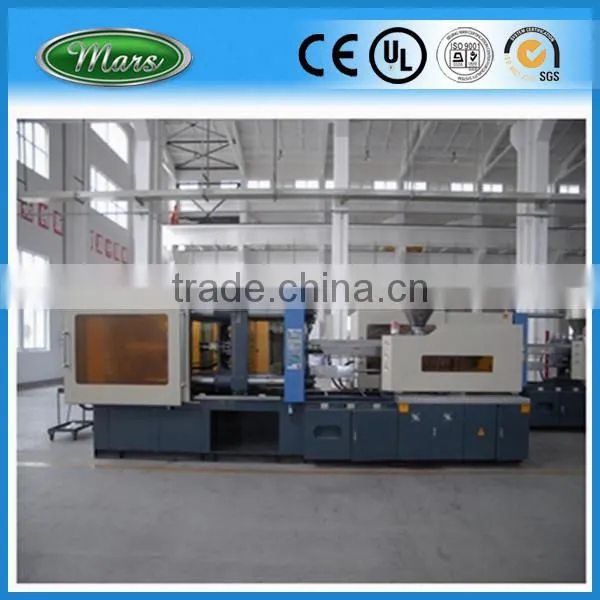

Injection Machine for Plastic
This unit of our pet preform injection machine composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.
CLAMPING
1. FEA designed double-toogle five-joint clamping machinery
2. High rigidity mould platen with enlarged space between tie bar, fit for larger scope of the moulds
3. Large moving die stroke with smooth & fast motion
4. Electrical & mechanical safety protection device
5. Automatic centralized lubrication system
6. Gear regulating the mould driven by oil motor
INJECTION UNIT
-Twin cylinder balanced injection system
-High torque oil motor directly drives screw to complete the pre-injection
-Specific screw and barrel designs are available for processing different material requirements to ensure the production quality
-Multiple-stage control for pressure, speed, position to inject, keep pressure, charge material.
CONTROL UNIT
-It utilizes the plastic injection moulding machine special-purpose computer with rapid response, interactive interface
-Regulate barrel temperature deviation automatically
-Multiple-unit plastic moulding data memory system
-Main electric components with world famous brand ensuring safety performance of electric devices
-It real-timely monitors various actions and gives automatic warning for its defects.
-Clamp, injection, ejection action can choose linear displacement sensor for its control.
HYDRAULIC UNIT
-Main hydraulic components with world famous brand, ensuring stable quality of the machine.
-Low noise & rapid response oil pump system
-Adopt the cooling water flow distributor, controlling the cooling temperature easily.
Technology Parameter:
| ZS3580 | A | B | C | ||
| Injection Unit | Screw Diameter | mm | 60 | 65 | 70 |
| Screw L/D Ratio | L/D | 22.8 | 21 | 19.5 | |
| Cylinder head Volume | cm3 | 814 | 955 | 1108 | |
| Shot Weight | g | 740 | 869 | 1008 | |
| Plastic Rate(PS) | g/s | 38 | 52 | 62 | |
| Injection Rate(PS) | g/s | 245 | 288 | 334 | |
| Injection Pressure | Mpa | 198 | 169 | 145 | |
| Clamping Unit | Clamping Force | KN | 3580 | ||
| Max mould Opening Stroke | mm | 660 | |||
| Mould Thickness(Min-Max) | mm | 250-700 | |||
| Distance Between Tie-Bars | mm | 660×660 | |||
| Ejection Force | KN | 62 | |||
| Ejector Stroke | mm | 160 | |||
| Others | Pump Motor Power | KW | 30 | ||
| Heating capacity of screw cylinder | KW | 16.55 | |||
| Oil tank capacity | L | 655 | |||
| Rated Pressure of Oil pump | Mpa | 16 | |||
| Machine Dimensions (L*W*H) | m | 6.85×1.75×2.24 | |||
| Machine Weight | T | 11.4 | |||
| Mould Orientation Ring Diameter | mm | Φ160H7 | |||
| Sphere Diameter of Nozzle | mm | SR15 | |||
Product show
