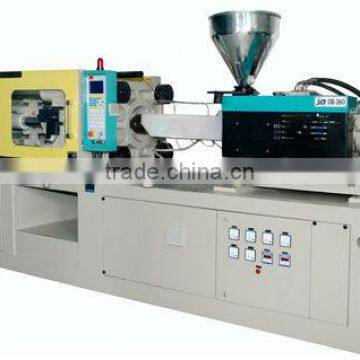

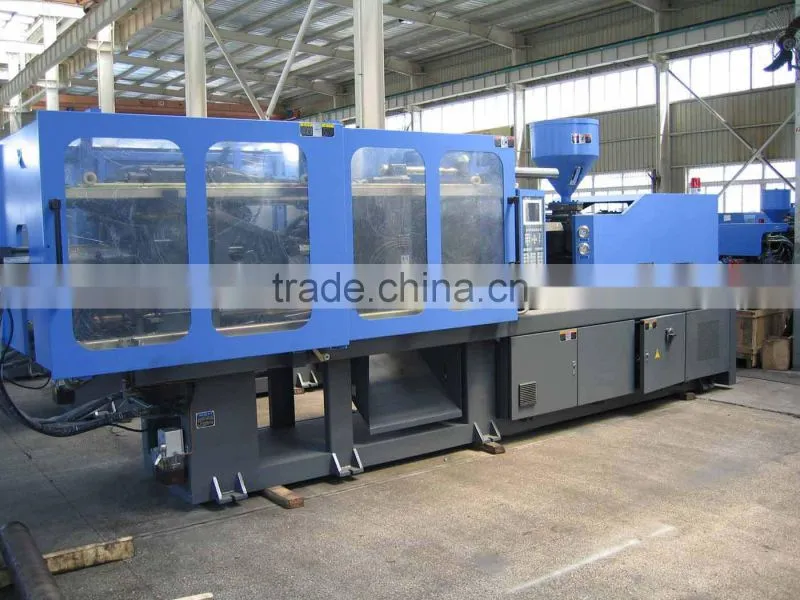

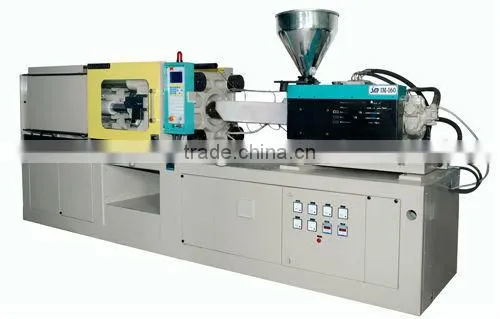

PET Preform Injection line
Pet preform injection line was including pet preform injection machine,PET resin dehumidifying dryer conveying set, cooling chiller, preform mold. It could good at produced very transparent preform without bubble.
1.PET preform Injection Molding Machine technical parameters:
| Unit | ZS-500A PET/ 500Ton | |
ITEMS | PET Special Injection rigid screw | ||
INECTION UNIT | Screw Diameter | mm | 80 |
Screw L/D Ratio | 24.0 | ||
Shot Size(Theoretical) | cm3 | 2005 | |
Injection Weight | g | 2346 | |
Injection Rate Into Air | cm3/s | 435/520 | |
Injection Pressure | bar | 1639 | |
Injection Stroke | mm | 399 | |
Screw Speed | rpm | 0-153/ 0-183 | |
CLAMPING UNIT | Clamping Force | KN | 5000 |
Clamping Stroke | mm | 770 | |
Space Between Tie Bar | mm | 800×800 | |
Max. Mold Height | mm | 800 | |
Min. Mold Height | mm | 250 | |
Eject Stroke | mm | 231 | |
Eject Force | KN | 152 | |
No. Of Ejector Pins | piece | 13 | |
OTHERS | Max. Pump Pressure | MPa | 16 |
Pump Motor Power | KW | 45.0 | |
Heater Power | KW | 35.0 | |
Hopper Capacity | Kg | 100 | |
Oil Tank Capacity | L | 900 | |
Machine Dimension(L×W×H) | m | 8.4*1.8*2.6 | |
Machine Weight | T | 20.3 | |
Main parts photos,
2.Standard Features
With deep experience and in accordance with PET preform characteristics, we have improve a lot to be fit for PET preform production.
- Professional PET screw and barrel with L/D 1:23 have higher mixing and plasticizing abilities. High torque screw driving system ensures screw’s injection speed.
- Big channels for cooling water regulating meet requirements for mold cooling.
- Large eject force ensures multi cavity PET performs to be taken out efficiently.
- PID controlled barrel with exact temperature.
- We supply all PET preform and bottle production “Turn-Key” solution.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines; all the products are made by our technical team.
Q: What is the ability of your factory?
A: About injection molding machine, we could produce30-50 sets machines per month.
About blow molding machine, we could produce 10sets machine per month
Q: Do you have any technical supports about your products?
A: We have had long term collaboration with Canada, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q: Do you have any other service about your products?
A: We have a lot of experiences on making complete “Turn-Key” projects and specifications for our clients. Also we have a fixed service system
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied us at first.
