PET Bottle Blowing Machine Price
Machine Featuers
1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold-conversion,repairing and maintenance.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access,rapid motion;reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mold.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel; program protected by code lock
Technical Parameter
| TYPE | ITEM | BM-A2 | BM-A3 | BM-A4 | BM-A6 | BM-S2 | BM-S3 |
| CONTAINER | Number of cavity | 2 cavities | 3 cavities | 4 cavities | 6 cavities | 2 cavities | 3 cavities |
| Theoretical output | 2600-3200 pcs/hr | 3200-3800 pcs/hr | 5500-6000 pcs/hr | 7000-8000 pcs/hr | 2300-2600 pcs/hr | 2800-3200 pcs/hr | |
| ntainer volume | 1L | 1L | 1L | 1L | 2L | 2L | |
| Max.neck diameter | 65mm | 65mm | 65mm | 28-30mm | 80mm | 80mm | |
| ntainer diameter | 65mm | 65mm | 65mm | 60mm | 105mm | 105mm | |
| ntainer height | 230mm | 230mm | 230mm | 260mm | 300-330mm | 300-330mm | |
| ELECTRICAL SYSTEM | Number of lamp | 21pcs | 28pcs | 35pcs | 56pcs | 27pcs | 36pcs |
| Max.heating power | 21kw | 28kw | 35kw | 34kw | 27kw | 36kw | |
| Installation power | 26kw | 32kw | 40kw | 44kw | 32kw | 41kw | |
| Actual power consumption | 14kw | 18kw | 22kw | 24kw | 18kw | 22kw | |
| AIR SYSTEM | Operatating pressure | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² | 7-8kg/cm² | 7-9kg/cm² | 7-9kg/c m² |
| Low pressure consuming | 1000Ltr/min | 1200Ltr/min | 1600Ltr/min | 1600Ltr/min | 1200Ltr/min | 1400Ltr/min | |
| Blowing pressure | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | 25-35kg/c m² | |
| High pressure consuming | 1500-2000 Ltr/min | 2000-2200 Ltr/min | 2200-2500 Ltr/min | 2000-2200 Ltr/min | 2000-2500 Ltr/min | 2000-3000 Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
| Temperatuer | 10ºC | 10ºC | 10ºC | 10ºC | 10ºC | 10ºC | |
| Consuming | 5600kcal/hr | 5600kcal/hr | 5600kcal/hr | 8000kcal/hr | 5600kcal/hr | 7600kcal/hr | |
| Flow rater | 30Ltr/min | 30Ltr/min | 30Ltr/min | 88Ltr/min | 30Ltr/min | 45Ltr/min | |
| MACHINE | Machine dimension | 2.3x1.5x1.7(m) | 2.7x1.5x1.7(m) | 3.0x1.5x1.7(m) | 5.2x2.0x2.0(m) | 2.4x1.5x1.7(m) | 2.7x1.5x1.7(m) |
| Machine weight | 1.8ton | 2.5ton | 2.8ton | 5.0ton | 2.0ton | 2.6ton |
Machine parts
Pneumatic part |
valve |
SMC |
cylinder | ||
Electric part |
PLC |
SIEMENS |
Operating system |
SIEMENS |
|
Relay |
OMRON |
|
Infrared thermometer |
America raytek |
|
servo motor |
Schneider |

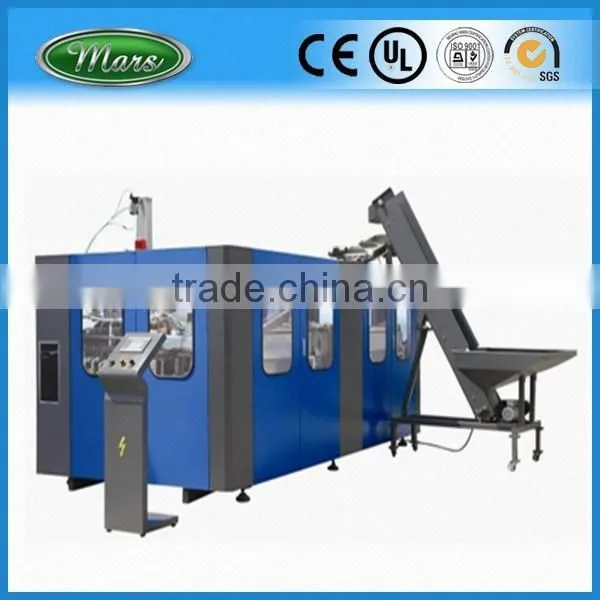

Product show
