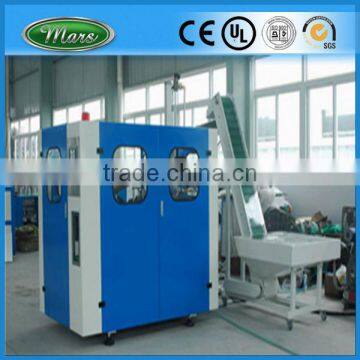

Automatic PET Bottle Blow Moulding Machine /PET Bottle Blow Machine
Brief Introduction:
Automatic PET Bottle blow molding / moulding machine can blow the maximum capacity of the products is 2L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics ,wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc
Features:
1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold conversion,repairing and maintenance. 3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access,rapid motion;reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mold.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel; program protected by code lock
6000BPH Automatic PET Bottle Blow Moulding Machine /PET Bottle Blow Machine
Technical Parameters:
| General Information | BM-A1 | BM-A2 | BM-A4 | BM-A6 |
| Clamping Force | 150KN | 180KN | 370KN | 565KN |
| Clamping Stroke | 120~175mm | 120~175mm | 120~175mm | 80~130mm |
| Max Strecthing Stroke | 370mm | 370mm | 370mm | 370mm |
| Bottom Moving Stroke | 70mm | 70mm | 70mm | 0~70mm |
| Number of Cavities | 1 | 2 | 4 | 6 |
| Theoretical Output | 1000BPH | 2000BPH | 4000BPH | 6000BPH |
| Max Mould Thickness | 250mm | 250mm | 250mm | 300mm |
| Space Between Tie Bras | 300*380mm | 400*380mm | 640*380mm | 760*380mm |
| Voltage Standard | 380V 3PH 50Hz or special order | |||
| Number of Heating Zone | 2 Sections | 2 Sections | 4 Sections | 4 Sections |
| Total Power | 20KW | 28KW | 60KW | 75KW |
| Max Volume of Contanier | 6.0L | 1.5L | 1.5L | 1.5L |
| Neck Diameter Range | 16~38mm | 16~38mm | 16~38mm | 16~38mm |
| Max Diameter of Contanier | 110mm | 110mm | 110mm | 110mm |
| Max Height of Contanier | 380mm | 380mm | 380mm | 360mm |
| Low Air Compressor | 10Bar | 10Bar | 10Bar | 10Bar |
| High Air Compressor | 30~40Bar | 30~40Bar | 30~40Bar | 30~40Bar |
| Blow Molding Machine | 1.8*1.5*2.0m | 2.1*1.5*2.0m | 2.55*1.5*2.0m | 4.25*1.5*2.0m |
| Preform Auotloader | 1.1*1.2*2.2m | 1.1*1.2*2.2m | 1.1*1.2*2.2m | 1.1*1.2*2.2m |
| Net Weight | 1.8T | 2.0T | 3.5T | 4.0T |
Product show
