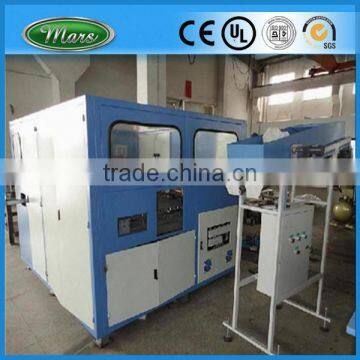

PET Stretch Blow Molding Machine

Name: PET Stretch Blow Molding Machine
Brand: Mars
SKU: 141355570
Availability: InStock

US$ 45,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Bottle

Plastic Processed:

PET

Zhangjiagang Mars Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Bottle

Plastic Processed PET

Blow Moulding Type Stretch Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name Mars

Model Number BM-A4

Voltage 380V

Power(W) 49Kw

Dimension(L*W*H) 2000*950*2480mm

Weight 3600Kg

Certification CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

PET Stretch Blow Molding Machine

BM-A4 Full automatic bloing bottle machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Reasonable design, full automatic control, save power and labor.
Adopt high quality components.
Feeding system carries the performs by robot automatically.
Infrared oven heater adopts the quartz lamp to heat the PET tube.
Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits.
We have perfect service after sales.

PET Stretch Blow Molding Machine Specification:

Main part:
Pneumatic part	Valve	FESTO/SMC
Pneumatic part	Cylinder	FESTO/SMC
Electric part	PLC	LG
	Operating system	LG
	Relay	OMRON
	Infrared thermometer	America Raytek
Note	All of the electrical components adopts CE/UL / CCC approved international advanced high-tech product.
Main parameter:
Model	BM-A4
Productivity	Depend on bottle design	3500-3800 Pcs/Hour
Product type	Body diameter	≤100mm
	Height	≤310mm
	Neck diameter	18-38mm
Mold	Cavity	4 cavity
	Mold thick	240mm
	Mold	260240370mm
Main machine power	Electrical source power	380V/220V 50/60Hz
	Rated Power	49KW
	Really use power	10-15KW
Air source	LP air compressor	1.6m3 /min 10Kg
	HP air compressor	2.0m3 /min 30Kg
	Air dryer	2.0m3 /min 30Kg
Cooling water	Cooling water	15L/Min
Size	LWH	191018581935mm
Size	Weight	3600Kg
Auxiliary equipment( pre-form unscrambler)	LWH	20009502480mm
Auxiliary equipment( pre-form unscrambler)	Weight	250Kg
Resin available		PET
