2015 new centrifugal concentrator gold
1.Brief Introduction to centrifugal concentrator gold
The pulsating sluice box is also called instigating sluice box and agitating sluice box.
It is specially developed for gold separating and mining according to the mining practice of placer gold. This kind of gold sluice box is researched Chinese gold research institute and improved by us for many years. Over 1000 units of the machine has been sold out which are in application in 10 different countries and appreciated highly by our customers from Bolivia, Indonesia, and Australia,Canada,South Africa,Malasia.Compared with centrifugal concentrator,it is much more cheap and easier to be operated.
2.Specification for centrifugal concentrator gold
| Capacity | Power | Water Consumption | Recovery rate | Dimension | Feeding Particle Size | Gold size |
| 30 tons per hour | 1.5kw | 40 m3 per hour | 80% | 3.5m×1.5m | ≤8mm | under 8mm |
Type | YL-300 | YL-600 | YL-1000 | YL-1200 |
Capacity(T/Hr) | 2-3 | 15-20 | 40 to 50 | 80-100 |
Power | 2.2kw | 5.5kw | 11kw | 18.5kw |
Water Consumption (m3 per hour) | 2 to 5 | 20 | 50 | 100 |
Net Weight | 0.5T | 1.2T | 4.5T | 8.5T |
Dimension(mm) | 1200x1200x1400 | 1700×1700×1800 | 2300×2300×2300 | 2100×2100×2700 |
3.Pictures and Applications of the centrifugal concentrator gold

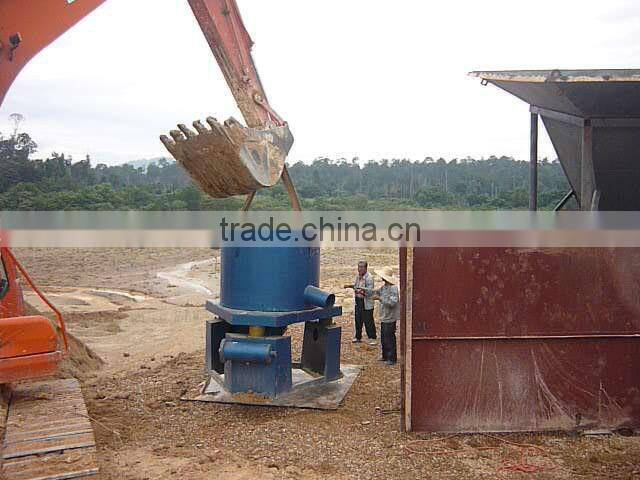

Centrifugal concentrator gold working in Malaysia
Model YL-600 centrifugal concentrator gold
Gold centrifugal concentrator used on land gold washing plant.
Gold separated by pulsating sluice box
