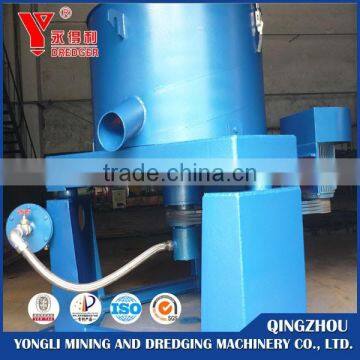

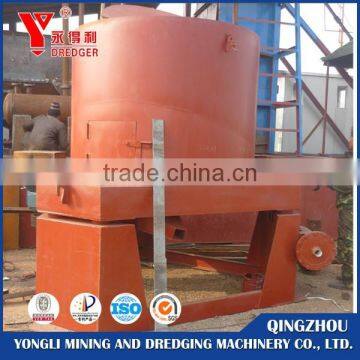

Placer Gold Jig Machine
Specification
Type | YL-300 | YL-600 | YL-1000 | YL-1200 |
Capacity(T/Hr) | 2-3 | 15-20 | 40 to 50 | 80-100 |
Power | 2.2kw | 5.5kw | 11kw | 18.5kw |
Water Consumption (m3 per hour) | 2 to 5 | 20 | 50 | 100 |
Net Weight | 0.5T | 1.2T | 4.5T | 8.5T |
Dimension(mm) | 1200x1200x1400 | 1700×1700×1800 | 2300×2300×2300 | 2100×2100×2700 |
Product Introduction
Suitable for processing the size not too big material, generally between 2-0.074mm. Widely used in tin, iron, gold, silver, tungsten, manganese ore dressing. The jig is the fixed sieve type, suitable for separating metal ores, such as tungsten, gold bearing placer tin, selection, which can be used for selection of fine materials, but also can be used for selection of coarse material, the maximum feed size is 6-8mm, but in some cases separating placer, maximum particle size is 12mm.
Jigging belongs to the deep trough sorting operation, it uses water as separation medium, the proportion of the difference, using the selected minerals in the gangue separation, jigging machine belongs to the diaphragm, stroke and frequency according to the proportion of minerals, can be flexibly adjusted, widely used for tungsten, tin, alluvial gold, hematite, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other metal gravity separation
Advanced
1. Easy but high efficient structure with machanical or electromagnetical auto discharged of gold ore facility to prevent the gold concentrate from loosing .
2. Dismountable inner tank design ,easy to clean and change.
3. Stainless steel extends the lifetime of inner tank
4. The backwash water applies with tangent line water jet ,which increase the recovery efficiency of gold and other valuable minerals.
5. Bigger models of centrifugal concentrator are applied with shock mitigation system to keep the stable operation ,hence prolongs the lifetime of the equipment .
6. Bigger models of centrifugal concentrator are equipped with electricity control box and frequency transformer.
7.All models are equipped with water filtering system.
Packaging Detail: 40HQ Container for centrifugal gold concentrator
Delivery Detail: 5 working days
We have all kinnds of product except for centrifugal comcentrator ,For example:Bucket type sand dredger,Cutter suction dredger,Gold and diamond washing plant . Please let us know if you need what kind of products ,We will be the best quality service to cooperate with you .
