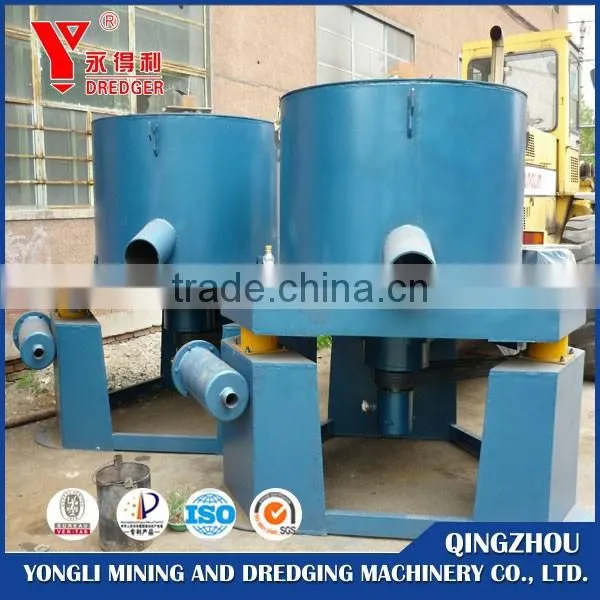

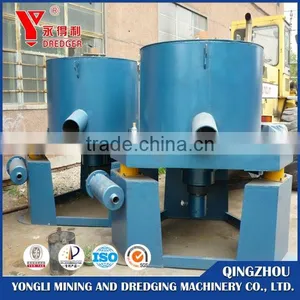

2015 New centrifugal gold concentrator
Introduction
1. Easy but high efficient structure with machanical or electromagnetical auto discharged of gold ore facility to prevent the gold concentrate from loosing .
2. Dismountable inner tank design ,easy to clean and change.
3. Stainless steel extends the lifetime of inner tank
4. The backwash water applies with tangent line water jet ,which increase the recovery efficiency of gold and other valuable minerals.
5. Bigger models of centrifugal concentrator are applied with shock mitigation system to keep the stable operation ,hence prolongs the lifetime of the equipment .
6. Bigger models of centrifugal concentrator are equipped with electricity control box and frequency transformer.
7.All models are equipped with water filtering system.
Specification
Capacity | Power | Water Consumption | Recovery rate | Dimension | Feeding Particle Size | Gold size |
30 tons per hour | 1.5kw | 40 m3 per hour | 80% | 3.5m×1.5m | ≤8mm | under 8mm |
Specification for other centrifugal gold concentrator
Type | YL-300 | YL-600 | YL-1000 | YL-1200 |
Capacity(T/Hr) | 2-3 | 15-20 | 40 to 50 | 80-100 |
Power | 2.2kw | 5.5kw | 11kw | 18.5kw |
Water Consumption (m3 per hour) | 2 to 5 | 20 | 50 | 100 |
Net Weight | 0.5T | 1.2T | 4.5T | 8.5T |
Dimension(mm) | 1200x1200x1400 | 1700×1700×1800 | 2300×2300×2300 | 2100×2100×2700 |
We have all kinnds of product except for centrifugal comcentrator ,For example:Bucket type sand dredger,Cutter suction dredger,Gold and diamond washing plant .
Please let us know if you need what kind of products ,We will be the best quality service to cooperate with you .
