China new design gold separating machine
1. Introduction to China new design gold separating machine

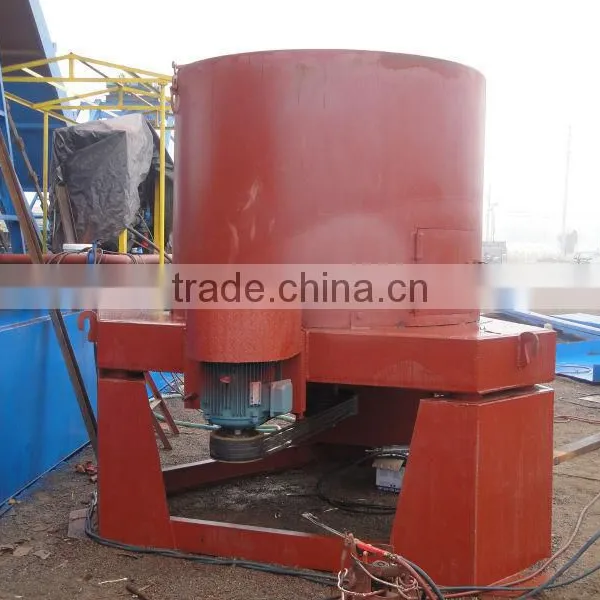

- YlCC1000 gold separating machine is gravity separation type concentrator.
- We design and manufacturer this kind of gold separating machine according to Nelson centrifugal type gold concentrator, which is the world class advanced seprator for gold.
- The recovery rate of it could only get as high as 90%, but the price is much lower than Nelson one.
- It separates the gold just by gravity difference between sand and gold and does NOT use any chemical, which is very environmental-friendly. After so many years of manufacturing, we improve it gradually according to our customers' feedback. For example, we improve the inner tank to be changable and the complete unit could work continuously without stopping processing. What's more, we improve the shock mitigation system. Welcome to visit our factory and see the quality of our gold centrifugal gold separating machine yourself.
Gold concentrates separated by gold separating machine

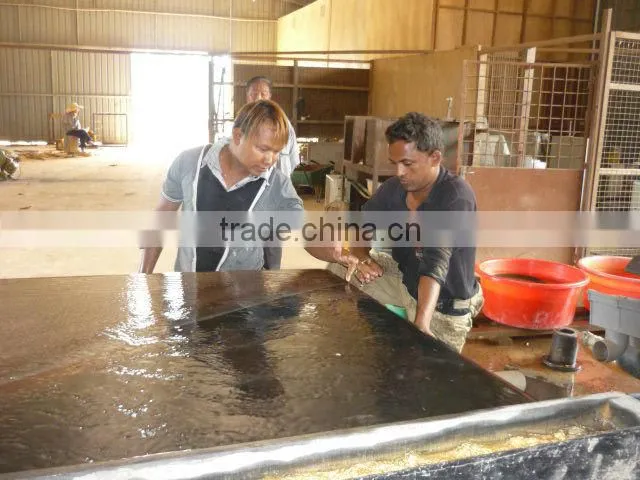

2. Technical specification for China new design gold separating machine--gold shaking table
Item | Coarse sand surface of table | Fine sand surface of table | Ore slime surface of table | |
| Length (mm) | 4450 | 4450 | 4450 |
| Dimension | Transmission end width (mm) | 1855 | 1855 | 1855 |
crude ore width (mm) | 1546 | 1546 | 1546 | |
Max. feeding size (mm) | 2 | 0.5 | 0.15 | |
Feed amount (t/h) | 30-60 | 10-20 | 15-25 | |
Feed density (%) | 25-30 | 20-25 | 15-25 | |
Stroke (mm) | 16-22 | 11-16 | 8-16 | |
Frequency ( f) | 45-48 | 48-53 | 50-57 | |
Water quantity added(t/h) | 80-150 | 30-60 | 10-17 | |
Horizontal obliquity (°) | 2°30′-4°30′ | 1°30′-3°30′ | 1°-2° | |
Longitudinal obliquity (%) | 1.4 | 0.92 | -- | |
Dressing Area (m2) | 7.6 | 7.6 | 7.6 | |
Cross-section Shape of table | Rectangular | Saw tooth | triangle | |
Motor Power (kw) | 1.1 | 1.1 | 1.1 | |
Transmission Mechanism | Eccentric linkage | |||
Type 300 gravity gold separating machine used for experiment
gold separating machine
Our other gravity gold seprators
We need to know more about your local working condition in order to offer a best solution for your project.
We would appreciate if you could provide information like the expecting productivity, dredging depth, discharge distance and so on.
That would help to judge what kind of dredger works most efficiently in your environment.
