Ore selecting mchine - mine selecting equipment series
1. Mining system: It is made up of the dredging bucket, chain, underwater big arm, upper and lower quadrangled wheel, active power, main reducer, main frame and other components.

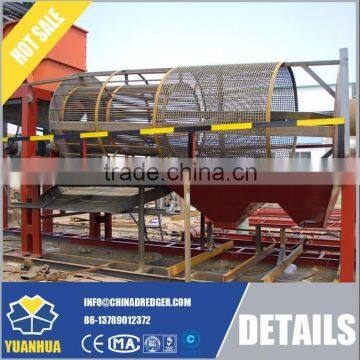

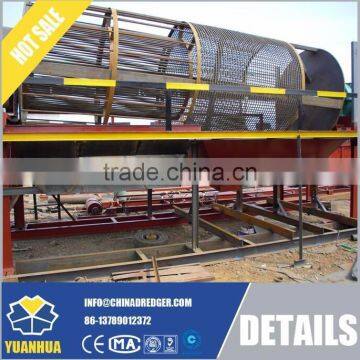

2. Mine Selecting Equipment: It is made up of cylinder rolling screen, gold selecting combinational chute and bucket, gold washing machine (roughing device), jig (cleaning equipment),it is used for the completion of ore washing, chose, crushing, screening, conveying, roughing selection, cleaned selection and other operations.
3. The Abandoned Tailings System: It is made up of the tape conveyor belt, chute, motor, reducer, it is used for the abandoned gravel and tailings
4. Water supply and ore delivery system: It consists of water pump, water pipes, the combinational chute and bucket and so on. It is used for water supply and ore conveying.
5. The winch system: it is made up of the big arm lifting winch, bow rope winch, raised anchor winch, sliding winch, etc., it is used for operating of the entering ship, changing ship, mooring ship and submarine sliding and lifting arm upgrade.
6. Gantry: it is made up of the channel steel, angle iron, iron plate, pulleys and other components, it is used for the connecting and fixing of catamaran, the rise and fall of underwater arm etc.

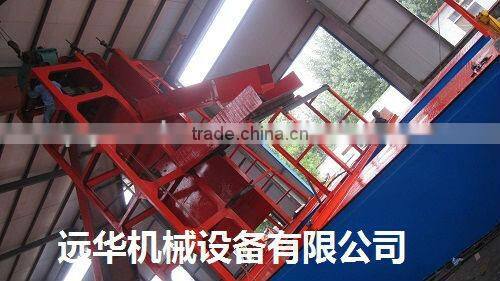

| Bucket Chain Iron Sand Dredger | |||||||
| Vibrating Screen and Roller Screen | |||||||
|
Magnetic Separation Equipments include Magnetic Separator(one or two )
|
|||||||
| Model | Hull Length | Bucket | Dredging Depth | Raw Ore Production | Fitted Power | Magnetic Separator | Gear Reducer |
| Width | (Dia.×L) | ||||||
| (m) | (m) | M³/h | kw | mm | |||
| WT-40 | 15×1.8 | 40-60 | 4-6 | 60-80 | 18 | 800×2400 | 500 |
| WT-60 | 18×2.0 | 60-80 | 6-8 | 60-80 | 22 | 800×2400 | 650 |
| WT-80 | 20×2.0 | 80-95 | 8-10 | 60-100 | 22 | 800×2400 | 750 |
| WT-100 | 24×20 | 95-110 | 12-15 | 60-100 | 2230 | 800×2600 | 750 |
| WT-110 | 28×2.0 | 110-115 | 15-20 | 60-100 | 30 | 800×2600 | 750 |
| Sand Pump Iron Dredger | ||||||
| Works in river course with no gravel | ||||||
| Great Production | ||||||
| Extract high Grade iron sand | ||||||
|
Ideal solution for iron mining and selecting project
|
||||||
| Model | Hull Length | Dredging Depth | Raw Ore Production | Fitted Power | Magnetic Separator | |
| Width | (Dia.×L) | |||||
| (m) | (m) | M³/h | kw | mm | ||
| WTC-10 | 6-18×1.5. | Sand Pump | 39974 | 3050 | 44-150 | 800×2600 |
| WTC-20 | 10-20×2.0 | Sand Pump | 39982 | 250300 | 75300 | 900×2600 |
